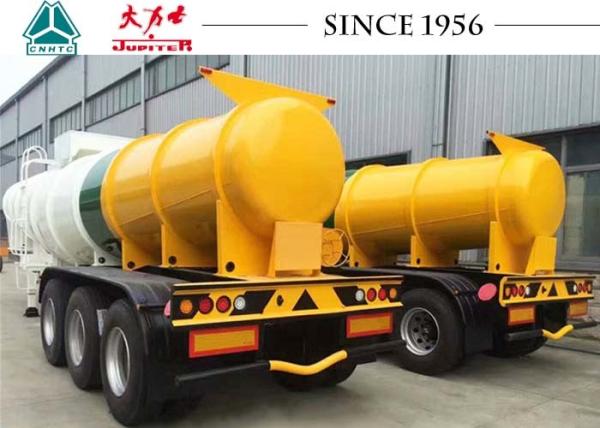

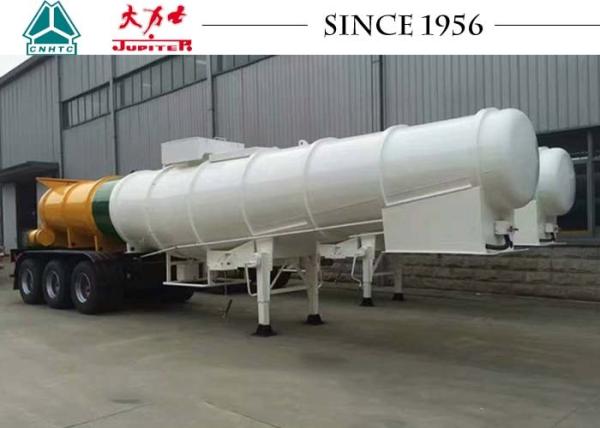

35 Tons Chemical Tank Trailer , Long Distance Acid Tanker Trailer With 3 Axles
35 Tons Chemical Tank Trailer , Long Distance Acid Tanker Trailer With 3 Axles
35 Tons Chemical Tank Trailer , Long Distance Acid Tanker Trailer With 3 Axles
35 Tons Chemical Tank Trailer , Long Distance Acid Tanker Trailer With 3 Axles
35 Tons Chemical Tank Trailer , Long Distance Acid Tanker Trailer With 3 Axles
35 Tons Chemical Tank Trailer , Long Distance Acid Tanker Trailer With 3 Axles
35 Tons Chemical Tank Trailer , Long Distance Acid Tanker Trailer With 3 Axles
35 Tons Chemical Tank Trailer , Long Distance Acid Tanker Trailer With 3 Axles
Specifications
Brand Name :
SUNSKY
Certification :
BV/CCC/CE/DOT/SGS
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 Units Per Month
Delivery Time :
30 TO 40 Working Days
Packaging Details :
No Packing
Materials :
Carbon Steel /Stainless Steel
Payload :
35 Tons
Kingpin :
2 Inch
Landing gear :
FUWA Brand
Tires :
315/80R22.5
Tank roof :
Anti-corrosion cover
Description

Heavy Duty 35 Tons 3 Axles Acid Tanker Trailer For Long Distance Transport​

I. Feature

1. The tanker body is designed to a V shape. The gravity center of tanker is lower, less residue .Make safer and high cost-efficient acid transport.

2. Strict control in the raw materials, use high quality and famous spare parts like BPW,Fuwa, Jost Brand. Ensure the best performance of acid tanker.

3. Use high quality carbon steel material and advanced welding technology. The acid tankers are well sealed and the tanker body is stronger than the secondhand UK trailer. Keep a longer lifespan and earn more money for your business.

4. High cost-efficient, V Shape tanker made a less residue when unloading. We can make any compartments as your request.

II. Application

Special design for zambia and africa market. Use for carry 98% sulfuric acid and other chemical cargo.

III. Specification

Style 3 Axles V Shape Acid Tanker Trailer
Dimension(L*W*H)mm: 11400*2500*3400
Payload(kgs): 30 to 40 Tons
Material Carbon Steel
Tare weight(kgs): 7500 to 9500 KGS
Effective capacity: 18 to 22 cbm
Thickness

6mm for shell , 8mm for dish
Medium: sulfuric acid
Kingpin 2” bolt-in
Landing gear 19”
Tire size 315/80R22.5 (13sets)
Rim size 9.00*22.5 (13sets)
Axle BPW Brand /Fuwa Brand, Germany Type/ Ameircan Type
Leafs spring Spring Suspension
Brake system Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Discharge valve DN100mm discharge valve with cover
Manhole European standard Φ500 with air valve
Spill boxes Spill boxes with vent valves, Drainage pipes fitted
Tank roof Anti-corrosion cover
Discharge hose 2 units anti-corrosion hose on both ends

IV. Quality guarantee

1.Two years warranty terms for the I beam, 3 to 6 month warranty for the suspesnion, axle etc.

2. Spare parts support services.

3. Easily broken parts will be delivered with trailers
