ADR Standard Fuel Tanker Trailer 45000 Liters Capacity With Airbag And Lifting
ADR Standard Fuel Tanker Trailer 45000 Liters Capacity With Airbag And Lifting
Specifications
Brand Name :
SUNSKY
Certification :
ISO9001;CCC;ADR
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Unit Per Month
Delivery Time :
35 Working Days
Packaging Details :
No Packing
Material :
Q345B Carbon Steel
Suspension :
3 axles with spring and 1 axles with airbag and lifting
Axles :
BPW brand 13 tons
Certificate :
ISO 9001,ADR
Dimension :
12300*2500*3700
Volume :
45 m³
Description

ADR Standard 45000 Liters 4 Axles Fuel Tanker Trailer With Airbag And Lifting

I. Feature

Special design and produce for West africa countries.As per the TOTAL oil requirements. Use for carry fuel,oil,gasoline

II. Advantages

1. Follow the ADR standard to design and produce, use for TOTAL Oil transportation.

2. Advanced pneumatic operating discharge system, emergency foot valves with aluminum alloy material for each compartment.

3. The gravity center of fuel tanker trailer is designed as low as possible to minimize the risks of overturns. More suitable use in rush roads. More safe for fuel transport.

4. The capacity of fuel tanker tanker trailer can be made from 30000 liters to 50000 liters, compartments from 1 to 8. To meet the clients' different requirments.

5. Advanced pneumatic operating discharge system, emergency foot valves with aluminum alloy material for each compartment.

III. Quality guarantee

1. More than 30 years experiences in trailer and truck industrial, exported to more than 30 countries in Africa, Southeast Asia.

2. Two years free warranty terms for the I beam, three to six month free warranty terms for the Axles, suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirment, ensure to meet your local road regulation.

IV. Specification

Style 45,000 liters 4-axle Carbon Steel Fuel Tanker Semi-trailer
Dimensions(mm) 12300*2500*3700
Load capacity(kgs) 45000
Compartment Number 4 (15000L/7500L/7500L/15000L)
Effective Cubage 45,000 liters
Axle 13 tons,4 axles
Suspension 3 axles with spring and 1 axles with airbag and lifting
Type of landing legs 19"
King pin 3.5“ bolt-in
Tire 315/80R22.5
Rim 9.00*22.5
Braking system Two of Wabco Re-6 relay vavle,4 units of MBA T30/30 spring chamber
4S/2M ABS system
Manhole Φ500
Discharge valve 4pcs of 3”
Discharge system pneumatic operating
Discharge horse 2x6m
Bottom vavle 4 pcs

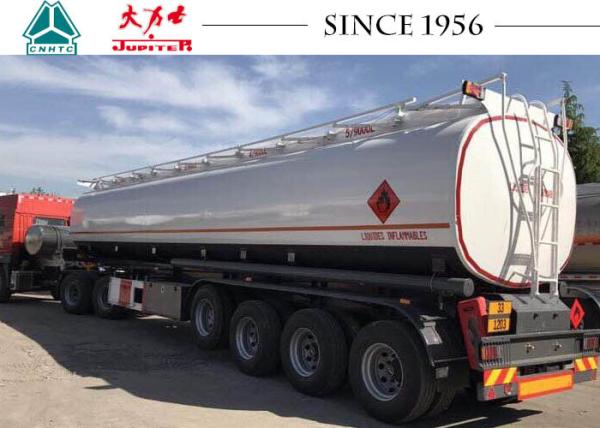

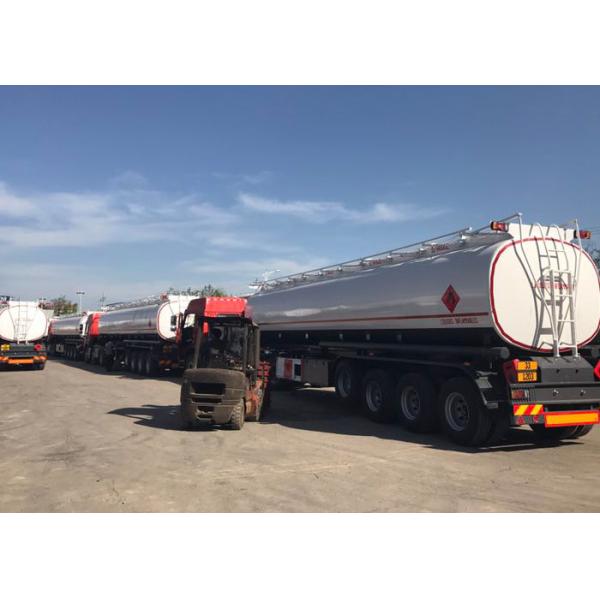

V. Detailed Photo

ADR Standard Fuel Tanker Trailer 45000 Liters Capacity With Airbag And Lifting
