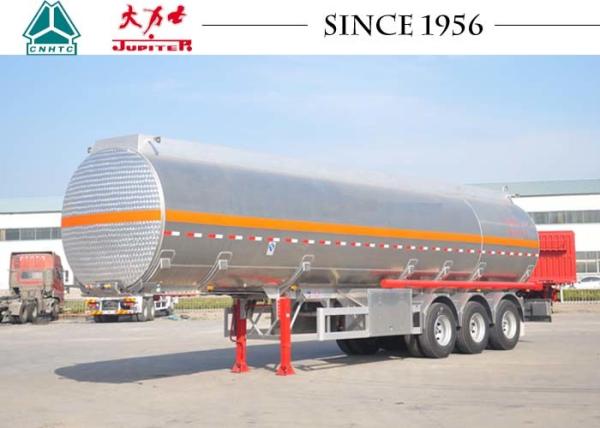

Light Weight Aluminum 45000 Liters Fuel Tanker Trailer With Bottom Loading
Light Weight Aluminum 45000 Liters Fuel Tanker Trailer With Bottom Loading
Light Weight Aluminum 45000 Liters Fuel Tanker Trailer With Bottom Loading
Light Weight Aluminum 45000 Liters Fuel Tanker Trailer With Bottom Loading
Specifications
Brand Name :
SUNSKY
Certification :
BV/CCC/CE/DOT/SGS
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Supply Ability :
500 Units Per Month
Delivery Time :
35 Working Days
Packaging Details :
No Packing
Material :
Aluminum
Tare Weight :
7 Tons
Volume :
45 m³ or optional
Suspension :
Airbag suspension
Axle :
Fuwa Brand
Loading Type :
Bottom Loading
Description

Light Weight Aluminum 45000 Liters Fuel Tanker Trailer With Bottom Loading

I. Application

Use for carry fuel,oil,diesel,jet a1 and other chemical liquid etc. Also can be designed to carry alcohol.acid etc.

Can be equip with airbag suspesnion and bottom loading with anti-overfill and vapor recovery system.

II. Feature of aluminum fuel tanker trailer

1. Advanced TIG welding robot, 100% x-ray inspection pass rate
2. Bulk heads and anti-surfers with rise structure,high strength.
3. European standard loading and unloading system.safe and environmental friendly.
4. Tank section with international standard small arc,improve tank strength more uniform intensity.

III. Quality guarantee

1. More than 30 years experiences in trailer and truck industrial, exported to more than 30 countries in Africa, Southeast Asia.

2. Two years free warranty terms for the I beam, three to six month free warranty terms for the Axles, suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirment,ensure to meet your local road regulation.

IV. Specification

Style 45,000L 3 Axle Aluminum Fuel Tank Trailer
The thickness of shell&dish 5mm/ Aluminum
Compartment: 3
Dimension(L*W*H)mm: 11700*2500*3700
Payload(kgs): 45000
Tare weight(kgs): 7000
Kingpin JOST 3.5” bolt-in
Landing gear JOST 19” C200T
Tire size 12R22.5 (13sets)
Rim size 9.00*22.5 (13sets)
Axle Fuwa brand-13ton or Bpw Brand
Leafs spring Airbag suspension(Spring suspension optional)
Brake system Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Manhole: Europe Standard C801A-560Φ500
Discharge and bottom valve Pneumatic 3”
Bottom loading

With Vapor Recovery & Anti-Overfill system

Prime & Topcoat painting Zinc-rich & Polyurethane painting

V. Detail Photo

Light Weight Aluminum 45000 Liters Fuel Tanker Trailer With Bottom Loading
