V Shaped 35 Tons Oil And Chemical Tanker 3 Axles With Spring Suspension
V Shaped 35 Tons Oil And Chemical Tanker 3 Axles With Spring Suspension
V Shaped 35 Tons Oil And Chemical Tanker 3 Axles With Spring Suspension
V Shaped 35 Tons Oil And Chemical Tanker 3 Axles With Spring Suspension
Specifications
Brand Name :
SUNSKY
Certification :
BV/CCC/CE/DOT/SGS
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 Units Per Month
Delivery Time :
35 Working Days
Packaging Details :
No Packing
Payload :
35 Tons
Dimension :
11400*2500*3400
Discharge valve :
DN100mm
Axles :
BPW / FUWA brand
Tires :
12R22.5
Suspension :
Spring suspension With 8pcs leaf spring
Description

V shaped 35 Tons 3 Axles Acid Tank Trailer With Spring Suspension For Sale

Acid tanker trailers are normally used to transportchemical liquid, such as Hydrochloric acid, Sulfuric acid, Hydrofluoric acid, Formic acid, Acetic acid, glacial acetic acid, Hydrogen peroxide, hydrogen peroxide,Sodium hydroxide etc. This tanker with v shape design which is very popular in Zambia, Congo, South Africa, Tanzania etc.

The acid tanker trailer produced and designed by SUNSKY follow below advantages:

1. The acid tanker trailers made of high-tensile Q345B steel,6 mm thickness for dish, 6 mm thickness for shell, 8mm for dish. Have stronger and Safer tanker body.

2. The acid tanker trailers are in a v shpaed design. More safe for acid transport.

3. The axle, tyre and other accessories of acid tanker trailer are the well-known brand like Fuwa,Bpw,Jost,Triangle brand which supplied by the domestic and foreign professional manufacturers.

4. Special design for Zambia market,can be made of cabon steel or stainless steel.

How can we ensure the acid tanker trailer quality?

1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.

2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirment,ensure to meet your local road regulation.

Specification of 35 tons acid tanker trailer

Style 19,000 Liters 3 Axles V Shape Acid Tanker Trailer
Dimension(L*W*H)mm: 11000*2500*3400
Payload(kgs): 35000
Tare weight(kgs): 9500
Effective capacity: 19 cbm
Thickness

6mm for shell , 8mm for dish
Medium: acid
Kingpin 3.5” bolt-in
Landing gear 19”
Tire size 12R22.5 (13sets)
Rim size 9.00*22.5 (13sets)
Axle BPW Brand 3 Axles
Leafs spring Steel suspension with 8 pcs of leafs spring
Brake system Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Discharge valve DN100mm discharge valve with cover
Manhole European standard Φ500 with air valve
Spill boxes Spill boxes with vent valves, Drainage pipes fitted
Tank roof Anti-corrosion cover
Discharge hose 2 units anti-corrosion hose on both ends

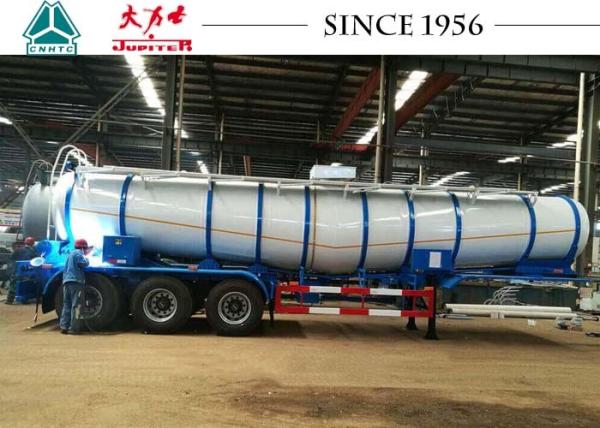

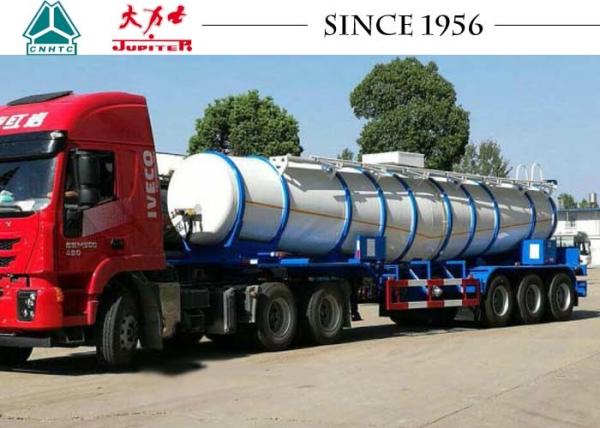

Detail Photo

Acid tanker trailer shipping to Tanzania by Ro-Ro ship

V Shaped 35 Tons Oil And Chemical Tanker 3 Axles With Spring Suspension
