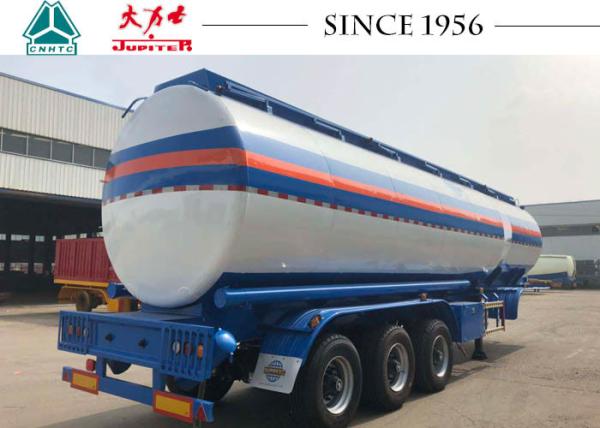

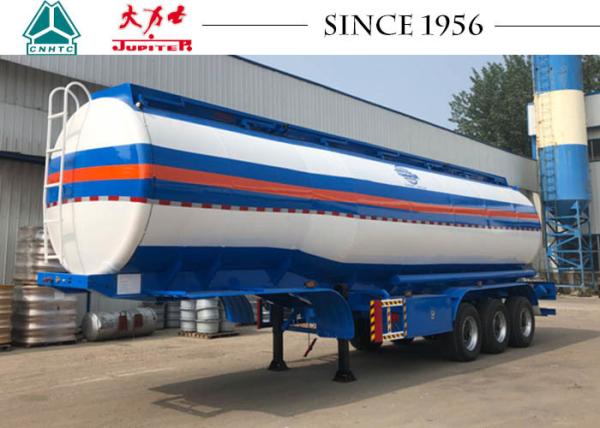

42000 Liters Tri Axle Trailer , Diesel Fuel Trailer With Super Single Tires
42000 Liters Tri Axle Trailer , Diesel Fuel Trailer With Super Single Tires
42000 Liters Tri Axle Trailer , Diesel Fuel Trailer With Super Single Tires
42000 Liters Tri Axle Trailer , Diesel Fuel Trailer With Super Single Tires
Specifications
Brand Name :
SUNSKY
Certification :
BV/CCC/CE/DOT/SGS
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Unit Per Month
Delivery Time :
35 Working Days
Packaging Details :
Nude Packing
Material :
Q345B Carbon Steel
Dimension :
11800*2500*3750
Tires :
385/65R22.5
Valve :
4 Inch
Thickness :
6 mm
Volume :
42000 Liters
Description

42000 Liters 3 Axles Fuel Tanker Trailer With Super Single Tires

I. Advantages of the tanker trailer

Design: The Anti-wave baffles of fuel tanker trailers adopt T610L high strength steel plate can increase the yield and tensile strength, have a lower tare weight.

Materials: The fuel tanker trailers are made of carbon Steel, it has high material strength, and easy repair and low maintenance cost.

Performance: Advanced pneumatic operating discharge system, emergency foot valves with aluminum alloy material for each compartment.

Customization: The capacity of fuel tanker trailer can be made from 30000 liters to 50000 liters. Compartments from 1 to 8.To meet the clients' different requirements.

II. Maintain idea for the fuel tanker trailer


1. The use and maintenance of the oil pump are strictly carried out according to the instructions for use and maintenance.
2. Safety valves and filter nets should be inspected and cleaned frequently.

3. Oil tanks and piping systems should be cleaned regularly. Regularly check whether the joints of the pipeline system are well connected and the seal is reliable.

III. How to ensure the quality and service?

1.More than 30 years experiences in trailer and truck industrial, exported to more than 30 countries in Africa, Southeast Asia.

2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles, suspension etc.

3. Spare parts support services.

4. Able to design and produce the tanker trailer as your requirment, ensure to meet your local road regulation.

IV. Specification of 42000 liters tanker trailer

Style 42,000L 3 Axle Fuel Tank Trailer
The thickness of shell&dish 5mm/ Q345B carbon mild steel
Compartment: 3
Dimension(L*W*H)mm: 11800*2500*3750
Payload(kgs): 42000
Tare weight(kgs): 9500
Kingpin JOST 3.5” bolt-in
Landing gear JOST 19” C200T
Tire size 385/65R22.5 (7 sets)
Rim size 11.75*22.5 (7 sets)
Axle Chinese Brand 13ton
Leafs spring Airbag suspension without lifting
Brake system Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Manhole: Φ500
Discharge and bottom valve Pneumatic 3”
Prime & Topcoat painting Zinc-rich & Polyurethane painting

V. Detailed Photo

(Airbag suspension and tool box of fuel tanker trailers)

42000 Liters Tri Axle Trailer , Diesel Fuel Trailer With Super Single Tires

42000 Liters Tri Axle Trailer , Diesel Fuel Trailer With Super Single Tires
