Liquid Petroleum Gas LPG Tank Trailer 45 CBM Capacity With Large Safety Factor
Liquid Petroleum Gas LPG Tank Trailer 45 CBM Capacity With Large Safety Factor
Liquid Petroleum Gas LPG Tank Trailer 45 CBM Capacity With Large Safety Factor
Liquid Petroleum Gas LPG Tank Trailer 45 CBM Capacity With Large Safety Factor
Specifications
Brand Name :
SUNSKY
Certification :
ISO/BV/CCC/CE/ASME
Place of Origin :
China
MOQ :
1 Units
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 Units Per Month
Delivery Time :
40 Working Days
Packaging Details :
No Packing
Standard :
Chinese/ ASME standard
Volume :
45 m³
Medium Density :
500 kg/ cbm
Thickness :
14mm /16mm
Material :
Q345R
Design Pressure :
1.77 Mpa
Description

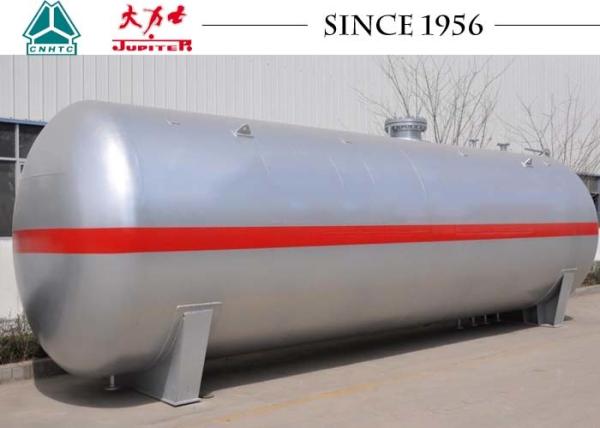

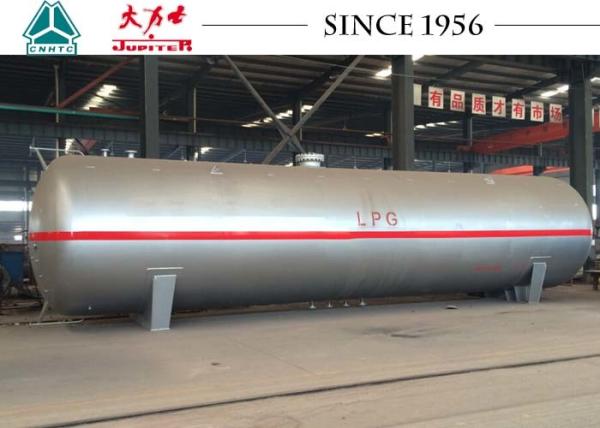

45 CBM Liquid Petroleum Gas LPG STORAGE TANK With ASME Standard For Sale

I. What can a LPG tanker trailer be used for?

Use for carry liquid perto gas.

II. What are the characteristics of SUNSKY LPG tank trailer?

1. As its flammable nature, the safety becomes more important for LPG. The cylindrical shape, like in other pressure vessels provides a safety to store and transport liquids kept under pressure.

2. The accessories used at LPG semi-trailer and rigid tank are selected with care to provide a safe, long-lasting and user-friendly usage while considering air and environment protection.

3. As LPG has a lighter density compare to many other liquid gases, the capacity of LPG semi-trailer and rigid tank capacities are comparatively higher.

4. The design pressure used for LPG Semi-Trailers and rigid tankers 17.5 to 23 Bar and the design temperature is between -20°C and +70°C.

III. Quality guarantee

1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.

2 .Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirment,ensure to meet your local road regulation.

IV. Specification

45CBM LPG STORAGE TANK
Volume of Tank 45CBM (Capacity Optional)
Filling Weight 17955kg
Tank Weight 10220kg
Thickness of Shell 14 mm
Thickness of Endplate 16 mm
Tank Diameter 2700 mm
External Dimensions 8342x 2728 x 3318mm
Material Q345R
Filling Medium Liquefied Petroleum Gas
Design Pressure 1.77 Mpa
Corrosion Allowance 1 mm
Medium Density 500 kg/ cbm
Discharge Pipe DN50 1Pcs
Inflow Pipe DN50 1Pcs
Gas phase balance pipes DN50 2Pcs
Drain Hole DN50 1Pcs
Manhole DN450 1Pcs
Air-out Pipe DN50 1Pcs
Safety Valve Pipe DN80 1 Pcs
Others With Safety accessories
Manufacturing Standard Chinese standard /ASME Standard
