58 CBM Tri Axle LPG Tank Trailer Q370R Material For Carry Liquid Pertol Gas
58 CBM Tri Axle LPG Tank Trailer Q370R Material For Carry Liquid Pertol Gas
58 CBM Tri Axle LPG Tank Trailer Q370R Material For Carry Liquid Pertol Gas
58 CBM Tri Axle LPG Tank Trailer Q370R Material For Carry Liquid Pertol Gas
Specifications
Brand Name :
SUNSKY
Certification :
ISO/BV/CCC/CE/DOT/SGS/ASME
Place of Origin :
China
MOQ :
1 Units
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 Units Per Month
Delivery Time :
40 Working Days
Packaging Details :
No Packing
Material :
Carbon Steel Q370R
Capacity :
58CBM
Axles :
Bpw Brand
Suspension :
Spring suspension,optional for airbag
Thermometer :
Rego Brand
Liquid Level Gauge :
Rego Brand
Description

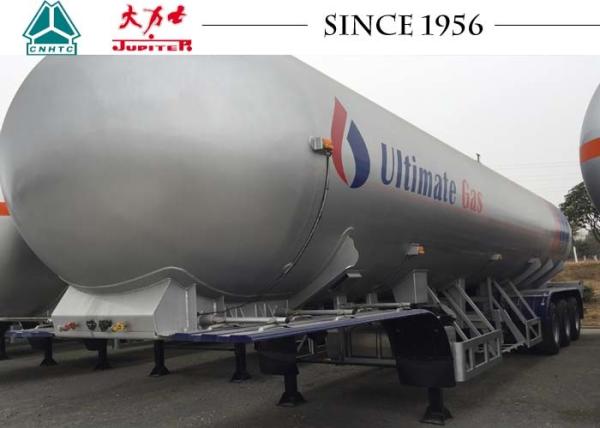

ASME 58 CBM Tri Axle LPG Gas Tank Semi Trailer For Sale Philippines

I.Feature of 58 CBM LPG tank trailer

1. Use for carry liquid perto gas and other liquid chemical gas.

2. The whole frame of LPG trailer is designed by CAD system, optimized in structure,to satisfy different cargo,loading&unloading capacity and using environment s requirements.

3. The LPG trailer use advanced welding equipment and European design and technology to ensure the tanker quality and best property,can be adapted to different terrible road environment.
4. The axle,tyre and other accessories are the well-known products which supplied by the domestic and foreign professional manufacturers.
5. The continuous improvement of structure makes it much accord with practical loading and unloading requirements.

II. Specification 58 CBM LPG tank trailer

Style 58 Cbm 3 Axles LPG Tank Semi-Trailer
Feature Carry Liquid Petro Gas
Dimension(L*W*H) 13150*2500*4100mm
Model SS9470GYQ
Material Q370R
Compartment One
Capacity(kgs) 26,915KGS (58.1CBM, 0.42T/CBM)
Tare weight(kgs) 15,000kgs
Kingpin The world-famous JOST brand bolt-in/welded type 3.5”/2”
Landing gear JOST brand two-speed manual operation 19”
Tire size 11R22.5
Rim size 9.00*22.5
Axle Original BPW-12T
Leafs spring Germany type with 12pcs of leafs spring/ Fuwa brand with 10 pcs of leafs spring/ Airbag suspension
Brake system One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector.

Emergency Valve

(Liquid Phase)

 Rego Brand, A3213R300, 2 Pcs

Emergency Valve

(Gas Phase)

 Rego Brand, A3212R175, 1 Pc
PRV Rego Brand, A 8436G , 2 Pcs
Vent Valve Rego Brand, TSS3169 , 4 Pcs
Liquid Adaptor Rego Brand, 5769K (3”, 3-1/4ACME),2 Pcs
Gas Adaptor Rego Brand, 5767H (2”, 2-1/4ACME), 1 Pc
Angle Valve Rego Brand, J415/ A2805C , 1 Pc
Pressure Gauge Rego Brand, J542 /A 8400 , 1 Pc
Thermometer Rego Brand, J700, 1 Pc
Liquid Level Gauge Rego Brand, 6339M11/6342M11 , 1 Pc
Prime & Topcoat painting S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting
The LPG trailer can be designed and produced as your requirements

III. Quality guarantee

1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.

2 .Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirment,ensure to meet your local road regulation.
