Lightweight Cement Bulker Transporters 12 Wheeler With Air Compressor
Lightweight Cement Bulker Transporters 12 Wheeler With Air Compressor
Specifications
Brand Name :
JUPITER
Certification :
BV/ CCC/ CE/ DOT/ SGS
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Units Per Month
Delivery Time :
35 Working Days
Packaging Details :
No Packing
Capacity :
45 m³
Dimension :
11800*2500*3800 (mm)
Diesel Engine :
WeiChai 4100
Air compression :
WBF 12/2
Tare weight :
10500kgs
Leaf spring :
10pcs(90mm*13mm)
Description

High Quality 45CBM 12 Wheeler Bulk Cement Trailer With Air Compressor

Bulk cement bulker trailer is suitable for carrying bulk cement, coal ash, lime power, mineral power, fuly ash and other power material with the partice diameter no more than 0.1mm.

I.Feature

1. Tank body made of high strenth wear-resistant steel,lightweight and durable
2. Dual alloy lower tare weight
3. No guide plate structure,light weight,low residue.
4. Wide area fluidized bed with a large angle tanker,so unloading faster and less residue
5. Linear arrangement of the intake inlet line is smoother,faster unloading.

II.Quality guarantee

1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.

2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirment,ensure to meet your local road regulation.

III.Specification

Style 45CBM 3 Axles Cement Bulker Tanker Trailer
Dimension(L*W*H) 11800*2500*3800 (mm)
Max. payload 56000 (kgs))
Volume 45 CBM
Tare weight 10500 (kgs)
Kingpin JOST 3.5” bolt-in
Landing gear JOST 19”
Tire size 12R22.5 (13sets)
Rim size 9.00*22.5 (13sets)
Axle BPW brand ,3 axles,13 tons
Susupension Fuwa steel suspension with 9pcs of leafs spring
Brake system Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Diesel Engine: Shandong WeiChai 4100(40KW)(2000r/min)
Air compression: SuZhou WBF-12/2 (12M3/min) (0.2MPA)
Painting Zinc-rich & Polyurethane painting

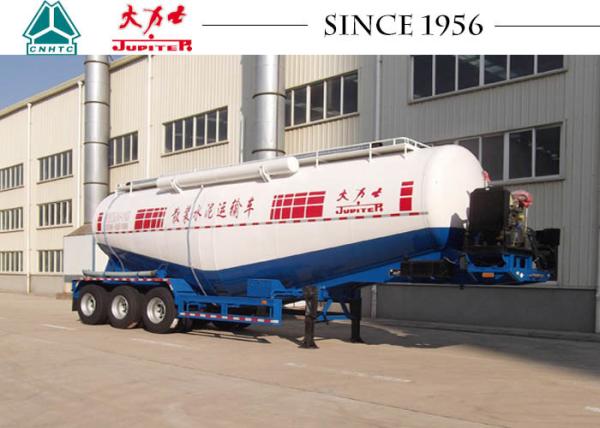

IV.Detail Photo

Lightweight Cement Bulker Transporters 12 Wheeler With Air Compressor
