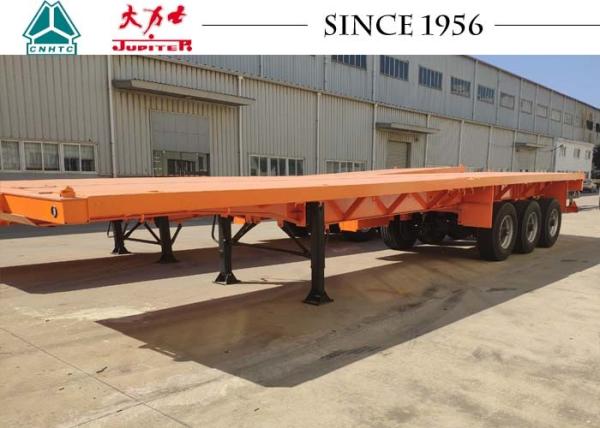

Light Weight 3 Axles Flatbed Trailer 30 Tons With Airbag Suspension For Tanzania
Light Weight 3 Axles Flatbed Trailer 30 Tons With Airbag Suspension For Tanzania
Light Weight 3 Axles Flatbed Trailer 30 Tons With Airbag Suspension For Tanzania
Light Weight 3 Axles Flatbed Trailer 30 Tons With Airbag Suspension For Tanzania
Specifications
Brand Name :
Jupiter
Certification :
BV/CCC/CE/DOT/SGS
Place of Origin :
China
MOQ :
2 Units
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Units Per Month
Delivery Time :
30 Working Days
Packaging Details :
2 Units Load Into 40/45 FT Container
Materials :
Carbon Steel Q345B
Payload :
30 Tons
Dimension :
12410*2480*1540
Axles :
Fuwa Brand 13 Tons
Suspension :
Airbag suspension
Tires :
385/65R22.5
Description

Light Weight 30 Tons 3 Axles Flatbed Trailer With Airbag Suspension For Tanzania

I. Application

Use for carry container and bulk cargo like coal,stone,steel,wood etc.

II. Quality guarantee

1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.

2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirment,ensure to meet your local road regulation.

III. Feature

1. Main frame of flatbed trailer is made of 16mm high-tensile steel,the stucture is reasonable,have superior carrying capacity and no permanet deformation.

2. The axle,tyre and other accessories are the well-known brand like Fuwa,Bpw,Jost,Triangle brand which supplied by the domestic and foreign professional manufacturers.

3. It is optional to install the relevant accessories such as front plate,boomer, to meet the extra demand.

4. The main frame of flatbed trailers can be made of foreign or domestic high-tensile steel to reduce tare weight.

IV. Specification

Style 40FT 3 axle flatbed trailer
Dimension(L*W*H): 12410*2480*1540
Main frame: Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
Payload(kgs): 30000
Tare weight(kgs): 6500
Kingpin JOST 3.5” bolt-in
Landing gear JOST 19” C200T
Tire size 385/65R22.5 (7 sets)
Rim size 11.75*22.5 (7 sets)
Axle Fuwa brand 13ton
Brake system Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Air Chamber MBA T30/30

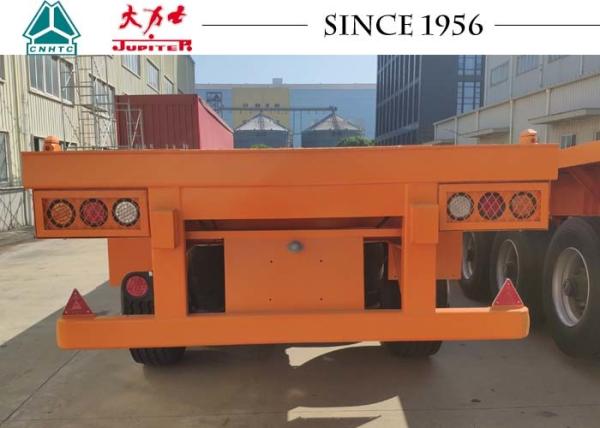

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Suspension: Airbag suspension
Container locks 12(for 1x20GP,2X20GP,1X40HQ)
Others 1500 L Fuel Tank(Optional)
Painting: S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
