Triple Axle Flatbed Trailer Semi Trailer Flatbed Flatbed Towing Trailer

Semi Trailer Flatbed Introduction

The structure of the Triple Axle Flatbed Trailer is made of high-strength international steel, which has low dead weight, anti-twist, anti-seismic, and can adapt to the load-carrying capacity of various road surfaces. The longitudinal beam adopts automatic submerged arc welding, and the frame is shot peened. Structure, reasonable design, high strength, hold the load under progressive impact.

Flatbed Towing Trailer Specification

Triple Axle Flatbed Trailer Description
1. The whole vehicle shape 12450*2500*1550 (flat height); 2.
2. 12 sets of container locks, can carry 1 40ft, 2 20ft or 1 20ft standard container.
3. This vehicle is equipped with Zhengyang American-style 13T axle, triangle 12R22.5 vacuum tires, American-style mechanical suspension; front axle mid-airbag lift.
4. 1 tool box on the left side, a 60L water tank on the left side.
5. longitudinal beam upper wing plate 14/Q345, lower wing plate 16/Q345, web plate 6mm/Q345, height 500mm; side beam 16# channel steel, commonly known as 10# channel steel, bottom plate 2.5mm pattern.

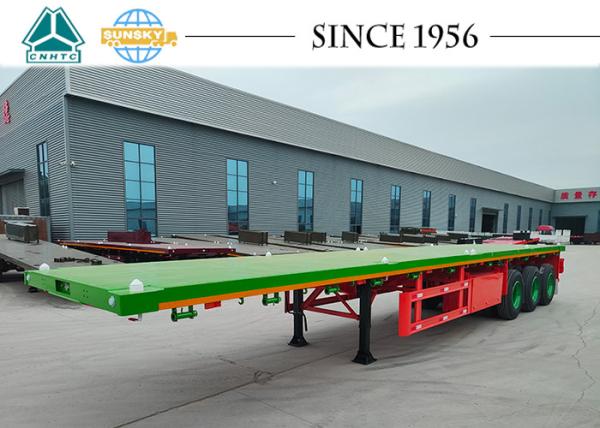

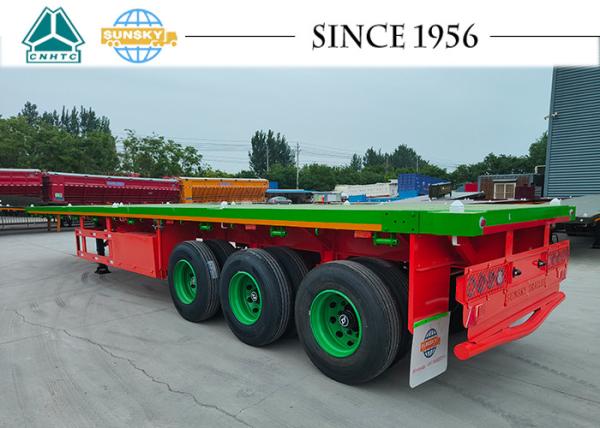

Flatbed Towing Trailer IMAGE

Quality guarantee of side wall trailer factory

1. More than 30 years experiences in trailer and truck industrial, exported to more than 30 countries in Africa, Southeast Asia.

2. Twenty-Four month free warranty terms for the I beam, three to six month free warranty terms for the Axles, suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirement, ensure to meet your local road regulation.

Sunskyvehicle has the most professional service and the best quality products, if you are interested in our Triple Axle Flatbed Trailer Semi Trailer Flatbed Flatbed Towing Trailer , or if you have any questions, please leave us a message or letter, and welcome your visit.
