40000L 4 Axle Carbon Steel Bitumen Tanker Semi Trailer
40000L 4 Axle Carbon Steel Bitumen Tanker Semi Trailer
Specifications
Brand Name :
SUNSKY
Certification :
BV/CCC/CE/DOT/SGS
Place of Origin :
FUJIAN,CHINA
MOQ :
2 units
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Units Per Month
Delivery Time :
30 Working Days
Material: :
Carbon Steel
Capacity: :
40,000L
Axle: :
FUWA-13T,4 Axle
Dimension(L*W*H): :
12000*2500*3400mm
Description

40,000L 4 axle Carbon Steel Asphalt Bitumen Tanker Semi Trailer

Functions of asphalt tank trailer

1. Asphalt sprinkling three overlap, according to the walking speed, automatically adjust the amount of sprinkling.

2. The whole process of asphalt spreading can be completed in the cab.

3. Each nozzle is controlled by computer separately, and the width of sprinkling can be adjusted arbitrarily.

4. The asphalt tanker trailer control program is equipped with two sets of control systems (cab and rear operating platform) to ensure the reliability of asphalt spraying.

5. The computer control system adopts modular design, low failure rate, easy maintenance.

6. The tank asphalt insulation performance, the average temperature drop is less than 2 degrees /h.

7. The bitumen tank trailer is equipped with self-priming device, which can also transfer the external asphalt tank.

8. The whole trailer is equipped with hand spray gun device, which can fill the asphalt on the corners.

9. The heat conduction oil on the asphalt pump, nozzle and tank for all-round heating, but also can be respectively controlled heating.

10. Safe and reliable heat conduction oil heating system to achieve automatic control.

11. Two kinds of speed measurement configuration is optional: infrared pulse sensor, American Dicky-John radar speed measurement.

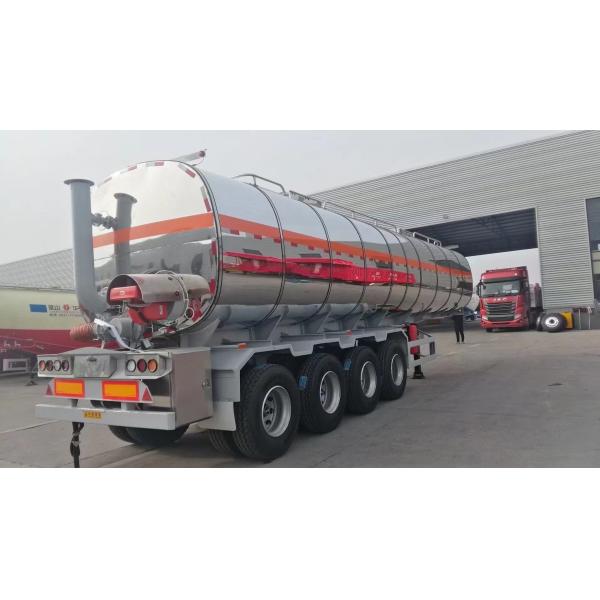

40000L 4 Axle Carbon Steel Bitumen Tanker Semi Trailer

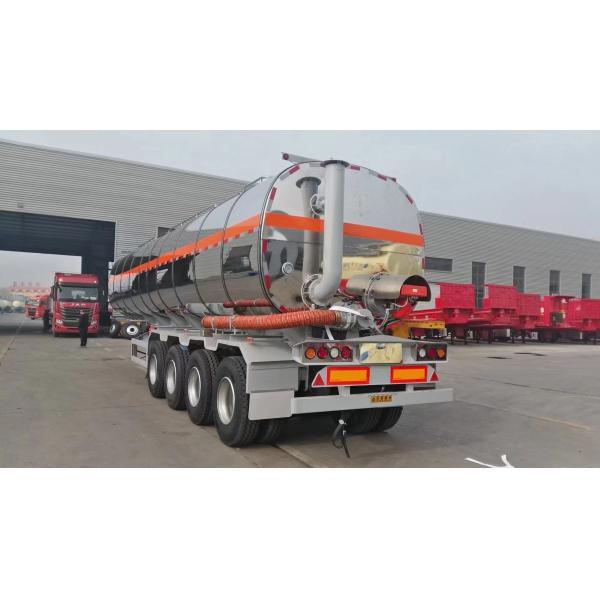

40000L 4 Axle Carbon Steel Bitumen Tanker Semi Trailer

SPECIFICATION

40,000L 4-axle Asphalt tanker Semi-trailer
Feature: Carry asphalt,bitumen
Dimension(L*W*H): 12000*2500*3400mm(40,000L)
Model SS9400GRY
Material: Carbon Steel
Capacity(kgs): 40,000L
Tare weight(kgs): 12,600kgs
Thickness

5mm for shell and 6mm for dish.

0.8mm stainless steel on the surface of insulation layer
Kingpin Fuwa brand bolt-in 2”
Landing gear JOST brand 19”
Tire size 12R22.5
Rim size 8.25*22.5
Axle FUWA-13T. 4 Axle
Leafs spring Spring suspension with 8pcs of leafs spring
Brake system One unit WABCO RE 6 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector.
Manhole: 2 sets,20 inch
Heating system With one burner
Insulation layer: With glass fiber insulation
Diesel engine without
Discharge pump without
Others With railings at the top of tanker, with fire extinguisher
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Prime & Topcoat painting S.A.2.5 standard sandblasting ;Zinc-rich & Polyurethane painting
