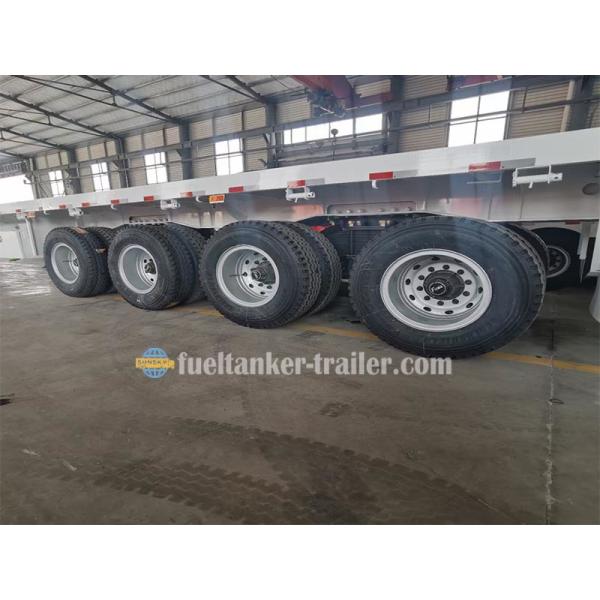

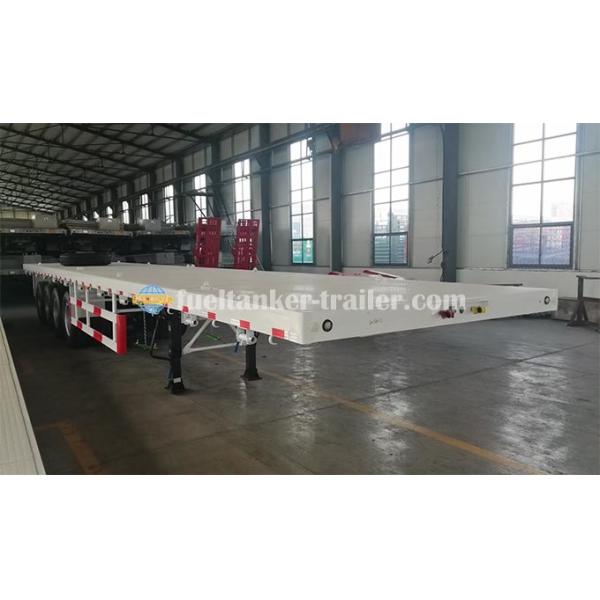

Spring Suspension 4 Axle 20 40 45 FT Flatbed Trailer
Spring Suspension 4 Axle 20 40 45 FT Flatbed Trailer
Specifications
Brand Name :
SUNSKY
Certification :
BV/CCC/CE/DOT/SGS
Place of Origin :
CHINA
MOQ :
2 units
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Units Per Month
Delivery Time :
30 Working Days
Axles: :
Fuwa Brand,4 Axle
Suspension: :
Spring Suspension Or Airbag Suspension
Dimension: :
20FT/40FT/45FT
Payload: :
55 Tons
Description

4 Axle China 20/40/45FT Flatbed Trailer For Sale

I. Feature

1. The flatbed trailers are suitable for the long distance transportation,have good adapt ability in cargo transport.

2. Main frame of flatbed trailer is made of 16mm high-tensile steel,the structure is reasonable,have superior carrying capacity and no permanent deformation.

3. It is optional to install the relevant accessories such as front plate,boomer, to meet the extra demand.

4. The main frame of flatbed trailers can be made of foreign or domestic high-tensile steel to reduce tare weight.

Spring Suspension 4 Axle 20 40 45 FT Flatbed Trailer

II. Specification

Style 4 axle flatbed trailer
Dimension(L*W*H): 12480*2500*1570 (20/40/45FT optional)
Main frame: Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
Payload(kgs): 55000
Tare weight(kgs): 8100
Kingpin JOST 2" bolt-in
Landing gear JOST 19" C200T
Tire size 12R22.5 (17sets)
Rim size 9.0*22.5 (17sets)
Axle Fuwa brand 13ton ,4 axle
Brake system Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Air Chamber MBA T30/30
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Suspension: Spring suspension /Airbag suspension
Container locks 4/8/12(for 1x20GP,2X20GP,1X40HQ)
Painting: S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting

III. Advantages of SUNSKY flatbed trailer

1. The I-beam and chassis of flatbed trailer is made of 16mm high tensile . New design and technology make the structure more reasonable.The payload of 40ft container trailer can reach a higher level.

2. The lightweight materials is optional by customers to reduce the tare weight of trailer. Help you to carry more loads on the trailers.

3. The flatbed trailer use high strength and impact resistance new type suspension. Keep the trailers in longer lifespan.

4. Optional to install 2 to 4 axle as customers' requirements to meet the road transport regulation in different countries.

Spring Suspension 4 Axle 20 40 45 FT Flatbed Trailer

IV. Quality guarantee

1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.

2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirement,ensure to meet your local road regulation.
