60T 5 Axle Heavy Duty Tipper Trailer / Dump Trailer For Mine Transportation
60T 5 Axle Heavy Duty Tipper Trailer / Dump Trailer For Mine Transportation
60T 5 Axle Heavy Duty Tipper Trailer / Dump Trailer For Mine Transportation
60T 5 Axle Heavy Duty Tipper Trailer / Dump Trailer For Mine Transportation
60T 5 Axle Heavy Duty Tipper Trailer / Dump Trailer For Mine Transportation
60T 5 Axle Heavy Duty Tipper Trailer / Dump Trailer For Mine Transportation
Specifications
Brand Name :
SUNSKY
Certification :
ISO 9001,CCC
Place of Origin :
China
MOQ :
1
Price :
USD 22500 /Unit
Payment Terms :
T/T, L/C
Supply Ability :
500 Units Per Month
Delivery Time :
30 Working Days
Packaging Details :
1 Unit Load Into Flat Rack Or By Ro Ro Ship/Bulk Ship
Payload :
60 to 80 Tons
Capacity :
45 cubic meter
Type :
U shape Tipper Trailer
Medium :
Sand,stone,copper,mine etc.
suspension :
3 Axle spring with 2 axle airbag suspension
Material :
Cabon Steel Tipper Trailer
Description

60T 5 Axle Heavy Duty Tipper Trailer / Dump Trailer For Mine Transportation

Introduce of 5 Axle Tipper Trailer For Sale Ghana

5 axles 45 cubic rear tipper trailers produced by SINOTRUK HOWO is ideal equipment to transport and carrying sand ,stone, copper, mine,bauxite etc. 5 axle 60 tons tipper trailer are equipped with HYVA cylinder, which is more reliable and more safety, all key parts of dump trailer are from famous brands boty at home and aboard.We can also supply 2 axles, 3 axles, 4 axles tipper semi trailer, which loading capacity from 40 ton ton 80 ton for customer special requirements. Our 5 axle tipper trailers is very popular used in west afriac countries like Ghana, Senegal ,Nigeria etc. because reliability, durability and the low maintenance cost.

Specification of 5 Axle Tipping Trailer For West Africa

Style 45CBM 5 Axle Tipper Trailer
Dimension(L*W*H)mm: 11500*2550*3700
Inner dimension(L*W*H)mm: 10300*2350*1800
The material of body BS700MC high tensible 4mm
Payload(kgs): 60,000 to 80,000
Volume(CBM) 45 CBM
Tare weight(kgs): 14000
Kingpin JOST3.5”bolt-in
Landing gear JOST19”
Tire and rim 12R22.5
Axle Germany type 12 tons/American type 13 tons
Suspension 3 Axle Spring suspension Plus 2 axle airbag with lifting
Brake system Re-6 emergency valve
Air Chamber MBA T30/30
Hydraulic system: HYVA brand

Quality guarantee of 60 tons tipper trailer for sale

1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.

2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirment,ensure to meet your local road regulation.

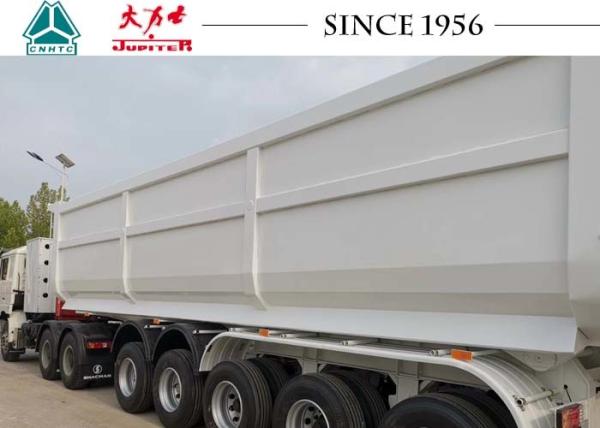

Detail photo of 5 Axle Dump Trailer for Bauxite transportation

60T 5 Axle Heavy Duty Tipper Trailer / Dump Trailer For Mine Transportation

60T 5 Axle Heavy Duty Tipper Trailer / Dump Trailer For Mine Transportation

60T 5 Axle Heavy Duty Tipper Trailer / Dump Trailer For Mine Transportation
