Heavy Duty 45 Foot Flatbed Trailer With Bogie Suspension For Kuwait Transportation
Heavy Duty 45 Foot Flatbed Trailer With Bogie Suspension For Kuwait Transportation
Heavy Duty 45 Foot Flatbed Trailer With Bogie Suspension For Kuwait Transportation
Heavy Duty 45 Foot Flatbed Trailer With Bogie Suspension For Kuwait Transportation
Specifications
Brand Name :
SUNSKY
Certification :
BV/CCC/CE/DOT/SGS
Place of Origin :
China
MOQ :
2 Units
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Units Per Month
Delivery Time :
30 Working Days
Packaging Details :
2 Units Load Into 40/45 FT Container
Materials :
Carbon Steel Q345B
Payload :
40 Tons
Dimension :
13900*2480*1570
Axles :
2 x 14 tons
Suspension :
28 tons bogie suspension
Tires :
12R22.5
Description

Heavy Duty 45 Foot Flatbed Trailer With Bogie Suspension For Kuwait Transportation

Flatbed trailers are versatile open trailers used to transport a wide range of products and materials. Also known as flat, float, flat deck, and high boy trailers, some of the common products they are used to haul are: Flat steel, coiled steel, channel steel, Rebar, Lumber, Pipe, Pre-cast concrete, Building materials and container etc.

Feature

1. The flatbed trailers are suitable for the long distance transportation,have good adapt ability in cargo transport.

2. Main frame of flatbed trailer is made of 16mn high-tensile steel,the stucture is reasonable,have superior carrying capacity and no permanet deformation.

3. Use High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety.

4. High strength and impact resistance new type suspension is adopted with patented rod connecting design. It can ensure better performance in rough road condition and keep longer service life.

Quality guarantee

1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.

2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirment,ensure to meet your local road regulation.

Specification

Style 45FT 3 axle flatbed trailer
Dimension(L*W*H): 13900*2480*1570
Main frame: Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
Payload(kgs): 40000
Tare weight(kgs): 7500
Kingpin JOST 3.5” bolt-in
Landing gear JOST 19” C200T
Tire size 12R22.5 (9 sets)
Rim size 9.0*22.5 (9 sets)
Axle 2x 14 tons
Brake system Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Air Chamber MBA T30/30
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

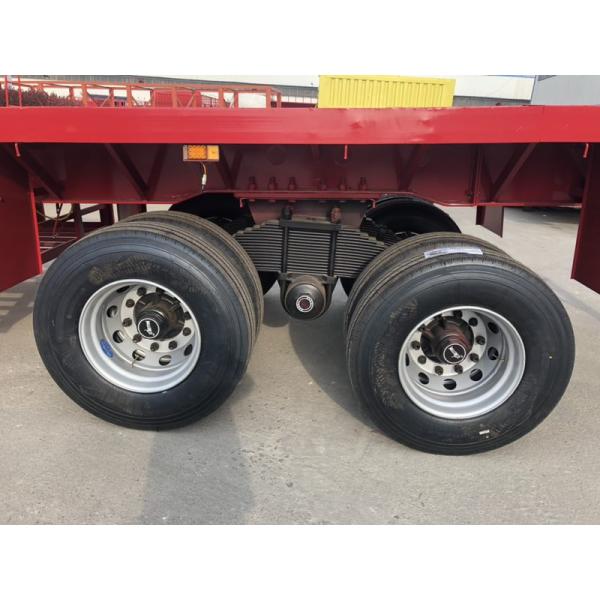

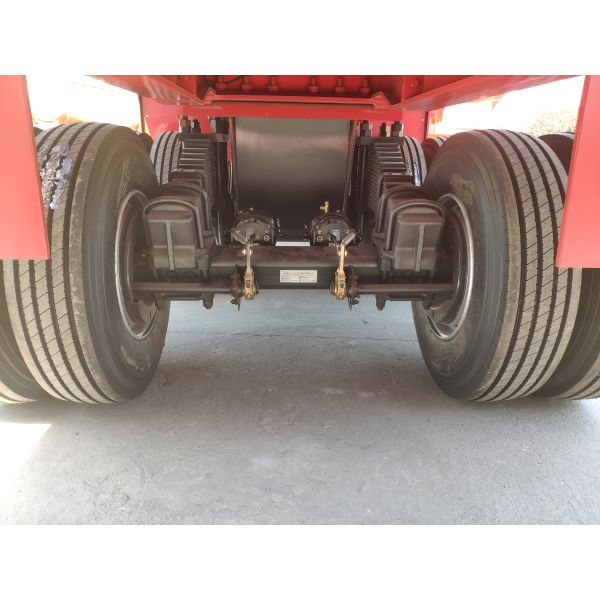

Suspension: 28 Tons Bogie suspension
Container locks 12(for 1x20GP,2X20GP,1X40HQ)
Painting: S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting

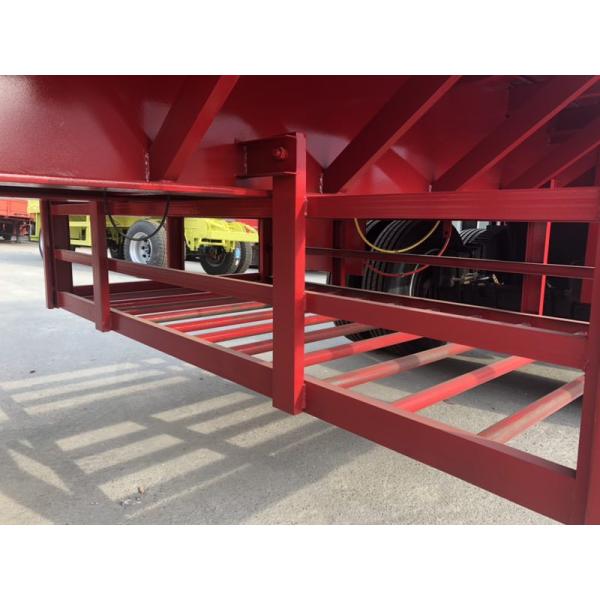

Detail Photo

Heavy Duty 45 Foot Flatbed Trailer With Bogie Suspension For Kuwait Transportation

Heavy Duty 45 Foot Flatbed Trailer With Bogie Suspension For Kuwait Transportation

Heavy Duty 45 Foot Flatbed Trailer With Bogie Suspension For Kuwait Transportation
