56 Tons 3 Axle Cement Hauling Trailers For Cement Plant , Bulk Cement Trailer
56 Tons 3 Axle Cement Hauling Trailers For Cement Plant , Bulk Cement Trailer
56 Tons 3 Axle Cement Hauling Trailers For Cement Plant , Bulk Cement Trailer
56 Tons 3 Axle Cement Hauling Trailers For Cement Plant , Bulk Cement Trailer
Specifications
Brand Name :
SUNSKY
Certification :
ISO 9001;CCC
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Units Per Month
Delivery Time :
35 Working Days
Packaging Details :
No Packing
Material :
Carbon Steel Q345B
Capacity :
45 m³
Payload :
56 Tons
Color :
Optional
Tires :
12R22.5
Dimension :
11800*2500*3800
Description

Cheap 45 CBM 56 Tons 3 Axle Bulk Cement Tanker Trailer For Cement Plant

I. Application:

Bulk cement bulker trailer is suitable for carrying bulk cement, coal ash, lime power, mineral power, fuly ash and other power material with the partice diameter no more than 0.1mm,the bulk cement tank trailer is mainly used in cement factories, cement warhouses and large construction sites.The bulk cement tanker produce by us will help you reduce the loss rate of cement power material and improve the loading and unloading efficiency.

II.Feature:

1. The tank body is made of high-strengh and wear-resistant steel, ensure a longer life span.
2. The Bulk cement tanker trailer with no guide plate structure,have lighter weight,lower residue.
3. Wide area fluidized bed with a large angle tanker,so unloading faster and less residue
4. Adopt the domestic and foreign famous brand accessories and parts,such as Weichai engine, Suk air compressor,BPW Axles,Jost Landing Gear, ensure the durabitily of bulk cement trailer.Help you save costs on operation and maintain.

III.Quality guarantee

1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.

2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirment,ensure to meet your local road regulation.

IV.Specification

Style 45CBM 3 Axles Bulk Cement Tanker Trailer
Dimension(L*W*H) 11800*2500*3800 (mm)
Max. payload 56000 (kgs))
Volume 45CBM
Tare weight 10500 (kgs)
Kingpin JOST 3.5” bolt-in
Landing gear JOST 19”
Tire size 12R22.5 (13sets)
Rim size 9.00*22.5 (13sets)
Axle Fuwa brand ,3 axles,13 tons
Susupension Steel suspension with 9pcs of leafs spring
Brake system Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Diesel Engine: Shandong WeiChai 4100(40KW)(2000r/min)
Air compression: SuZhou WBF-10/2 (10M3/min) (0.2MPA)
Painting Zinc-rich & Polyurethane painting

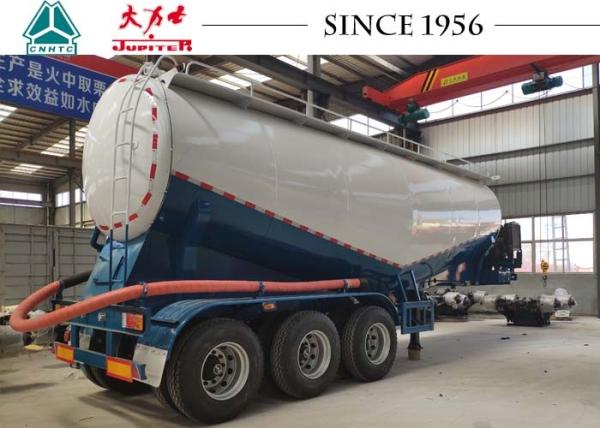

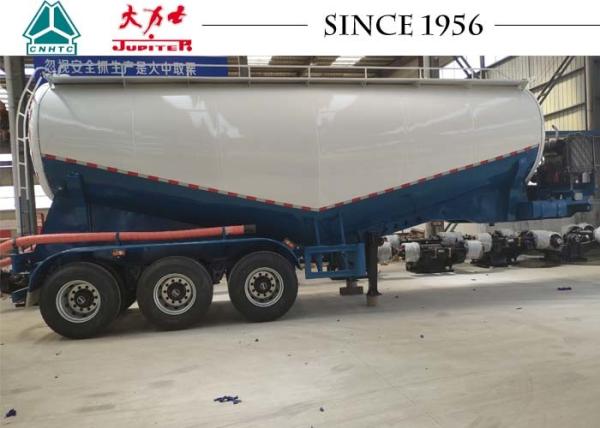

V.Detailed Photo

56 Tons 3 Axle Cement Hauling Trailers For Cement Plant , Bulk Cement Trailer

56 Tons 3 Axle Cement Hauling Trailers For Cement Plant , Bulk Cement Trailer
