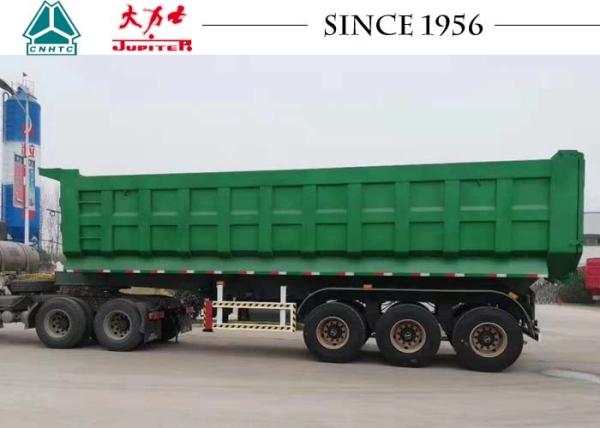

High Durability 40 CBM End Dump Trailer With 3 Axle For Copper Transportation
High Durability 40 CBM End Dump Trailer With 3 Axle For Copper Transportation
High Durability 40 CBM End Dump Trailer With 3 Axle For Copper Transportation
High Durability 40 CBM End Dump Trailer With 3 Axle For Copper Transportation
Specifications
Brand Name :
SUNSKY
Certification :
BV/CCC/CE/DOT/SGS
Place of Origin :
China
MOQ :
1 Units
Price :
Negotiable
Supply Ability :
500 Units Per Month
Delivery Time :
35 Working Days
Packaging Details :
No Packing
Material :
Carbon Steel Q345B
Volume :
40 CBM
Payload :
50 Tons
Tires :
315/80R22.5
Cylinder :
HYVA
Brake system :
Dual line air brake system
Description

High Durability 40 CBM End Dump Trailer With 3 Axle For Copper Transportation

For complete customer satisfaction, we stand behind what we sell. The SUNSKY brand is one of the top brand truck and trailer in China. With a host of unique, technological properties, the SUNSKY comes standard with all types of features that make getting the transportation done simple and effective. You won’t find a more dependable trailer than SUNSKY end dump trailer.

Design

Heavy duty and extra durability design. Opting high tensile low carbon alloy Q345B Steel. I beam welded by automotive arc-submerge process.

Material

The main frame body is made of Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.

Payload

Use advanced over load design and welding technology for the chassis. Ensure the strong of trailer body. Make sure the tipper trailer still in good condition even in small overloading. The payload can be design max to 100 tons.

Brake system

The tipper trailers equip full braking and electrical systems at home and abroad in accordance with ISO standard .Optional ABS system, braking, lighting is absolutely safe and reliable.

Specification

Style 40 CBM 3-Axle Tipper Trailer
Dimension(L*W*H) 10500*2600*3680 (mm) (Custom-built)
Body materials Q346B carbon steeel
Thickness Side wall:6 mm; bottom floor:8 mm
Payload(kgs) 50000
Volume(CBM) 40 CBM
Tare weight(kgs) 10700
Kingpin JOST 3.5” bolt-in
Landing gear JOST 19”
Tire and rim 315/80R22.5 (13sets)
Axle FUWA/BPW brand -13Ton
Suspension Spring suspension with 12pcs of leaf spring
Brake system Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Air Chamber MBA T30/30
Electric system One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Hydraulic system HYVA brand

Quality guarantee

1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.

2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirment,ensure to meet your local road regulation.
