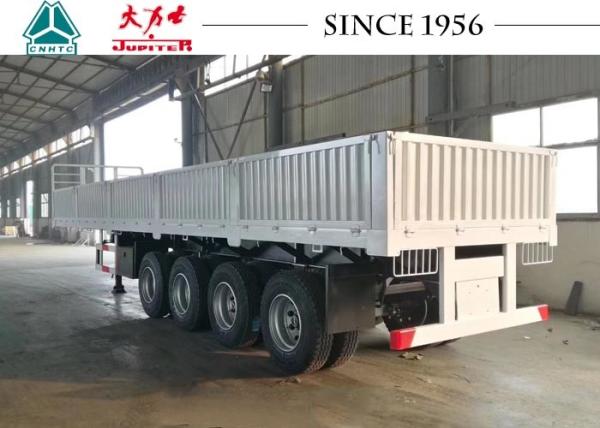

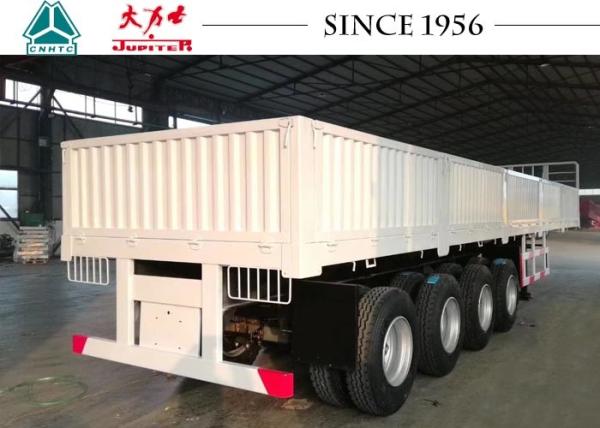

White 40 FT Drop Side Trailers , Flatbed Trailer 4 Axle With Side Wall
White 40 FT Drop Side Trailers , Flatbed Trailer 4 Axle With Side Wall
White 40 FT Drop Side Trailers , Flatbed Trailer 4 Axle With Side Wall
White 40 FT Drop Side Trailers , Flatbed Trailer 4 Axle With Side Wall
White 40 FT Drop Side Trailers , Flatbed Trailer 4 Axle With Side Wall
White 40 FT Drop Side Trailers , Flatbed Trailer 4 Axle With Side Wall
Specifications
Brand Name :
SUNSKY
Certification :
ISO 9001,CCC
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 13500 / Unit
Payment Terms :
L/C, T/T
Supply Ability :
500 Units Per Month
Delivery Time :
30 Working Days
Packaging Details :
2 Units Load Into 40 FT Container or by roro ship and bulk ship
Dimension :
12600*2500*2500 mm
Height of side wall :
500 mm to 1500 mm
Payload :
60 Tons
Axle :
Fuwa Brand 13 tons,4 Axle
Brake system :
Wabco brand
Tires :
Triangle brand 12R22.5
Description

40 FT Drop Side Trailers, 4 Axle Flatbed Trailer with Side Wall for Sale

Introduction of four axle drop side trailer

Drop side trailers also called side wall trailers, can be used to transport many kinds of objects, from boxes to bulk cargo. Its side panel can be opened, which is more convenient to unload cargo. The 4 axle side wall trailer is widely used by transportation companies in the logistics industry. The shape and height of the side panel can be customized. Height of side wall can be designed from 500mm to 1500mm. The 4 Axle side wall trailers have larger payload design, popular used in west Africa countries like Ghana, Nigeria and Senegal etc.

Feature of 40FT side wall trailer for sale

40FT 4 Axle Side Wall semi-trailer
Dimension(L*W*H): 12600*2500*2500 mm
The Height of Wall 1000mm
Main frame: Heavy duty and extra durability design; Opting for high tensile low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
No. of axle: 4
Payload(kgs): 60000
Tare weight(kgs): 8200
Kingpin: JOST 2”
Landing gear: JOST two-speed manual operation 19”
Tire size: 12R22.5(17 sets)
Rim size: 9.00*22.5(17sets)
Axle: 4 Axle,13 tons
Suspension Spring suspension with 8pcs of leafs spring
Brake system: Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Container locks 12(for 1x20GP,2X20GP,1X40HQ)
Painting: S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
Accessory: One tool box; one set of standard tool

Quality guarantee of side wall trailer manufacturer

1. More than 30 years experiences in trailer and truck industrial, exported to more than 30 countries in Africa, Southeast Asia.

2. Twenty-Four month free warranty terms for the I beam, three to six month free warranty terms for the Axles, suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirement, ensure to meet your local road regulation.
