Side Board Trailer Heavy-Duty Sidewall Trailer Bulk Cargo Semi Trailer
Side Board Trailer Heavy-Duty Sidewall Trailer Bulk Cargo Semi Trailer
Side Board Trailer Heavy-Duty Sidewall Trailer Bulk Cargo Semi Trailer
Side Board Trailer Heavy-Duty Sidewall Trailer Bulk Cargo Semi Trailer
Specifications
Brand Name :
SUNSKY
Certification :
ISO 9001/SGS/BV/CCC
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Units Per Month
Delivery Time :
30 Working Days
Packaging Details :
2 Units Load Into 40 FT Container or by bulk ship
material :
Q345B steel
dimension :
Approx.13000*2600*2700mm
axle :
13 Tons
tires :
385/65R22.5
Condition :
Brand New
container locks :
12(for 1X20GP,2X20GP,1X40HQ)
Description

Side Board Trailer Heavy-Duty Sidewall Trailer Bulk Cargo Semi Trailer

A 3-Axle Side Wall Trailer is a commonly used type of semi-trailer for cargo transportation. It is characterized by openable side walls on both sides and at the rear to facilitate cargo loading and unloading. With its versatility and high efficiency, sideboard semi-trailers have become an ideal choice in the logistics and transportation industry. They are widely used in the transportation of various bulk goods such as building materials and agricultural products.

Features of Side Board Trailer:
- 40FT Dropside semi trailer (Henred design)
- Can carry 1X40FT, 1X20FT, or 2X20FT container; bulk cargo
- Dimensions (L*W*H): 12500*2600*2770mm
- Height of sidewalls: 1200mm
- Payload (kgs): 40000
- Tare weight (kgs): 9000
- Kingpin: Bolt-in type 3.5” or 2”
- Landing gear: Two-speed manual operation 19”
- Tire size: 315/80R22.5 double tyres (13 tyres)
- Rim size: 9.00*22.5 (13 sets)
- Axle: 3 Axle, 13 Tons
- Suspension: Spring suspension with 8 leaf springs

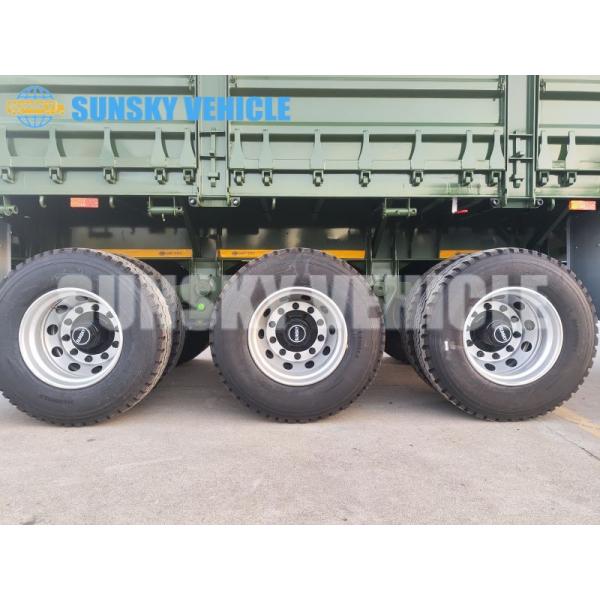

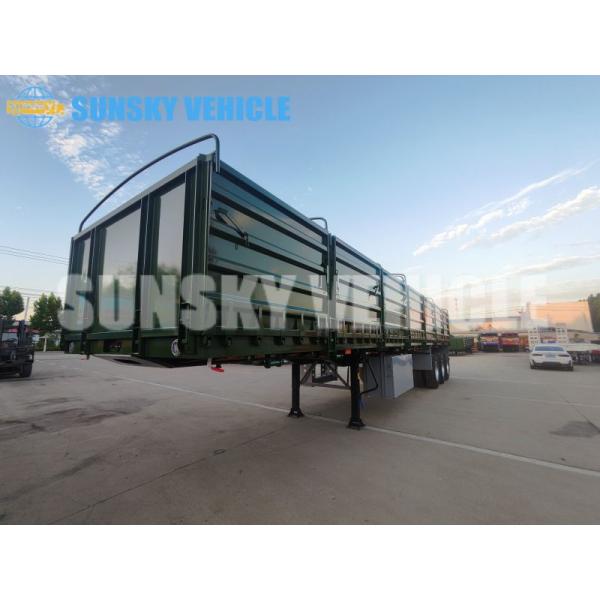

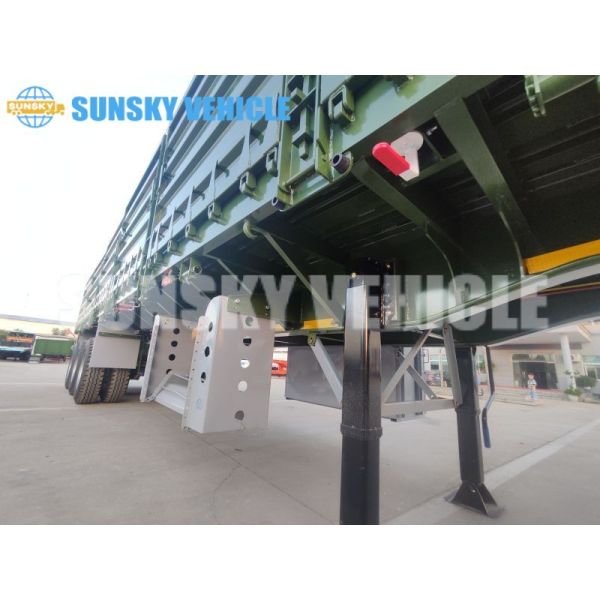

40FT dropside Semi-trailer picture

Side Board Trailer Heavy-Duty Sidewall Trailer Bulk Cargo Semi TrailerSide Board Trailer Heavy-Duty Sidewall Trailer Bulk Cargo Semi TrailerSide Board Trailer Heavy-Duty Sidewall Trailer Bulk Cargo Semi Trailer

Advantages
1. The structure of flatbed semi-trailer is made of high-strength international steel; it has light dead weight, and it
has good advantage in anti-distortion, anti-seismic, anti-turbulence, and meets the needs of different road bearing
capacity.
2. The web height of flatbed trailer is from 400mm to 550mm, the longitudinal beam is welded by automatic
submerged arc welding, the frame is shot peening, and the beam penetrates the longitudinal beam and welds the
whole.
3. Tandem dry plate spring and suspension bearing composition, reasonable structure, with strong rigidity and
strength, used to support the load slow impact.

4.The tarpaulin poles and horizontal pulls are only at the uprights, and there are no tarpaulin poles on the box board;

If you are also interested in our Side Board Trailer Heavy-Duty Sidewall Trailer Bulk Cargo Semi Trailer, the load capacity depends on your customized needs, customers engaged in transportation and logistics are welcome to purchase from sunsky.
