Specifications
Brand Name :
SUNY
Model Number :
LPG-G50
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 18000 ~ 32000 /unit
Supply Ability :
50 units / month
Delivery Time :
30 days
Packaging Details :
nuke package , shipping by bulk cargo ship
tank capacity :
50M3
Material :
Q345R
produce standard :
ISO
design pressure :
1.77Mpa
design tempreture :
-19~50
tank design thickness :
16mm
loading weight :
21000kg
working pressure :
1.61Mpa
Description

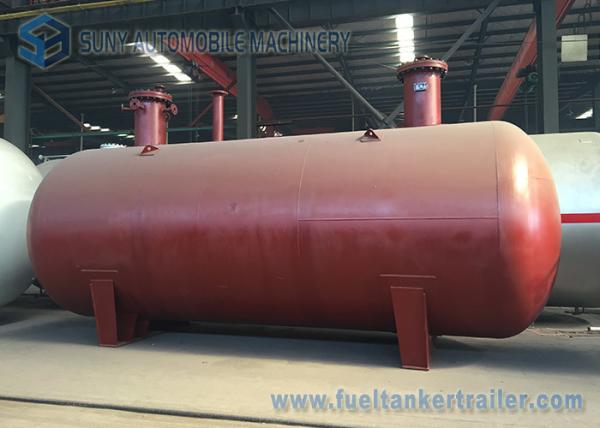

ISO 50000L undergrond horizontal type cylinder LPG gas storage tank

Quick Description:

1. LPG propane gas storage tank volume: 50 m3, 50 cbm, 50000 L, 50000 liters;

2. LPG propane gas storage tank diameter: 3100 mm;

3. LPG propane gas storage tank material: Q345R;

4. accessories: Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc.

5. Designing pressure:1.77 Mpa Designing temperature: -19 °C to 50 °C.

Competitive Advantage:


ISO CCC SGS BV ASME produce standard for your optional

Pproduction Process:

1. The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity, light weight and high efficiency.


2. We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding seam pass the examination of level one radiographic test.


3. There are high safety domestic or imported safety accessories for customers option.


4. The anti-corrosion coating of LPG tanker adopt the following process, sandblast, spray painting, purging and so on

Specifications:

20T (50M3) LPG storage tank
Tank type III
Working Medium LPG (propane)
Design Specific Gravity 0.42 Kg/L
Media characteristics Flammable and explosive
Capacity 20MT(50M3)
External Dimensions (length*width*height) 9182*2730*3318mm
Tank dimension (length*diameter) L9182*2700mm
Tank weight (nominal) 10640kg
Max payload weight 19950kg
Tank material Q345R
Barrel design thickness 13.7mm
Head design thickness 13.67mm
Welded joint coefficient 1.0
Design temperature 50 0C
Working temperature -20~50 0C
Corrosion allowance 1.0 mm
Design pressure 1.77 MPa
Hydraulic test pressure 2.22 MPa
Leak test pressure 1.77 MPa
Heat treatment type Wholly get rid of tress
Paint paint white color, or paint the color you request.
The first installation accessory and nozzle size Safe valve DN80 1
Disconnecting valve DN50 6
DN25 2
Level gauge L2940mm 1
Pressure meter 1
Temperature meter 1
Product standard China Standard GB150
Standard design and manufacture

1.JB/T4731-2005 < Steel horizontal vessels on saddle supports>

2.GB150-1998<steel pressure vessels>

3.TSG R0004-2009<Supervision regulation on safety technology for

stationary pressure vessel>

4.HG20584-1998<technical requirements for fabrication of steel chemical vessels>

5.NB/T47015-2010<welding specification for steel pressure vessels>

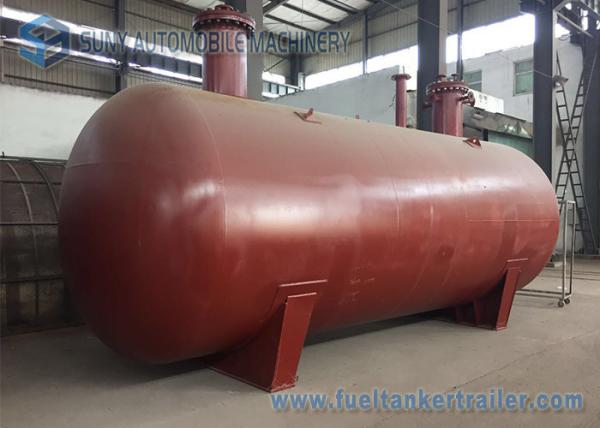

More picture show:
