Specifications
Brand Name :
SUNY
Model Number :
SYCMT3FL
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 15, 000 ~ 35, 000 per Unit
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units per year
Delivery Time :
10 ~ 15 working days
Packaging Details :
Nude with waxing. Whole truck by ro - ro ship, bulk ship and flat rack. Upper body by 40HQ container.
Color :
White with red stripe, Optional.
Engine :
130 hp
Reducer :
Italian brand, PMP
Hydraulic Pump :
Italian brand, PMP
Hydraulic Motor :
Italian brand, PMP
Water Tank Volume :
350 Litres
Residual Rate :
< 0 . 6 %
Filling Rate :
68 %
Description

Forland Times Kingkong Small Concrete Mixers 6 Wheeler Cement Mix Truck 3 M3

Small Concrete Mixer Truck , is also called cement truck , concrete mixing truck , cement mix truck , concrete mixing transport truck , mainly used in transporting mixed concrete used in construction with mixing drum .

Product Notes :

1 . This truck adopt plow shape mixing angle , perfect carbon steel , rugged wear ;

2 . Feed , discharge fast speed , stir well ;

3 . Main component adopt imported Italy equipment or Chinese brand , high quality ;

4 . Forland light 4 * 2 Chassis ;

5 . Low price .


Product Description

Forland Times Kingkong 6 Wheeler 3 M3 Small Concrete Mixer Truck

Main technical parameter
Product Model FORLAND Small Concrete Mixer Truck Overall Dimension ( L * W * H ) ( mm ) 6460 × 2255 × 3300
Mixing Volume ( m 3 ) 3 Curb weight ( kg ) 5980
Wheelbase ( mm ) 3400 Approach / departure angle ( ° ) 24 / 20
Cab type flat proof Cab capacity 3
Front / rear suspension ( mm ) 1230 / 1830 Max Speed ( km / h ) 85
Chassis Technical Parameter
Chassis Model BJ1143VJPFA - 1 Chassis Manufacturer Beijing Fonton Daimler Automobile Co . , Ltd
Brake System Air brake Transmission type Manual with 5 shift
Front / rear suspension ( mm ) 1230 / 1830 Leaf Spring number 10 / 12 + 9
Axle number 2 Traction Type 4 * 2
Tire size 8 . 25R20 Number of Tire 6 with a spare
Engine specification
Engine Model YC4D130 - 33 Engine Brand GUANGXI YUCHAI Machinery Co . , Ltd
Emission stand Euro 3 Displacement ( ml ) 6500
Fuel type Diesel Power ( kw ) 96 ( 130 hp )
Warranty 12 months , from the date of supply
other Equipment or performances 24V Electric system , electrically hydraulic operation control
Tanker Material : Q345 carbon steel
Equipped with Italy PMP Brand hydraulic pump , hydraulic motor , speed reducer or Chinese brand

Our Services

1. Factory Supply:
a. one of the biggest special using truck manufacturers in China,
b. more than 300 kinds of special truck for your needing,

2. OEM Ability:
can produce according to your demand, the size, the color and the logo is optional for you.

3. Good Quality:
a. has solid technology, advanced equipment: reliant quality and flexible modes of operation also have strict quality control system
b. passed the ISO9001 - 2008 and the 3C ( China Compulsory Certification )
c. our brand is China famous brand with good reputation in the market.

4. Good Service:
24 – hour hotline and email

5. Fast Delivery:
10 - 15 days after payment, safe and quick delivery

6. Standard Steering:
Left – hand drive, if you need Right – hand drives, please inform us, we will make special order for you.

We highly recommend this refrigerated truck. It ‘ s in an excellent condition and also with good quality and competitive price. Further information, pls feel free to contact with me or visit our website, we will offer our best service.

Packaging & Shipping

Truck is nude packing, shipping in container, in bulk, in ro – ro.

We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients ’ requirement for clients!

Company Information

Hubei Suny Automobile And Machinery Co . , Ltd is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

Our advantage:

1. We have own factory located in Suizhou city - the special truck town of China. we can control every details - the development, the quality and the cost. As a result we can supply the quality goods with most competitive price.

2. We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.

3. There is a strong professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.

If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.

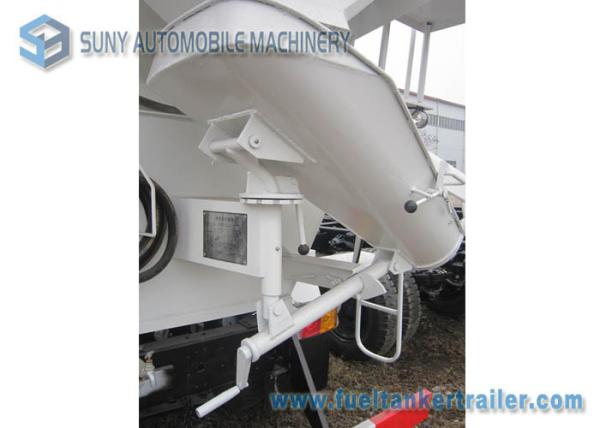

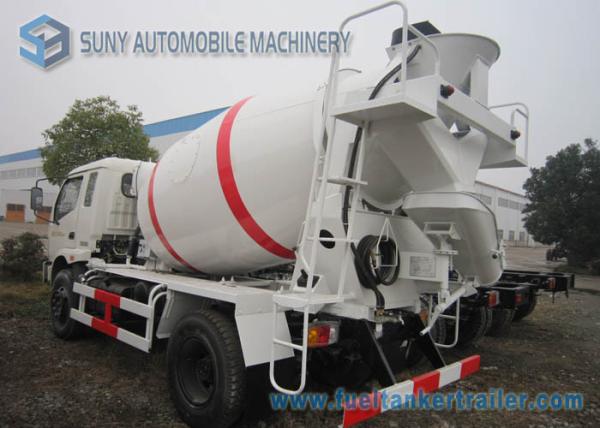

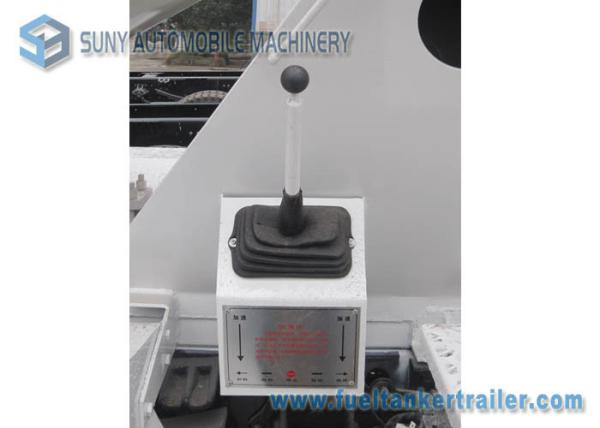

More photo:

Forland Times Kingkong Small Concrete Mixers 6 Wheeler Cement Mix Truck 3 M3
