Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity
Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity
Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity
Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity
Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity
Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity
Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity
Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity
Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity
Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity
Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity
Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity
Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity
Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity
Specifications
Brand Name :
SUNY
Model Number :
SYCMT7HW
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 35, 000 ~ 65, 000 per Unit
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units per year
Delivery Time :
15 ~ 25 working days after we get the deposit
Packaging Details :
Nude with waxing. Whole truck by ro - ro ship, bulk ship and flat rack. Upper body by 40HQ container.
Color :
Black, Optional base on customers' requirements
Engine :
336 hp
Reducer :
ARK , Italy
Hydraulic Pump :
ARK , Italy
Hydraulic Motor :
ARK , Italy
Water Tank Volume :
400 Litres
Residual Rate :
< 0 . 4 %
Filling Rate :
67 %
Description

Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity

Packaging & Shipping

1 . Container guarantee to not be damaged at the shipping .
2 . Protective Packaging
3 . Protective packaging according to the characteristics of the products .
Packages after the water spray test , no water leakage .
4 . Proof packaging
Take the necessary measures moisture proof packaging goods .
5 . Rust - proof packaging
Products sealed with rust - proof material has a very good rust resistance , easy to remove .

Specifications:

Black HOWO 6X4 Cement Mixer Truck 7 Cubic Metre Drum Mixing Capacity

MAIN DESCRIPTION

Overall Dimensions 8410mm * 2480mm * 3720mm ( L * W * H )
Tare Weight10480kgPayload15000kg
Front Overhang1500mmRear Overhang2335mm
Wheelbase3225mm + 1350mmTrack ( F / R )2022mm / 1830mm

CHASSIS

Chassis BrandSINOTRUK HOWO
Chassis ModelZZ1257M3241 , driving type 6 x 4
CabStandard HW70 , left hand drive , air - conditioner , no sleeper
EngineSINOTRUK WD615 . 62 , 336hp , Euro III emission standard , 4 - stroke direct injection Diesel engine , 6 - cylinder in - line with water cooling , turbo - charging and inter - cooling , displacement 9 . 726L
TransmissionHW15710 , No . of speeds : 10 forward & 2 reverse
SteeringGerman ZF8098 , turning system pressure 18MPa
Rear AxleHC16 tandem axle , rated load 2 x 13ton , ratio 5 . 73
Wheels and tiresRim 8 . 00 - 20 ; tire 11 . 00 - 20 , 10 units ; Spare wheel carrier : with one spare wheel
BrakesService brake : Dual circuit pneumatic brake ; Parking brake : Spring energy , compressed air operating on rear wheels ; Auxiliary brake : Engine exhaust brake

MIXING SYSTEM

Mixing Volume6cbm
Water Tank Volume400L
Hydraulic PumpBrand : ARK , Italy
MotorBrand : ARK , Italy
Speed ReducerBrand : PMP , Italy
Mixing DrumBody steel plate thickness 6mm , Front end thickness 8mm .
FAQ


1 . Q : How about warranty ?
A : 18 month since successful installation .
2 . Q : What certificate do you have ?
A : ISO9001
3 . Q : What is the productivity of concrete mixer and concrete batching plant ?
A : The productivity of concrete mixer ranges from 6m3 / h to 100m3 / h . The productivity of concrete batching plant ranges from 25m3 / h to 180m3 / h.
4 . Q : What is the brand of mixer ?
A : Most of mixer is manufactured by ourselves and achieved the domestic leading technology , the international advanced level . If you want the SICIMA which is also provided , for we have cooperated with SICOMA for many years . So the price is the best .
5 . Q : How many days it need to install the concrete mixing plant ?
A : It takes about 10 days , it ’ s modular production and easy to install .

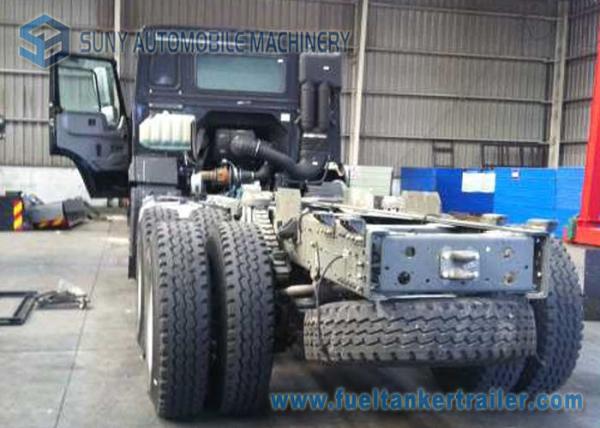

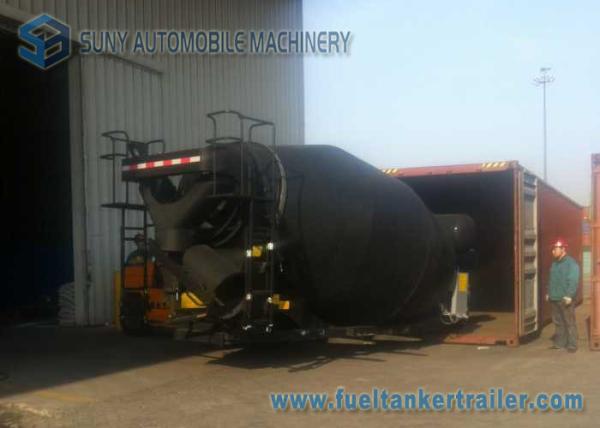

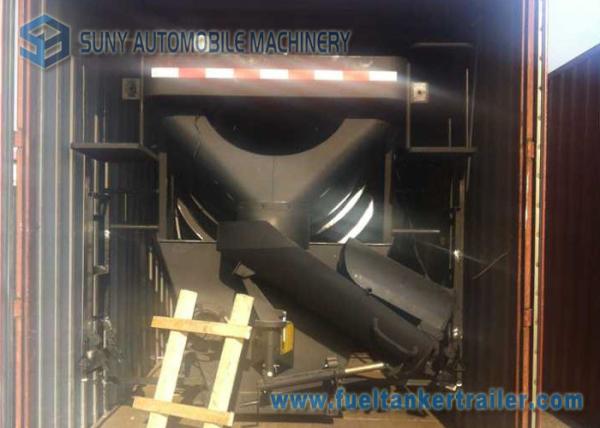

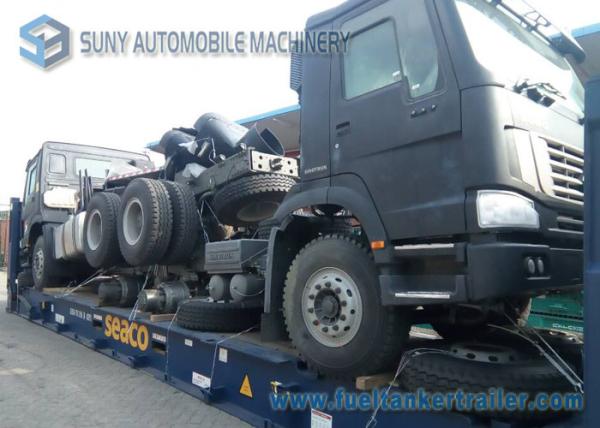

More Pictures :

Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity
