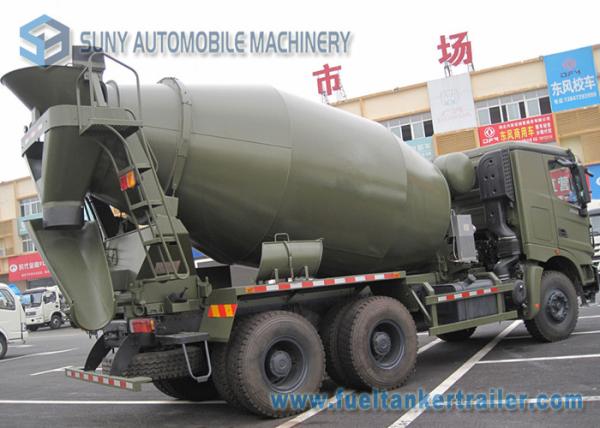

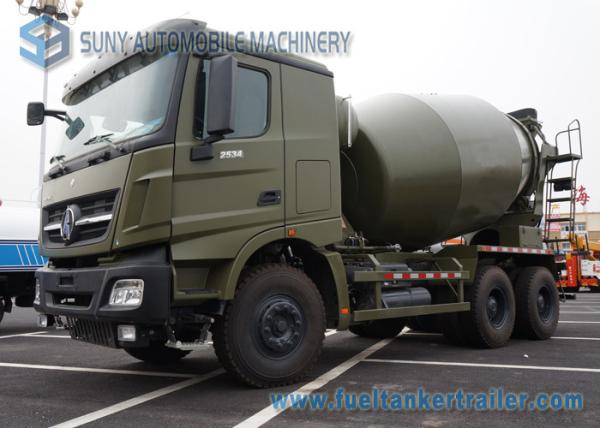

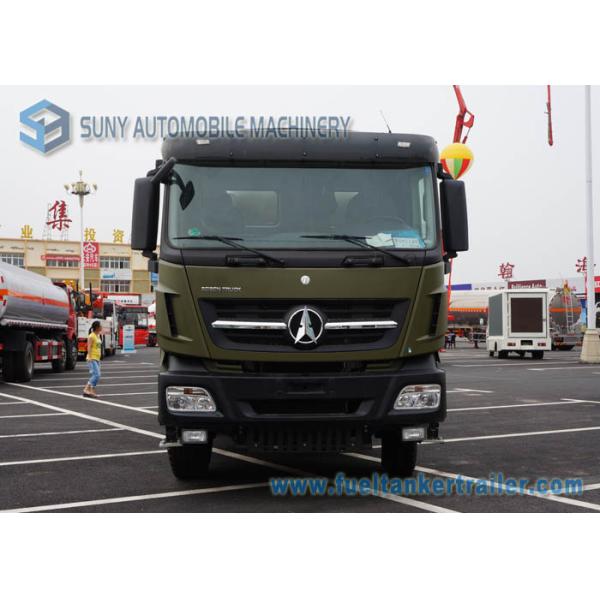

6X4 Beiben 5 M3 Military Concrete Mixer Truck With Mercedes Benz Technology
Specifications:
6X4 Beiben 5 M3 Military Concrete Mixer Truck With Mercedes Benz Technology
Beiben 5m3 concrete mixer truck ND5256GJBZ | ||
Whole Vehicle Parameters | Chassis | BEIBEN |
Curb weight ( kg ) | 12780 | |
Total vehicle weight ( kg ) | 25000 | |
Overall dimensions ( L * W * H ) | 9400 x 2500 x 3900 | |
Wheelbase ( mm ) | 4100 + 1450 | |
Front overhang ( mm ) | 1410 | |
Rear overhang ( mm ) | 2640 | |
Max. Traveling speed ( km / h ) | 85 | |
Vehicle Configuration | Clutch | Dry single dis clutch ( Φ 430 ) |
Gearbox | FAST 9T - 1680 | |
Driving type | 6 x 4 | |
Steering mechanism | TAS85 | |
Service brake | Dual - circuit air brake | |
Parking braking | Spring - powered Air - cut - off brake | |
Auxiliary brake | Engine exhaust brake | |
Tire | 12 . 00R20 radial tire | |
Engine Parameters | Model | WP10 . 340E32 |
Feature | Diesel , 4 stroke , Direct injection , 6 cylinder in line , Turbo - charging , Inner cooling | |
Emission standard | Euro 3 | |
Max power ( kw ) | 340hp | |
Max torque ( N . m ) | 1500 | |
Mixing Drum Parameters | Max mixing cubage ( m ³ ) | 5 |
Feeding speed ( m ³ ) | 3 . 5 | |
Discharging speed ( m ³ ) | 3 | |
Leftover rate | Nearly Zero | |
Max Rotating Speed ( R / min ) | 14 - 16 | |
Mixing Drum Obliquity ( ° ) | 10 | |
Max mixing drum diameter ( mm ) | Φ 2412 | |
Driving System | Hydraulic Pump | Italian TOP089 |
Hydraulic Motor | TOP 089 | |
Speed reducer | TOP P68 | |
Water supply mode | Water pump ; pneumatic pump |
1 . All the trucks will be made antirust before shipment ;
2 . Different shipping method for different situation , Ro - Ro Vessel , Bulk Vessel , Flat - Rack , Container , etc ;
3 . Shipment tracking service .
Q : How about your product quality ?
A : The products have passed the ISO , CCC , SGS , BV , and CONTECNA qualification certification , the quality is 100 % guaranteed .
Q : I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres , is it ok ?
A : We can make the tyres as your requirement to suit your country ' s need . In fact , you can tell us all your special requirements , we will try our best to satisfy your need .
Q : I want to transport the truck by container , is it ok ?
A : Yes , it is ok . But we may need to take apart the truck . You should make sure that the truck could be reinstalled in your country .
Q : How to transport the truck ?
A : We mainly transport the truck by ro - ro ship or bulk ship . The truck will be anti - rusted before shipping to avoid the damage frome the sea water .
Q : Can you supply the spare parts of this truck ?
A : Yes , We can supply the spare parts for all the trucks we sell , We have spare parts department professional for this . Once you make sure the model of the spare part , we can supply it immediately .
Q : Do you have oversea service ?
A : When you have some problems which you can ’ t solve . we will arrange our engineers to your country to help you .
If there is any other questions , please feel free to contact us any time, we will be at your service 24 hours . Suny the future , ready to grow together with you !
