INT 30 Tow Truck Upper Body For Dongfeng 153 Heavy Duty Road Wrecker
INT 30 Tow Truck Upper Body For Dongfeng 153 Heavy Duty Road Wrecker
INT 30 Tow Truck Upper Body For Dongfeng 153 Heavy Duty Road Wrecker
INT 30 Tow Truck Upper Body For Dongfeng 153 Heavy Duty Road Wrecker
INT 30 Tow Truck Upper Body For Dongfeng 153 Heavy Duty Road Wrecker
INT 30 Tow Truck Upper Body For Dongfeng 153 Heavy Duty Road Wrecker
INT 30 Tow Truck Upper Body For Dongfeng 153 Heavy Duty Road Wrecker
INT 30 Tow Truck Upper Body For Dongfeng 153 Heavy Duty Road Wrecker
INT 30 Tow Truck Upper Body For Dongfeng 153 Heavy Duty Road Wrecker
INT 30 Tow Truck Upper Body For Dongfeng 153 Heavy Duty Road Wrecker
INT 30 Tow Truck Upper Body For Dongfeng 153 Heavy Duty Road Wrecker
INT 30 Tow Truck Upper Body For Dongfeng 153 Heavy Duty Road Wrecker
Specifications
Brand Name :
SUNY
Model Number :
SYWUINT30
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 17, 000 ~ 35, 000 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 units per year
Delivery Time :
25 ~ 45 working days after we get the deposit
Packaging Details :
Two units can be loaded into a 40HQ container.
Boom :
30 ton
Under - lift :
11 .3 ton
Winch :
2 units 10 ton ( 22 , 000 lbs )
Manual control :
Manual control on both left side and right side
Remote control :
Wireless remote control optional.
Front leg :
1 pair
Rear leg :
1 pair
Light Pylon :
Steel
Description

INT 30 Tow Truck Upper Body For Dongfeng 153 Heavy Duty Road Wrecker

Description :

Combining maneuverability and heavy capacity, the INT - 30 is one of the best units to work with everyday , anywhere . This unit is designed for owners and operators who work every day in very tight environments .

Our INT - 30 is over - built to ensure durability and long - life ; this will protect your investment and keep you on the road longer and hauling more vehicles faster . Owners and fleet operators alike will quickly discover that this light duty wrecker is the best value that ' s available on the market today .

As with all SUNY Tow Trucks , customization is the order of the day and we ' ll build your wrecker the way you want it . Don ' t hesitate to inquire , standard and customized wreckers are surprisingly inexpensive .

Specifications :

INT 30 Tow Truck Upper Body For Dongfeng 153 Heavy Duty Road Wrecker

UNDERLIFT SPECIFICATIONS
Tow Rating 25 ton ( 55 , 000 lbs )
Retracted capacity on forks 11 . 3 ton ( 25 , 000 lbs ) / 9 . 5 ton ( 21 , 000 lbs )
Retracted distance to the forks 1634 mm ( 64 " ) / 1701 mm ( 67 " )
Extended capacity on forks 6 . 8 ton ( 15 , 000 lbs ) / 5 ton ( 11 , 000 lbs )
Extended distance to the forks 3466 mm ( 136 " ) / 3657 mm ( 144 " )
Tilt angles - 9 °
BOOM SPECIFICATIONS at 34 °
Retracted capacity 30 ton ( 66 , 100 lbs )
Extended capacity 15 ton ( 33 , 000 lbs )
Extended capacity 34 °
Maximum hook height 5746 mm ( 226 " )
Reach past tailboard 3132 mm ( 123 " )
WINCH SPECIFICATIONS
Quantity 2 winches
Pulling force ( on 1st layer ) 10 ton ( 22 , 000 lbs )
Winch Type Planetary
Cable length 16 mm x 60 m ( 5 / 8 " x 200 ' )
CHASSIS REQUIREMENTS
FA axle ( s ) weight ( min ) 5 . 4 ton ( 12 , 000 lbs )
RA axle ( s ) weight ( min ) Single 10.4 ton ( 23 , 000 lbs ) or
Tandem 2 x 9 ton ( 20 , 000 lbs )
Clear CA 3962 mm ( 156 " )
Recomended GVW 15 ton ( 33 , 000 lbs )

Standard Features
  • 3962 mm ( 156 " ) CA standard steel body
  • Frame fork holders
  • Frame fork racks
  • Chain racks
  • 4 sets of frame forks
  • Chrome door handle
  • Driver and passenger side manual controls
  • Safety chains
Options :
  • Wireless Remote Control
  • 20 ton ( 44 , 000 lbs ) winches
  • 609 mm ( 24 " ) , 762 mm ( 30 " ) , 914 mm ( 36 " ) , 1219 mm ( 48 " ) , 1828 mm ( 72 " ) tunnel box
  • Custom length tunnel box
  • Extra frame forks
  • Wheel lift receivers for single / double tires
  • Full recovery tool package
  • Custom storage system
  • Aluminum / Composite body
  • European body style
  • Gravel guard undercoating finish
  • Front push bumper
  • XP , X - shape side puller
  • Chrome hand rails
  • A - arm style side winches
  • In cab controls
  • European style low under lift
  • Full size LED light bar
  • LED - working lights, strobe lights , lights inside toolbox
  • Custom painting
  • Installation services and extended warranty
  • Tow operators education & training

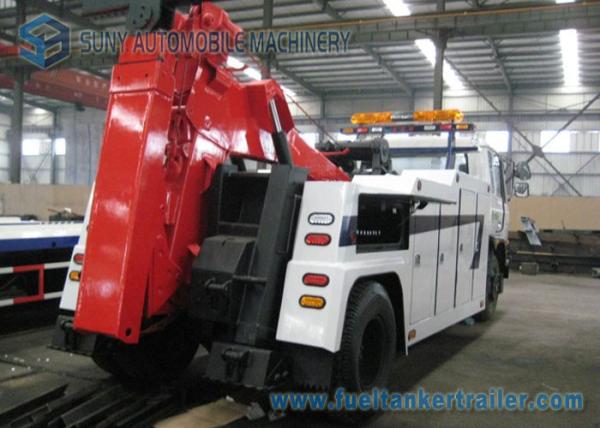

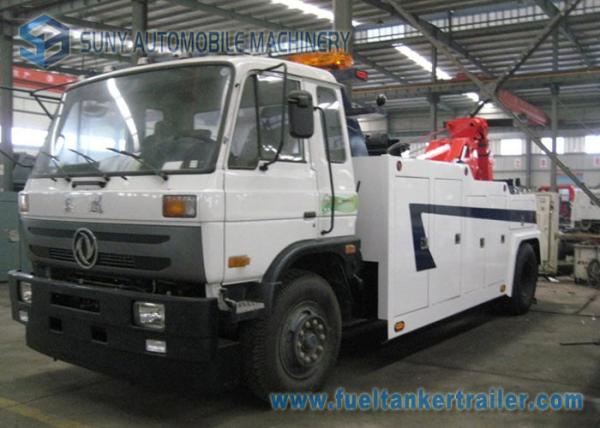

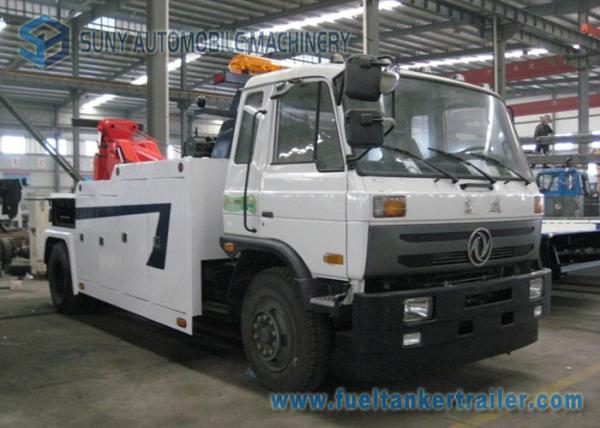

More Pictures :
