Specifications
Brand Name :
SUNY
Model Number :
SYWUINT35
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 17, 000 ~ 35, 000 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 units per year
Delivery Time :
25 ~ 45 working days after we get the deposit
Packaging Details :
Two units can be loaded into a 40HQ container.
Boom :
35 ton
Under - lift :
25 ton
Winch :
2 units 20 ton ( 44 , 000 lbs )
Manual control :
Manual control on both left side and right side
Remote control :
Wireless remote control optional.
Front leg :
1 pair
Rear leg :
1 pair
Light Pylon :
Steel
Description

HOWO 6X4 Tow Truck Heavy Duty With INT 35 Wrecker Truck Upper Body

Description :

Our INT - 35 unit is an everyday heavy wrecker ideal for every job from a tractor trailer to recovery calls . This unit will spend little time in you yard as it will always be grabbing the lucrative calls . It has been designed from the ground up with the operator in mind for towing and recovery calls and to work with loads up to 35 ton ( 77 , 000 lbs ) .

Our INT - 35 is over - built to ensure durability and long - life ; this will protect your investment and keep you on the road longer and hauling more vehicles faster . Owners and fleet operators alike will quickly discover that this light duty wrecker is the best value that ' s available on the market today .

As with all Suny Tow Trucks , customization is the order of the day and we ' ll build your wrecker the way you want it . Don ' t hesitate to inquire , standard and customized wreckers are surprisingly inexpensive .

Specifications :

HOWO 6X4 Heavy Duty Road Wrecker With INT 35 Tow Truck Upper Body

UNDERLIFT SPECIFICATIONS
Tow Rating 36 . 2 ton ( 80 , 000 lbs )
Retracted capacity on forks 24 . 9 ton ( 55 , 000 lbs )
Retracted distance to the forks 1514 mm ( 60 " ) / 1701 mm ( 67 " )
Extended capacity on forks 7 . 2 ton ( 16 , 000 lbs )
Extended distance to the forks 2936 mm ( 116 " ) / 3657 mm ( 144 " )
Tilt angles - 6 °

BOOM SPECIFICATIONS at 32 °
Retracted capacity 35 ton ( 77 , 100 lbs )
Extended capacity 17 , 5 ton ( 38 , 500 lbs )
Extended capacity 32 °
Maximum hook height 5913 mm ( 233 " )
Reach past tailboard 3373 mm ( 133 " )

WINCH SPECIFICATIONS
Quantity 2 winches
Pulling force ( on 1st layer ) 20 ton ( 44 , 000 lbs )
Winch Type Planetary
Cable length 19 mm x 60 m ( 3 / 4 " x 200 ' )

CHASSIS REQUIREMENTS
FA axle ( s ) weight ( min ) 6 ton ( 13 , 200 lbs )
RA axle(s) weight (min) 2 x 9 ton ( 20 , 000 lbs )
Recomended Tire size R22 . 5
Clear CA 4114 mm ( 162 " )
Recomended GVW 24 ton ( 53 , 200 lbs )

Standard Features

  • 4114 mm ( 162 " ) Cab to centre of tandem steel body
  • Frame fork holders
  • Frame fork racks
  • Chain racks
  • 4 sets of frame forks
  • Chrome door handle
  • Driver and passenger side manual controls
  • Safety chains

Options :

  • Wireless remote control
  • 609 mm ( 24 " ) , 762 mm ( 30 " ) , 914 mm ( 36 " ) , 1219 mm ( 48 " ) , 1828 mm ( 72 " ) tunnel box
  • Custom length tunnel box
  • Extra frame forks
  • Wheel lift receivers for single / double tires
  • Full recovery tool package
  • Custom storage system
  • Aluminum / Composite body
  • European body style
  • Gravel guard undercoating finish
  • Front push bumper
  • XP , X - shape side puller
  • Chrome hand rails
  • A - arm style side winches
  • In cab controls
  • European style low under lift
  • Full size LED light bar
  • LED - working lights, strobe lights , lights inside toolbox
  • Custom painting
  • Installation services and extended warranty
  • Tow operators education & training

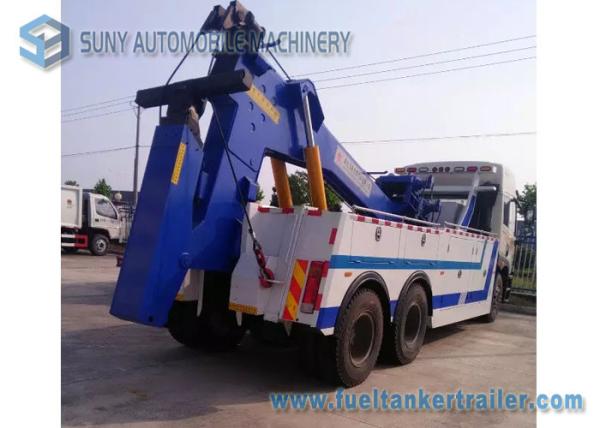

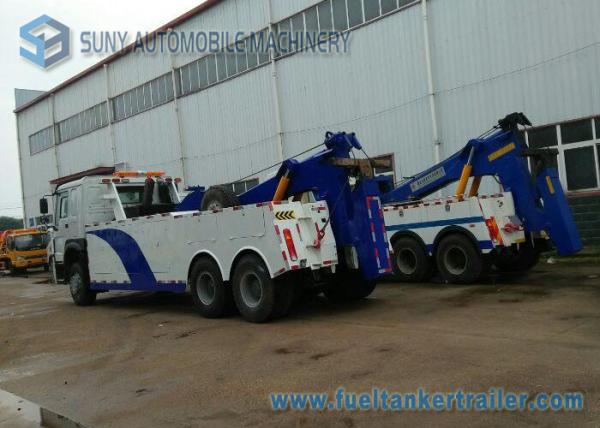

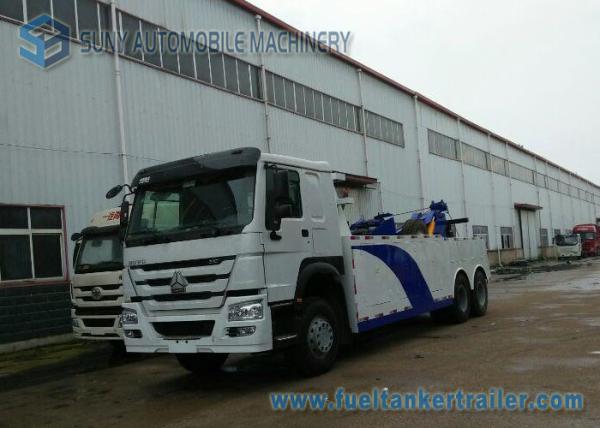

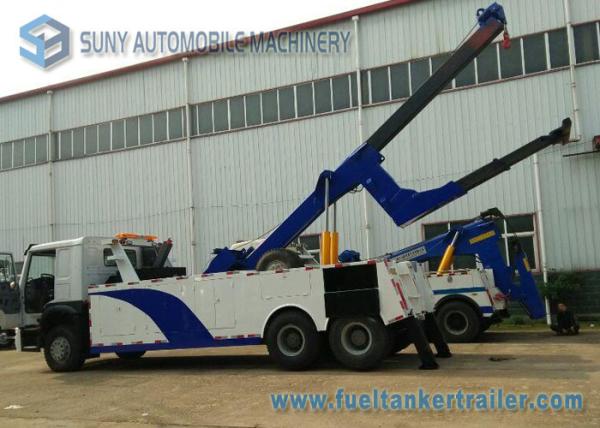

More Pictures :

HOWO 6X4 Wrecker Tow Truck Heavy Duty With INT 35 Wrecker Truck Upper Body
