Specifications
Brand Name :
SUNY
Model Number :
SYWUINT60
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 27, 000 ~ 65, 000 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 units per year
Delivery Time :
25 ~ 45 working days after we get the deposit
Packaging Details :
Two units can be loaded into a 40HQ container.
Boom :
60 ton
Under - lift :
25 ton
Winch :
2 units 25 ton ( 55 , 000 lbs )
Manual control :
Manual control on both left side and right side
Remote control :
Wireless remote control optional.
Front leg :
1 pair
Rear leg :
1 pair
Light Pylon :
Steel
Description

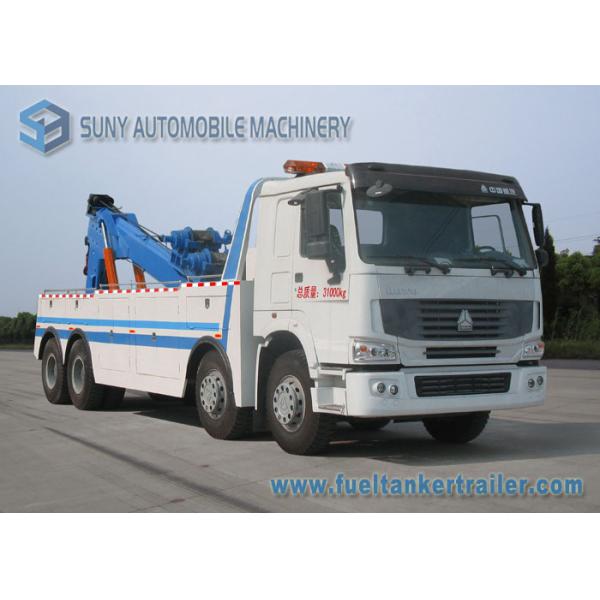

12 Wheeler HOWO Heavy Duty Wrecker With INT 60 Recovery Truck Body

Description :

The INT - 60 is a massive towing unit . It is the king of the INT series . It combines tough towing and recovery performance for the most demanding jobs . Designed for practicality and reliability , this unit is definitely different form the usual Heavy Duty wrecker .

Our INT - 60 is over - built to ensure durability and long - life ; this will protect your investment and keep you on the road longer and hauling more vehicles faster . Owners and fleet operators alike will quickly discover that this light duty wrecker is the best value that ' s available on the market today .

As with all SUNY Tow Trucks , customization is the order of the day and we ' ll build your wrecker the way you want it . Don ' t hesitate to inquire , standard and customized wreckers are surprisingly inexpensive .

Specifications :

12 Wheeler HOWO Heavy Duty Wrecker With INT 60 Recovery Truck Body

UNDERLIFT SPECIFICATIONS
Tow Rating 36 ton ( 80 , 000 lbs )
Retracted capacity on forks 25 ton ( 55 , 000 lbs ) / 23 ton ( 51 , 000 lbs )
Retracted distance to the forks 1484 mm ( 58 " ) / 1701 mm ( 67 " )
Extended capacity on forks 8 . 1 ton ( 18 , 000 lbs ) / 6 . 3 ton ( 14 , 000 lbs )
Extended distance to the forks 3285 mm ( 129 " ) / 3657 mm ( 144 " )
Tilt angles - 6 °
BOOM SPECIFICATIONS at 40 °
Retracted capacity 60 ton ( 132 , 200 lbs )
Extended capacity 15 ton ( 33 , 000 lbs ) 3rd stage
Maximum Lift angle 40 °
Maximum hook height 3rd stage : 8925 mm ( 351 " )
Reach past tailboard 3rd stage : 6411 mm ( 252 " )
WINCH SPECIFICATIONS
Quantity 2 Winches
Pulling force ( on 1st layer ) 25 ton ( 55 , 000 lbs )
Winch Type Planetary
Cable length 22 mm x 60 m ( 7 / 8 " x 200 ' )
CHASSIS REQUIREMENTS
FA axle ( s ) weight ( min ) 6 . 6 ton ( 14 , 600 lbs )
RA axle ( s ) weight ( min ) 3 x 9 ton ( 20 , 000 lbs )
Recommended Tire size R22 . 5
Clear CA 4724mm ( 186 " )

Standard Features
  • 4724 mm ( 186 " ) Cab to centre of tandem steel body
  • Frame fork holders
  • Frame fork racks
  • Chain racks
  • 4 sets of frame forks
  • Chrome door handle
  • Driver and passenger side manual controls
  • Safety chains
Options :
  • Wireless remote control
  • 609 mm ( 24 " ) , 762 mm ( 30 " ) , 914 mm ( 36 " ) , 1219 mm ( 48 " ) , 1828 mm ( 72 " ) tunnel box
  • Custom length tunnel box
  • Extra frame forks
  • Wheel lift receivers for single / double tires
  • Full recovery tool package
  • Custom storage system
  • Aluminum / Composite body
  • European body style
  • Gravel guard undercoating finish
  • Front push bumper
  • XP , X - shape side puller
  • Chrome hand rails
  • A - arm style side winches
  • In cab controls
  • European style low under lift
  • Full size LED light bar
  • LED - working lights , strobe lights , lights inside toolbox
  • Custom painting
  • Installation services and extended warranty
  • Tow operators education & training
