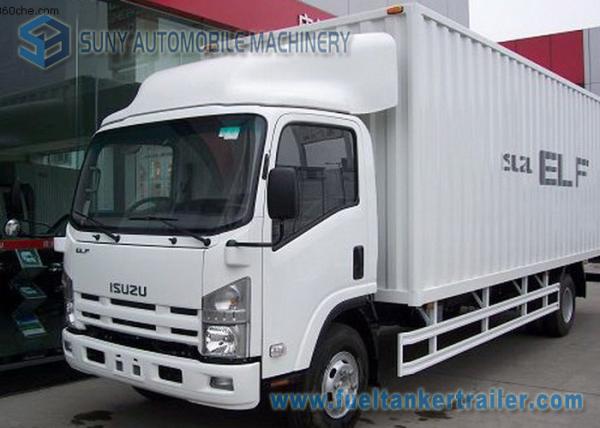

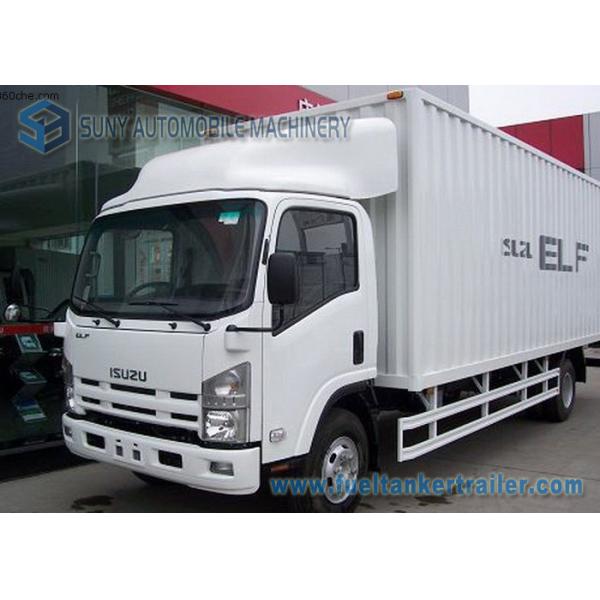

Japan I - SUZU Freezer Refrigerator Van Truck 175 Hp 10 Tons Load Capacity
Japan I - SUZU Freezer Refrigerator Van Truck 175 Hp 10 Tons Load Capacity
Japan I - SUZU Freezer Refrigerator Van Truck 175 Hp 10 Tons Load Capacity
Japan I - SUZU Freezer Refrigerator Van Truck 175 Hp 10 Tons Load Capacity
Japan I - SUZU Freezer Refrigerator Van Truck 175 Hp 10 Tons Load Capacity
Japan I - SUZU Freezer Refrigerator Van Truck 175 Hp 10 Tons Load Capacity
Japan I - SUZU Freezer Refrigerator Van Truck 175 Hp 10 Tons Load Capacity
Japan I - SUZU Freezer Refrigerator Van Truck 175 Hp 10 Tons Load Capacity
Japan I - SUZU Freezer Refrigerator Van Truck 175 Hp 10 Tons Load Capacity
Japan I - SUZU Freezer Refrigerator Van Truck 175 Hp 10 Tons Load Capacity
Specifications
Brand Name :
SUNY
Model Number :
QL1110
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 20,000 ~ 30,000 / Unit
Payment Terms :
T/T, L/C
Supply Ability :
500 Units / Month
Delivery Time :
15 ~ 20 working days
Packaging Details :
After Waxing by Container , RO-RO , Bulk Freighter
Van dimensions :
5062*2279*2053 mm
Wheel base :
3815 / 4475 mm
Load Capacity :
6000 kg ~ 10000 kg
Engine :
129 kw / 175 hp
Displacement (L) :
5.193
Number of gears :
6 forward gears & 1 reverse
left/right hand drive :
Optional
Cabin :
700p Cabin with A/C
Description

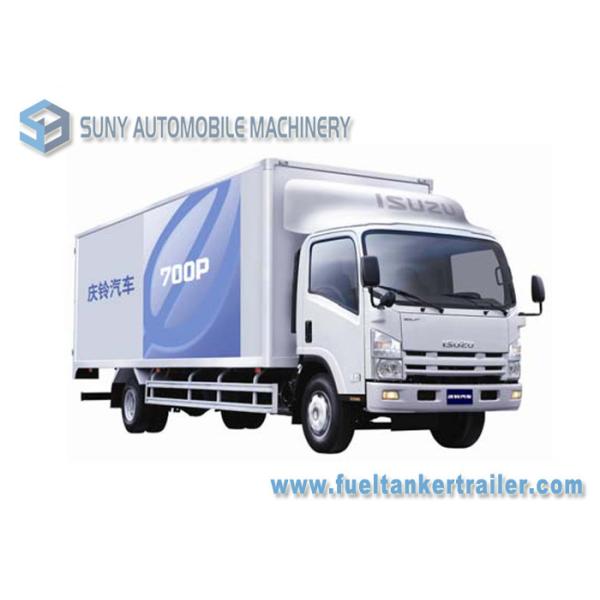

ISUZU Engine 175 Hp ISUZU 700P Refrigerated Box Truck Load 10T 4x2 Drive Type

Product Description:

Refrigerator is used to transport frozen or fresh goods enclosed van trucks, is equipped with refrigeration unit refrigeration device and polyurethane insulating refrigerated compartments of special transport vehicles, commonly used to transport frozen foods (ice truck), dairy (milk truck), fruits and vegetables (fresh carrier), vaccine and drug transporter (vaccine), etc

Refrigerating machine:Carrier,DONG IN,K brand,China brand, etc

Box materials Corrugated iron ,

Optional Stainless steel , aluminum, insulation materials , Refrigerated trucks

Drive Type : 4x2 Optional 4x4 6x4 6x6 8x4 8x8

Load Capacity : 6 T ~ 8 T ~ 10 T

Products Technical Specification
Chassis Brand ISUZU ISUZU
Product Name 4*2 Van Truck 4*2 Van Truck
Fuel type Diesel Diesel
Emission Standard Euro 3 Euro 3
Cabin 700P,Single row,with A/C 700P,Single row,with A/C
Whole Vehicle
main dimensions (mm)		 Overall dimensions (L×W×H) 7005*2396*3220 8155*2396*3350
Van dimensions 5062*2279*2053 6212*2250*2203
Wheel base 3815 4475
Front overhang 1110 1110
Rear overhang 2080 2570
Min. ground clearance 480 480
Weight data (kg) G.V.W 9315 9645
Curb weight (chassis) 4320 4560
Max payload 6000-10000 6000-10000
Whole vehicle
main performance		 Max. speed (km/h) 110 110
Max. slope of climb (%) 30 30
Engine Model 4HK1-TC 4HK1-TC
Maximum power 129kw / 175hp 129kw / 175hp
Number of cylinders 4 4
Displacement (L) 5.193 5.193
Engine Manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd. Qingling Isuzu (Chongqing) Engine Co., Ltd.
Gear box Number of gears MLD,6 forward gears & 1 reverse MLD,6 forward gears & 1 reverse
Axle Drive axle 7T 7T
Suspension Leaf spring 8/10+6 8/10+6
Steering Wheel left/right hand drive LHD LHD
Brake system Service brake Oil braking Oil braking
Electric device Rated voltage 24V 24V
Tyres & Quantity 8.25-16 & 6+1 8.25-16 & 6+1
Up-parts Description
Van description Equipped with rear door , Box materials Corrugated iron Equipped with rear door , Box materials Corrugated iron
Japan I - SUZU Freezer Refrigerator Van Truck 175 Hp 10 Tons Load CapacityJapan I - SUZU Freezer Refrigerator Van Truck 175 Hp 10 Tons Load Capacity

Japan I - SUZU Freezer Refrigerator Van Truck 175 Hp 10 Tons Load CapacityJapan I - SUZU Freezer Refrigerator Van Truck 175 Hp 10 Tons Load Capacity
