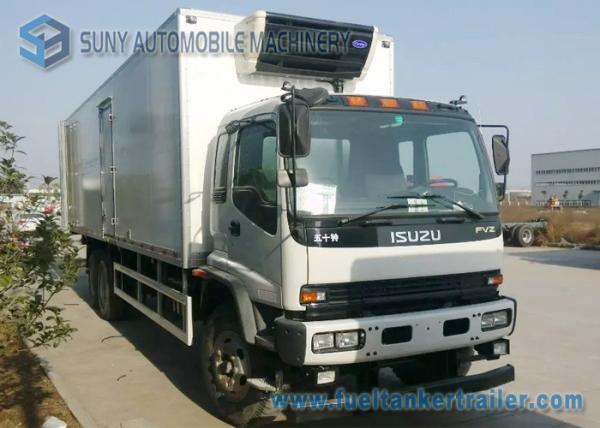

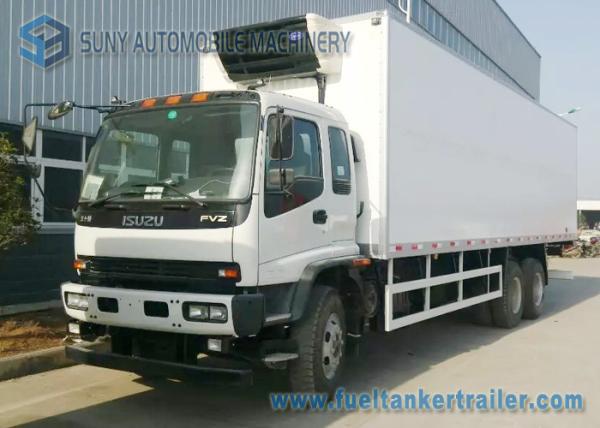

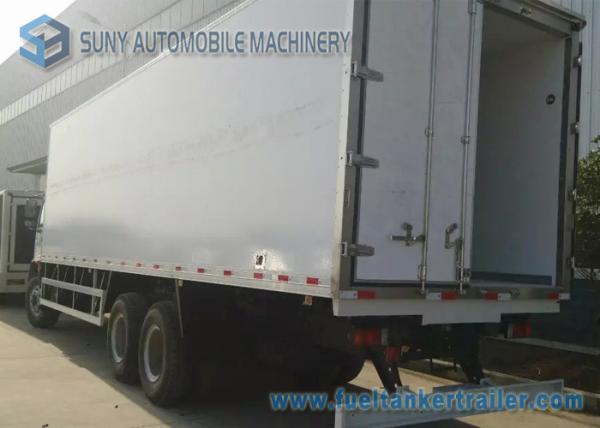

25 T ISUZU 6x4 refrigerated truck transportation Original Japan Import Engine 360 HP
25 T ISUZU 6x4 refrigerated truck transportation Original Japan Import Engine 360 HP
25 T ISUZU 6x4 refrigerated truck transportation Original Japan Import Engine 360 HP
25 T ISUZU 6x4 refrigerated truck transportation Original Japan Import Engine 360 HP
25 T ISUZU 6x4 refrigerated truck transportation Original Japan Import Engine 360 HP
25 T ISUZU 6x4 refrigerated truck transportation Original Japan Import Engine 360 HP
Specifications
Brand Name :
SUNY
Model Number :
CYZ51Q
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 50,000 ~ 78,000 / Unit
Payment Terms :
T/T, L/C
Supply Ability :
500 Units / Month
Delivery Time :
15 ~ 20 working days
Packaging Details :
After Waxing by Container , RO-RO , Bulk Freighter
Emission Standard :
Euro 3
Engine Maximum power :
265 KW / 360 HP Original Japan Import Engine
Number of cylinders :
6
Engine Model :
6WF1A
Gear box :
9 forward gears & 1 reverse
Drive Axle :
13 T
Brake System :
Air braking
Cargo Body Size :
7155*2310*2200 mm
Temperature Range :
-18°C to 0°C
Cargo Body Material :
FRP inside & outside of the van, polyurethane as the insulation
Cabin :
Half row , With A/C
Color and Logo :
Optional
Description

25 T ISUZU 6x4 refrigerated truck transportation Original Japan Import Engine 360 HP


Thickness: FRP inside & outside of the van, polyurethane as the insulation.

Stainless steel, Q235A steel sheet or aluminum are all optional.
Refrigerators chosen from:
South korean Hanya, HuaSu.
American Thermoking, Carrier.
Chinese Xinfei, Kingbo, etc.


Temperature reaches from -5°C to -18°C
Total capacity: approx. 20000 KG ~ 25000 KG ~ Max .35000 KG
Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional.

Products Technical Specification
Brand-Series ISUZU
Product Name 6x4 Refrigerated truck
Fuel type Diesel
Emission Standard Euro 3
Cabin Half row , With A/C
Chassis standard configuration
Chassis model CYZ51Q
Whole vehicle main dimensions (mm) Overall dimensions (L×W×H) 9640*2540*3680
Cargo body dimensions (L×W×H) 7155*2310*2200
Wheel base 4595+1310
Front / Rear track base 1855 / 1855
Front / Rear overhang 1335 / 2355
Weight data (kg) G.V.W 25000
Curb weight (chassis) 10100
Max payload 20000-25000
Whole vehicle
main performance		 Max. speed (km/h) 90
Max. slope of climb (%) 30
Engine Model 6WF1A
Maximum power 265 KW / 360 HP
Number of cylinders 6
Displacement (lit) 14.256
Engine Manufacturer Liuzhou Wuling Liu Power CO,.LTD
Gear box Number of gears 8 forward gears & 1 reverse
Axle Front / Rear Load capacity(ton) 8 / 13
Suspension Front / Rear Spring plate 9/10
Steering Wheel left/right hand drive LHD
Brake system Service brake Ail braking
Electric device Voltage (V) 24
Tire & Quantity 11.00R 20 & 10+1
Cargo Body Standard Configuration
Cargo Body Size (L×W×H) mm 7155*2310*2200
Cargo Body Material FRP inside & outside of the van, polyurethane as the insulation
Cargo body thickness 80mm
Back Door Single door
Side door Optional
Refrigeration systems Equipped with DT-500
Temperature Range Normal temperature,refrigeration temperature reached -18C to 0°C
Others

Stainless Steel door frame, Stainless steel corrugated floor,

Mark lamp at the four (4) corners f the body,

Room lamp will be provided inside the cabin.
  1. Van Material: Color plate inside,FRP outside of the van,polyurethane foam middle.stainless steel, Q235 steel sheet or aluminum are all optional.
    2.Refrigerators chosen brand from: South korean Hanya, HuaSu
  2. ;American Thermoking, Carrier;Chinese HANXUE, Kingbo, etc.
    3.Other spares like hooks, bottom slot, shelves,extra doors, etc. are all optional.

25 T ISUZU 6x4 refrigerated truck transportation Original Japan Import Engine 360 HP
