Specifications
Brand Name :
SUNY
Model Number :
BJ1311
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 50,000 ~ 70,000 / Unit
Payment Terms :
T/T, L/C
Supply Ability :
500 Units / Month
Delivery Time :
15 ~ 20 working days
Packaging Details :
After Waxing by Container , RO-RO , Bulk Freighter
Emission Standard :
Euro 3
Engine Maximum power :
280 KW / 380 HP
Number of cylinders :
6-cylinders
Gear box :
Fast 12 forward gears & 2 reverse
Drive Axle :
13 T
Brake System :
Air braking
Cargo Body Size :
9410*2310*2470 mm
Temperature Range :
-18°C to 0°C
Cargo Body Material :
FRP inside & outside of the van, polyurethane as the insulation
Cabin :
Half row , With A/C
Color and Logo :
Optional
Description

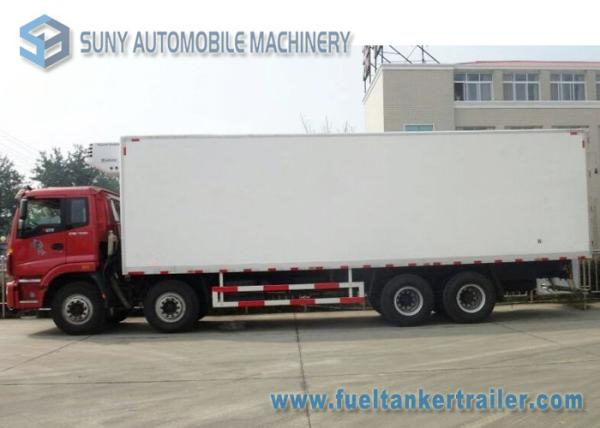

45-50 Cubic 8x4 Refrigerated Van And Truck Rentals FOTON - Auman 280 Kw / 380 Hp

8x4 FOTON AUMAN Refrigerated trucks, Refrigerator Trucks, Frozen Truck , Reefer Van Truck , Cooling Box Truck , Insulation Van Truck (no refrigerator unit)


Thickness: FRP inside & outside of the van, polyurethane as the insulation.

Stainless steel, Q235A steel sheet or aluminum are all optional.
Refrigerators chosen from:
South korean Hanya, HuaSu.
American Thermoking, Carrier.
Chinese Xinfei, Kingbo, etc.


Temperature reaches from -5°C to -18°C
Total capacity: approx. 30000 KG ~ 35000 KG ~ 40000kg ~ Max .45000 KG
Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional.

Products Technical Specification
Brand-Series FOTON-AUMAN
Product Name 8x4 Refrigerated truck
Fuel type Diesel
Emission Standard Euro 3
Cabin Half row , With A/C
Chassis standard configuration
Chassis model BJ1311
Whole vehicle main dimensions (mm) Overall dimensions (L×W×H) 11990*2530*3980
Cargo body dimensions (L×W×H) 9410*2310*2470
Wheel base 1800+4700+1350
Front / Rear track base 1960 / 1860
Front / Rear overhang 1555 / 2585
Weight data (kg) G.V.W 31000
Curb weight (chassis) 12750
Max payload 30000- 45000
Whole vehicle
main performance		 Max. speed (km/h) 90
Max. slope of climb (%) 30
Engine Model WP12.380E32
Maximum power 280 KW / 380 HP
Number of cylinders 6
Displacement (lit) 9.726
Engine Manufacturer Weichai Power
Gear box Number of gears 12 forward gears & 1 reverse
Axle Front / Rear Load capacity(ton) 7.5 / 13
Suspension Front / Rear Spring plate 3/3/5,13/14/12
Steering Wheel left/right hand drive LHD
Brake system Service brake Ail braking
Electric device Voltage (V) 24
Tire & Quantity 12. 00R 20 & 12+1
Cargo Body Standard Configuration
Cargo Body Size (L×W×H) mm 9410*2310*2470
Cargo Body Material FRP inside & outside of the van, polyurethane as the insulation
Cargo body thickness 80mm
Back Door Single door
Side door Optional
Refrigeration systems Equipped with DS-600
Temperature Range Normal temperature,refrigeration temperature reached -18C to 0°C
Others

Stainless Steel door frame, Stainless steel corrugated floor,

Mark lamp at the four (4) corners f the body,

Room lamp will be provided inside the cabin.
  1. Van Material: Color plate inside,FRP outside of the van,polyurethane foam middle.stainless steel, Q235 steel sheet or aluminum are all optional.
    2.Refrigerators chosen brand from: South korean Hanya, HuaSu
  2. ;American Thermoking, Carrier;Chinese HANXUE, Kingbo, etc.
    3.Other spares like hooks, bottom slot, shelves,extra doors, etc. are all optional.

Rear Door Optional Tail Plate (Electric Control Panel)
