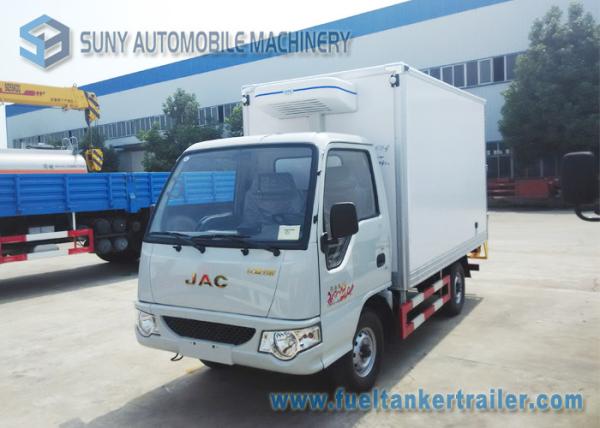

Gasoline Engine 82 HP 4x2 Mini Refrigerator Van Truck Transport Ice Cream 1 T
Gasoline Engine 82 HP 4x2 Mini Refrigerator Van Truck Transport Ice Cream 1 T
Gasoline Engine 82 HP 4x2 Mini Refrigerator Van Truck Transport Ice Cream 1 T
Gasoline Engine 82 HP 4x2 Mini Refrigerator Van Truck Transport Ice Cream 1 T
Specifications
Brand Name :
SUNY
Model Number :
HFC1020
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 8,000 ~ 15,000 / Unit
Payment Terms :
T/T, L/C
Supply Ability :
500 Units / Month
Delivery Time :
10 ~ 15 working days
Packaging Details :
After Waxing by Container , RO-RO , Bulk Freighter
Emission Standard :
Euro 4
Engine Maximum power :
60.5 KW / 82 HP Gasoline Engine
Number of cylinders :
4
Displacement (lit) :
1.298
Gear box :
5 forward gears & 1 reverse
Axle Load Capacity :
1 T / 2 T
Brake System :
Oil braking
Cargo Body Size :
3040*1500*1640 mm
Temperature Range :
-10°C to 0°C
Cargo Body Material :
FRP inside & outside of the van, polyurethane as the insulation
Cabin :
Single row, Optional A/C
Color and Logo :
Optional
Description

Gasoline Engine 82 HP 4x2 Mini Refrigerated Box Truck Transport Ice Cream 1 T


Thickness: FRP inside & outside of the van, polyurethane as the insulation.

Stainless steel, Q235A steel sheet or aluminum are all optional.
Refrigerators chosen from:
South korean Hanya, HuaSu.
American Thermoking, Carrier.
Chinese Xinfei, Kingbo, etc.


Temperature reaches from -5°C to -18°C
Total capacity: approx. 500 KG ~ 1000 KG ~ Max .1500 KG
Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional.

Products Technical Specification
Brand-Series JAC
Product Name mini Refrigerated truck
Fuel type Gasoline
Emission Standard Euro 4
Cabin Single row, With A/C
Chassis standard configuration
Chassis model HFC1020
Whole vehicle main dimensions (mm) Overall dimensions (L×W×H) 4850*1640*2580
Cargo body dimensions (L×W×H) 3040*1500*1640
Wheel base 2400 / 2600
Front / Rear track base 1260 / 1360
Front / Rear overhang 1030 / 1295
Weight data (kg) G.V.W 2325
Curb weight (chassis) 1635
Max payload 500-1500
Whole vehicle
main performance		 Max. speed (km/h) 95
Max. slope of climb (%) 30
Engine Model LJ474Q3E2
Maximum power 60.5 KW / 82 HP
Number of cylinders 4
Displacement (lit) 1.298
Engine Manufacturer Liuzhou Wuling Liu Power CO,.LTD
Gear box Number of gears 5 forward gears & 1 reverse
Axle Front / Rear Load capacity(ton) 1 / 2
Suspension Front / Rear Spring plate 7/4+5
Steering Wheel left/right hand drive LHD
Brake system Service brake Oil braking
Electric device Voltage (V) 24
Tire & Quantity 6.00-13 8PR & 4+1
Cargo Body Standard Configuration
Cargo Body Size (L×W×H) mm 3040*1500*1640
Cargo Body Material FRP inside & outside of the van, polyurethane as the insulation
Cargo body thickness 80mm
Back Door Single door
Side door Optional
Refrigeration systems Equipped with DT-110
Temperature Range Normal temperature,refrigeration temperature reached -10°C to 0°C
Others

Stainless Steel door frame, Stainless steel corrugated floor,

Mark lamp at the four (4) corners f the body,

Room lamp will be provided inside the cabin.
  1. Van Material: Color plate inside,FRP outside of the van,polyurethane foam middle.stainless steel, Q235 steel sheet or aluminum are all optional.
    2.Refrigerators chosen brand from: South korean Hanya, HuaSu
  2. ;American Thermoking, Carrier;Chinese HANXUE, Kingbo, etc.
    3.Other spares like hooks, bottom slot, shelves,extra doors, etc. are all optional.
