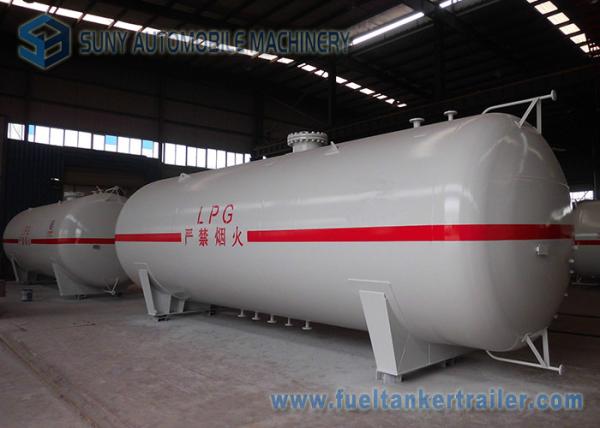

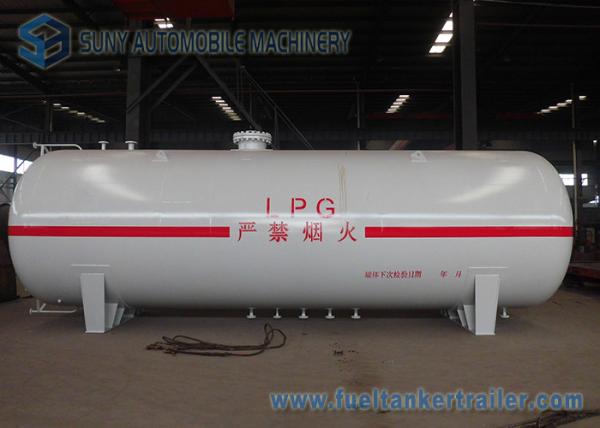

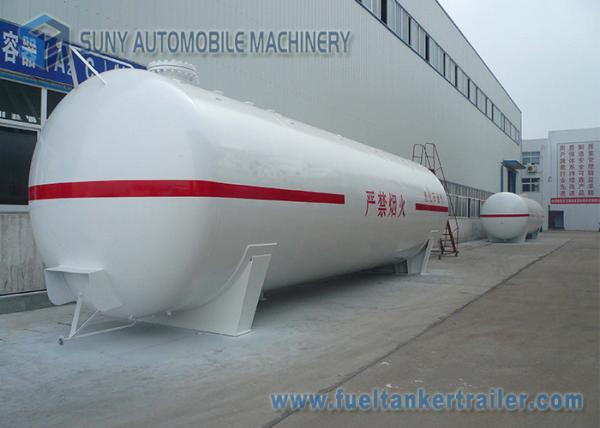

Round / Ellipse Safety LPG Tank Trailer 25000L Horizontal Bulk
Round / Ellipse Safety LPG Tank Trailer 25000L Horizontal Bulk
Round / Ellipse Safety LPG Tank Trailer 25000L Horizontal Bulk
Round / Ellipse Safety LPG Tank Trailer 25000L Horizontal Bulk
Round / Ellipse Safety LPG Tank Trailer 25000L Horizontal Bulk
Round / Ellipse Safety LPG Tank Trailer 25000L Horizontal Bulk
Round / Ellipse Safety LPG Tank Trailer 25000L Horizontal Bulk
Round / Ellipse Safety LPG Tank Trailer 25000L Horizontal Bulk
Specifications
Brand Name :
SUNY
Model Number :
SY25LPG
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD10800 ~ 14200/ unit
Supply Ability :
1000 units/ year
Packaging Details :
nude with wax protection
Material :
Q345R, Q370R
Shape :
round, ellipse
Diameter :
2000 mm, 2100 mm, 2200 mm
Volume :
25 m3, 25 cbm, 25000 liters, 25000 L
Design pressure :
1.77 Mpa
Medium density :
420 ~ 590 kg / m3
Description

Round / Ellipse Safety LPG Tank Trailer 25000L Horizontal Bulk

Description & Applications:

  1. LPG propane gas storage tank volume: 25 m3, 25 cbm, 25000 L, 25000 liters;
  2. LPG propane gas storage tank diameter: 2000 mm, 2200 mm, 2200 mm;
  3. LPG propane gas storage tank material: Q345R, Q370R;
  4. optional accessories: Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc.
  5. Designing pressure:1.77 Mpa Designing temperature: -20 °C to 54 °C.
  6. The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity, light weight and high efficiency.
  7. We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding seam pass the examination of level one radiographic test.
  8. There are high safety domestic or imported safety accessories for customers option.
  9. The anti-corrosion coating of LPG tanker adopt the following process, sandblast, spray painting, purging and so on

Competitive Advantage:

  1. Factory direct sales, fast delivery
  2. Lowest price comparing the same quality
  3. High Quality, good performance,
  4. 18 months warranty, main beam whole life time grantee!
  5. ISO, CCC, SGS, ASME certificate

Specifications:

tank diameter 2000mm 2100mm 2200mm
tank type III III III
working Medium LPG (propane) LPG(propane) LPG(propane)
Design Specific Gravity 0.42 Kg/M3 0.42 Kg/M3 0.42 Kg/M3
media characteristics Flammable and explosive flammable and explosive flammable and explosive
capacity 25M3 25M3 25M3
External Dimensions (length*width*height) 8304*2024*2614mm 7594*2124*2714mm 7008*2224*2814mm
tank weight (nominal) 6120kg 5970kg 6020kg
max payload weight 9975kg 9975kg 9975kg
tank material Q345R Q345R Q345R
Barrel design thickness 12mm 12mm 12mm
Head design thickness 12mm 12mm 14mm
welded joint coefficient 1.0 1.0 1.0
design temperature 50ºC 50ºC 50ºC
working temperature -20~50 ºC -20~50 ºC -20~50 ºC
Corrosion allowance 1.0 mm 1.0 mm 1.0 mm
design pressure 1.77 MPa 1.77 MPa 1.77 MPa
Hydraulic test pressure 2.22 MPa 2.22 MPa 2.22 MPa
leak test pressure 1.77 MPa 1.77 MPa 1.77 MPa
Heat treatment type Wholly get rid of tress Wholly get rid of tress Wholly get rid of tress
Paint paint white color, or paint the color you request. paint white color, or paint the color you request. paint white color, or paint the color you request.
The first install Accessories Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter

Round / Ellipse Safety LPG Tank Trailer 25000L Horizontal BulkRound / Ellipse Safety LPG Tank Trailer 25000L Horizontal Bulk

Round / Ellipse Safety LPG Tank Trailer 25000L Horizontal Bulk
