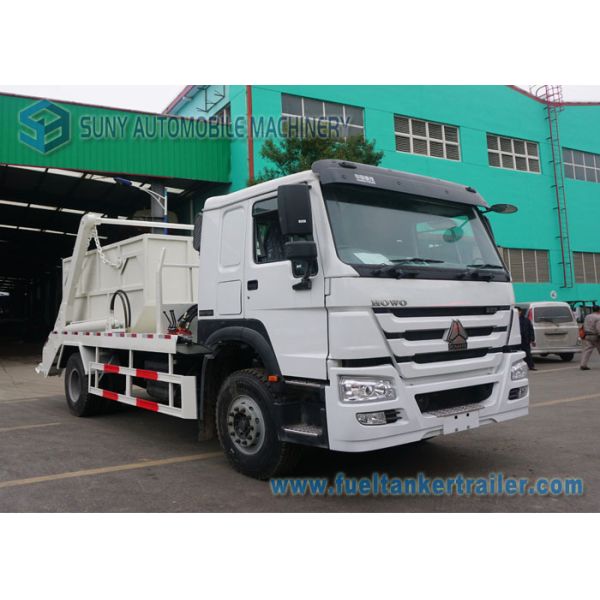

Sinotruk 12m3 Swing Arm Garbage truck HOWO Chassis 4x2 Drive 266hp
Sinotruk 12m3 Swing Arm Garbage truck HOWO Chassis 4x2 Drive 266hp
Sinotruk 12m3 Swing Arm Garbage truck HOWO Chassis 4x2 Drive 266hp
Sinotruk 12m3 Swing Arm Garbage truck HOWO Chassis 4x2 Drive 266hp
Sinotruk 12m3 Swing Arm Garbage truck HOWO Chassis 4x2 Drive 266hp
Sinotruk 12m3 Swing Arm Garbage truck HOWO Chassis 4x2 Drive 266hp
Sinotruk 12m3 Swing Arm Garbage truck HOWO Chassis 4x2 Drive 266hp
Sinotruk 12m3 Swing Arm Garbage truck HOWO Chassis 4x2 Drive 266hp
Specifications
Brand Name :
SUNY
Model Number :
SY1211BBLJ
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 60,000~-90.000 FOB Shanghai
Supply Ability :
1000 units per year
Packaging Details :
Ro-ro shipping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Garbage Container load :
12m3
Engine emission standard :
euro 2, euro 3, euro 4, euro 5
Cab :
HW76
Truck chassis wheelbase :
4600mm
Garbage Container material :
side 3 mm, bottom 4mm
Chassi brand :
HOWO
Chassis item :
ZZ1167M4611
Engine :
WD615.62
Garbage Container shape :
aqusre shape, boat shap, bucket shape
Description

Sinotruk 12m3 Swing Arm Garbage truck HOWO Chassis 4x2 Drive 266hp

Description:

1, The large hydraulic cylinder drive the double arms, to install hydraulic legs to make sure the stability and safety of vehicle during operation.

2, the type of garbage box: sealed, semi-enclosed. The shape of garbage box: rectangular shape, trapezoidal.

3, The characterized of this vehicle: cargo compartment and vehicle body can be separated. One vehicle can work with more one garbage cargo body, recycling transport, improve the transport capacity, specially for short-distance transport, such as the sanitation department.

Competitive Advantage:

1- strict quality control ---- stable and good quality for each truck.

2- competitive price ----- based on same product, our price is most competitive

3- powful R & D capabilities ------ we can design and produce the truck according to different countries’ demand.

4- best service ----- we cherish each customer and opportunity.

Specifications:

Sinotruk 12m3 Swing Arm Garbage truck HOWO Chassis 4x2 Drive 266hp

Chassis ZZ1167M4611
Engine

Make: Sinotruk

Diesel: 4-stroke direct injection Diesel engine

Engine model: WD615.62, Euro Ⅱ

6-cylinder in-line with water cooling, turbo-charging and inter cooling

Maximum output: 266 hp (196 KW)

Maximum torque: 1100N.m

Number of cylinder: 6
Cab

HW76, One sleeper, two seats with air-conditioner, safety belts with double locking

mechanism, new face, exterior sun visor.
Clutch Single-plate dry clutch, hydraulically operating with air assistance
Transmission

HW13710 , 10 forward & 2 reverse

Max.toque: 1350Nm
Front Axle HF7 Max.Loading: 7000Kgs
Rear Axle ST16 Max Loading: 16000Kgs
Steering ZF, Power Steering and Right Hand Driving
Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake
Wheels & Tyres Tyre: 12.00R20 (Radial)
Max.Speed 90km/H
Dimensions in mm

Wheel base 4600

Front overhang 1500

Rear overhang 2277

Approach angle(°) 23

Departure angle(°) 15

Overall dimension(L x W x H mm) 8200×2500×3350
Weight in kg

Dead weight 8405

Gross vehicle weight 16000
Body

Volume of body(m3) 12

Discharging Angle (°) ≥ 100

Lifting Unloading Time (s) ≤ 50

Angle of swing arm 130±1°

Body dimension 3600*2000*1600mm

Body thickness floor 8mm side 6mm

Sinotruk 12m3 Swing Arm Garbage truck HOWO Chassis 4x2 Drive 266hp
