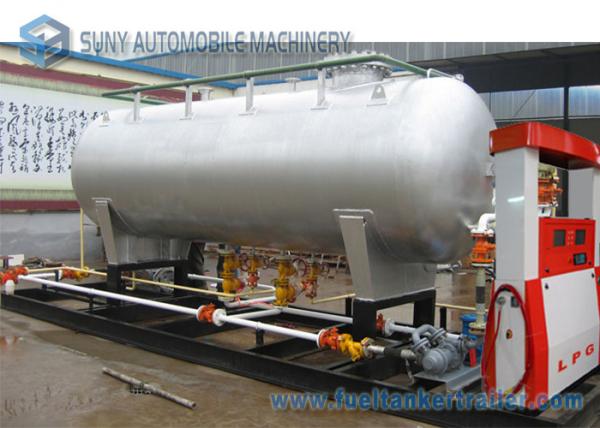

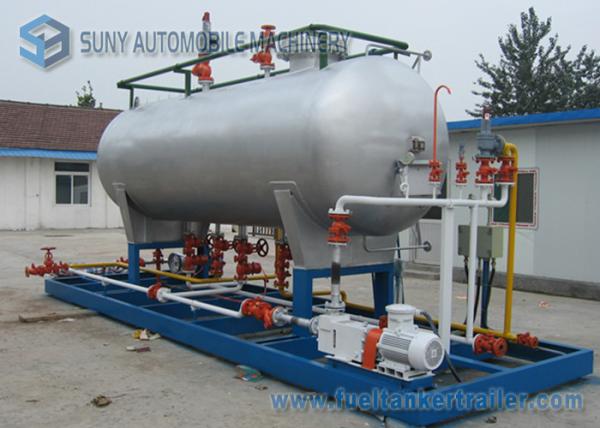

20000 Liters LPG Skid Station , 20M3 LPG Skid Plant 1.77 Mpa Design pressure
20000 Liters LPG Skid Station , 20M3 LPG Skid Plant 1.77 Mpa Design pressure
20000 Liters LPG Skid Station , 20M3 LPG Skid Plant 1.77 Mpa Design pressure
20000 Liters LPG Skid Station , 20M3 LPG Skid Plant 1.77 Mpa Design pressure
20000 Liters LPG Skid Station , 20M3 LPG Skid Plant 1.77 Mpa Design pressure
20000 Liters LPG Skid Station , 20M3 LPG Skid Plant 1.77 Mpa Design pressure
20000 Liters LPG Skid Station , 20M3 LPG Skid Plant 1.77 Mpa Design pressure
20000 Liters LPG Skid Station , 20M3 LPG Skid Plant 1.77 Mpa Design pressure
Specifications
Brand Name :
SUNY
Model Number :
SY-GYQ-20ST
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD21800 ~ 35000/ unit
Supply Ability :
1000 units/ year
Delivery Time :
25~35 days after we get the deposit
Packaging Details :
Ro-ro shipping / Bulk cargo shipping / Container shipping / SKD / CKD / etc.
Material :
Q345R, Q370R
Shape :
round, ellipse
Diameter :
1800mm, 2000 mm, 2100 mm, 2200 mm
Volume :
20 m3, 20 cbm, 20000 liters, 20000 L
Design pressure :
1.77 Mpa
Medium density :
420 ~ 590 kg / m3
Description

20000 Liters LPG Skid Station , 20M3 LPG Skid Plant 1.77 Mpa Design pressure

Description & Applications:

  1. LPG skid station volume: 20 m3, 20 cbm, 20000 L, 20000 liters;
  2. LPG skid plant tank diameter: 1800mm, 2100mm, 2000 mm, 2200 mm, ;
  3. LPG Filling skid Station tank material: Q345R, Q370R;
  4. Accessories: LPG dispenser , LPG pump, Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, other pipe etc.
  5. Designing pressure:1.77 Mpa Designing temperature: -20 °C to 54 °C.
  6. The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity, light weight and high efficiency.
  7. We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding seam pass the examination of level one radiographic test.
  8. There are high safety domestic or imported safety accessories for customers option.
  9. The anti-corrosion coating of LPG tanker adopt the following process, sandblast, spray painting, purging and so on

Competitive Advantage:

  1. Factory direct sales, fast delivery
  2. Lowest price comparing the same quality
  3. High Quality, good performance,
  4. 18 months warranty, main beam whole life time grantee!
  5. ISO, CCC, SGS, ASME certificate

Specifications:

Lpg skid station lpg propane skid station specification:

Items Descriptions Specifications and Types
General Item Name Portable LPG Gas Station
Loading Weight (kg) 84000
Tank volume (liters) 20000
LPG storage tank See the LPG storage tank specification
Gas Dispenser Rate of flow (m³/min) 1.5
Speed (R/m³) 730
Motor power(KW) 22
Equipment gas dispenser, gas gun,flow meter, pressure gauge, thermometer,discharge valve,etc
Filling accessories for MOBILE SKID LPG STATION
Item Specification Quantity
Hydrocarbon pump YQB15-5 1
Anti-static motor MM2JA160MBB 1
alarm QJ-D-99F 2
Liquid meter L=1800mm DN20 1
Safety valve A42F-25 DN50 1
Safety reflux valve AH42F-25 DN25 1
Check valve H42N-40 DN50 2
Stop valve J41N-40 DN50 25
J41N-40 DN32 1
J41N-40 DN25 4
J41N-40 DN20 2
J41N-40 DN20 10
Pipe safety valve A21F-25 DN15 1
Discharge pipe L=4M DN50/DN25 1
Shock tube L=500MM DN50 2
Filling gun with pipe L=2M 3
Elbow DN65 2
DN50 10
Flange 2.5mpa DN65 1
2.5mpa DN50 50
2.5mpa DN32 1
2.5mpa DN25 8
2.5mpa DN15 20

Electric filling

scale

 BSC-150 1
Metal pads DN65 5
DN50 80
DN32 2
DN25 10
DN20 2
DN15 30
bolt 16*70 300
16*55 100

LPG storage tank specification :

tank diameter 1800mm 2000mm 2100mm 2200mm
tank type III III III III
working Medium LPG (propane) LPG(propane) LPG(propane) LPG(propane)
Design Specific Gravity 0.42 Kg/M3 0.42 Kg/M3 0.42 Kg/M3 0.42 Kg/M3
media characteristics Flammable and explosive flammable and
explosive		 flammable and
explosive		 flammable and
explosive
capacity 20M3 20M3 20M3 20M3
External Dimensions (length*width*height) 8174*1820*2410mm 6724*2024*2614mm 6154*2124*2714mm 5608*2224*28514mm
tank weight (nominal) 4820kg 5150kg 5050kg 5080kg
max payload weight 7980kg 7980kg 7980kg 7980kg
tank material Q345R Q345R Q345R Q345R
Barrel design thickness 10mm 12mm 12mm 12mm
Head design thickness 12mm 12mm 12mm 14mm
welded joint coefficient 1.0 1.0 1.0 1.0
design temperature 50ºC 50ºC 50ºC 50ºC
working temperature -20~50 ºC -20~50 ºC -20~50 ºC -20~50 ºC
Corrosion allowance 1.0 mm 1.0 mm 1.0 mm 1.0 mm
design pressure 1.77 MPa 1.77 MPa 1.77 MPa 1.77 MPa
Hydraulic test pressure 2.22 MPa 2.22 MPa 2.22 MPa 2.22 MPa
leak test pressure 1.77 MPa 1.77 MPa 1.77 MPa 1.77 MPa
Heat treatment type Wholly get rid of tress Wholly get rid of tress Wholly get rid of tress Wholly get rid of tress
Paint paint white color, or paint the color you request. paint white color, or paint the color you request. paint white color, or paint the color you request. paint white color, or paint the color you request.
The first install Accessories Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter
