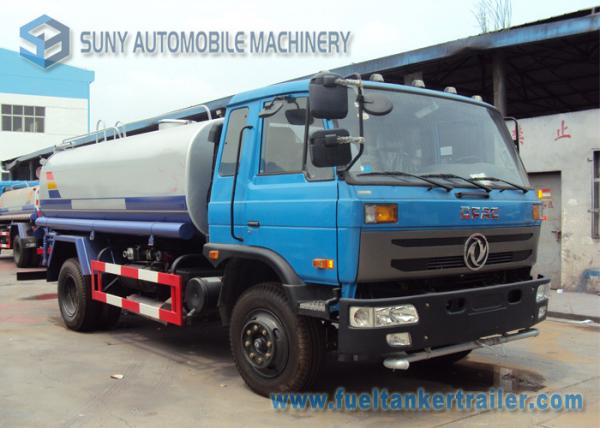

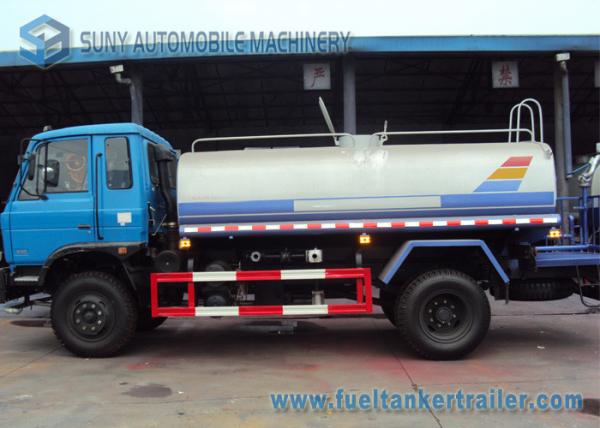

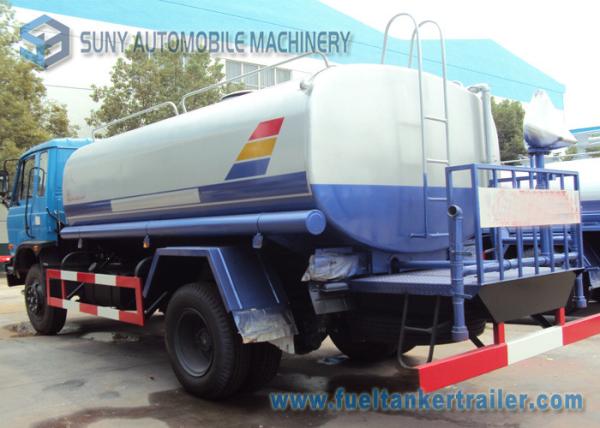

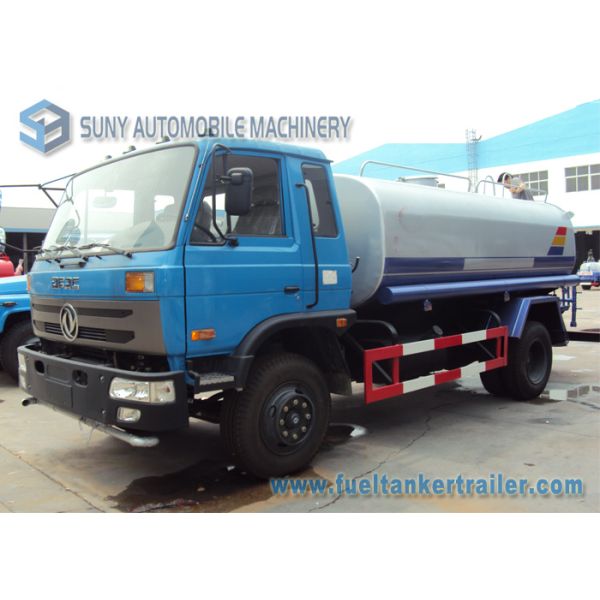

6000 L - 8000 L Sanitation Water Tanker Truck Dongfeng Chassis 4*2 Drive
6000 L - 8000 L Sanitation Water Tanker Truck Dongfeng Chassis 4*2 Drive
6000 L - 8000 L Sanitation Water Tanker Truck Dongfeng Chassis 4*2 Drive
6000 L - 8000 L Sanitation Water Tanker Truck Dongfeng Chassis 4*2 Drive
6000 L - 8000 L Sanitation Water Tanker Truck Dongfeng Chassis 4*2 Drive
6000 L - 8000 L Sanitation Water Tanker Truck Dongfeng Chassis 4*2 Drive
6000 L - 8000 L Sanitation Water Tanker Truck Dongfeng Chassis 4*2 Drive
6000 L - 8000 L Sanitation Water Tanker Truck Dongfeng Chassis 4*2 Drive
Specifications
Brand Name :
SUNY
Model Number :
SY5100SS
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD25000 /set- USD42000/set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
200 set per month
Delivery Time :
15-25 working days
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Chassis brand/ model :
Dongfeng/ EQ1110GLJ
Water tank capacity :
6000 L - 8000 L
Function :
Water transport and sprinkle
Dimension :
7120 * 2462 * 2710 mm
Drive :
4X2
Wheel base :
3950 mm
Engine :
YC6J180-30
G.V. W :
11495 kgs
Tank material :
Q235
Axles No. :
2
Description

6000 L - 8000 L Sanitation Truck Dongfeng Chassis 4*2 Drive

Description & application:

1- The water truck is for city environmental sanitation management, muicipal road maintenance.

2- It can sprinkle the water to clean the road. And the monitor can spray water to clean other facility on the road.

3- It also can transport the water to the palce you want.


Competitive Advantage:


1- powful R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different countries’ demand.
2- strict quality control ---- stable quality for each truck
3- competitive price ----- based on same product, our price is most competitive
4- best service ----- we cherish each customer and opportunity.

Specifications:

6000 L - 8000 L Water Tank Trucks Dongfeng Chassis 4*2 Drive

Vehicle Description
Type 4*2 water truck Overall dimensions(mm) 7120*2462*2710
GVW (kg) 11495 Mass in working order (kg) 4570
Fact cubage 5.67 Max speed (Km/h) 95
Chassis Description
Cab Single Chassis Mod EQ1110GLJ
Allowable Passengers In Cab 3 Air conditioner Optional
Wheel base(mm) 3950 Number of axles 2
F/R track base(mm) 1900/1800 F/R overhang(mm) 1250/1920
Approach/Departure angle(°) 33/22 Spring plate 8/11+8
F/R axle-load 3800/7695 Type of fuel Diesel
Tire specification 9.00-20 Tire quantity 6
Traction system 4*2 Operation control system Steering wheel
Braking system Air braking Electric system 24V
Engine Description
Engine model YC6J180-30
Exhaust/output 6500/132 Horse power 180
Engine Manufacturer Guangxi Yuchai Machinery Co., Ltd.
Up-parts Description
Tank Capacity 5-8m3
Tank Description

1. Shape:oval

2. Material:carbon steel

3.Thickness:5mm

All water truck can be make water wagon for transporting drinkinrg wate.
Standard Equipment

Equipped with front,rear, side sprinkler (sprinkling width>14m )

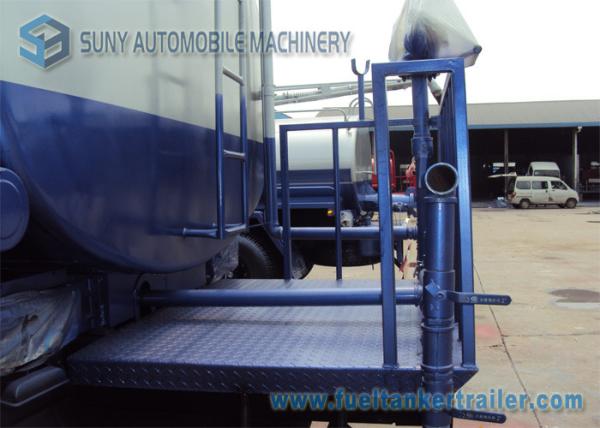

Equipped with rear working platform with water cannon which can be turned all-round

(range>28m),can be adjusted into flinging, heavy rain,light rain,drizzle model,

with security barrier.

Equipped with Hangzhou Weilong pump(suction lift>6m)

Equipped with fire valve, water valve, and filter gauze
Optional Equipment

Shower ,pneumatic valve,Honda pump,tool box

Optional other tire model
Production cycle 7-15 days
