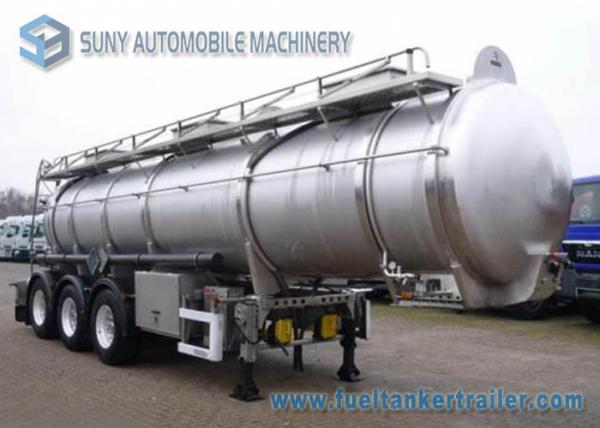

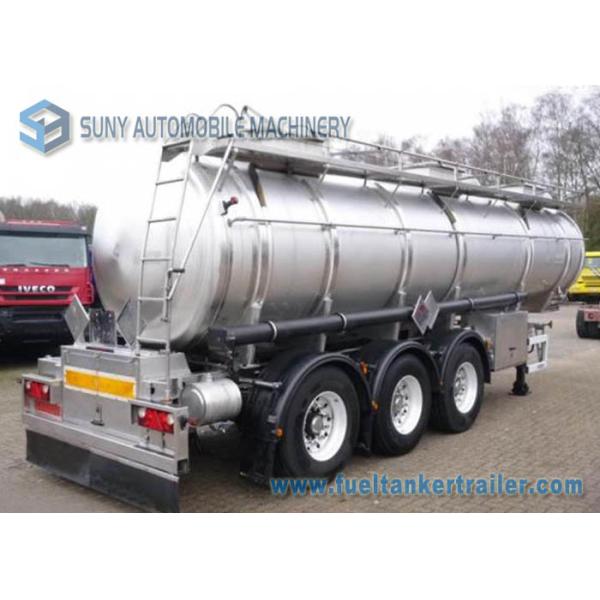

Model : SY9322GHGLA ( 22 m³ aluminum chemical tanker semi trailer )

DIMENSIONS & WEIGHT

Overall Dimensions ( L * W * H )

10200* 2490* 3900 mm

Volume

22 m³ = 22000 Liters

MAX. GVW

29000 kg

Kerb weight

7000 kg

Pay load

22000 kg

TANKER

Tank Material

Aluminum Alloy, inner is polyurethane epoxy, anti-corrosion

shape

Cylinder shape

Thickness of shell

aluminum 6 mm

Thickness of dish

aluminum 8 mm

Working temperature

-20 °C to + 70 °C

Compartments

The tank is divided in 1 room

Manhole

2 set of DN500 mm / SS304, with breath valve

Unloading valve

2 sets of DN80 fixed at bottom of tank

Pipeline at bottom of tank

4” seamless steel tube

Labeling system

Oil type indication

Anti-static electricity

Pulling, wire carrier, sheet copper (6 sheet standard layout)

RUNNING GEAR

Axle

BPW 3-pcs * 9 T axles, single wheel.

Tire & Rim

6-pcs * 3815 tyres (opting different brand tire)
6-pcs steel rim (opting aluminum alloy rim )

Suspension

Air suspension (opting Mechanical suspension )

King pin

JOST C200 2.0" kingpin (50#), opting 3.5”(90#)

Landing legs

1 pair . JOST

Air tank

2 set

Spring brake chamber

2-pcs T3030, 2-pc T30

Air connector

1 set stander air connector

Valve

1 pc WABCO ABS

Electrical system

Complete electrical system with 7 socked . 24 v.
One set of LED standard lambs; One set of standard cable.

Painting

One primer +final painting
All steel parts are sand blasted before painting. Anti-corrosion.
Primeer, finished urethane paint.
All painting are according to customer’s requirement.
Aluminum optional without painting.

ACCESSORIES

Mudguards

PVC Mudguards

Side protection

√

Spare tire carrier

√

Ladder

√

Guard on top of tank

√

Side guard

√

Rear bottom guard

√

Work tank deck

√

Fire extinguisher box

2 unit at the back of each side

Hand rail

√

Hose and Carrier

1-pc. hose carrier on left and right each side

Tool box

1 set tool box
