38000 L Chemical Oil Tank Trailer , Butyl Acetate Semi Trailer truck
38000 L Chemical Oil Tank Trailer , Butyl Acetate Semi Trailer truck
38000 L Chemical Oil Tank Trailer , Butyl Acetate Semi Trailer truck
38000 L Chemical Oil Tank Trailer , Butyl Acetate Semi Trailer truck
38000 L Chemical Oil Tank Trailer , Butyl Acetate Semi Trailer truck
38000 L Chemical Oil Tank Trailer , Butyl Acetate Semi Trailer truck
38000 L Chemical Oil Tank Trailer , Butyl Acetate Semi Trailer truck
38000 L Chemical Oil Tank Trailer , Butyl Acetate Semi Trailer truck
Specifications
Brand Name :
SUNY
Model Number :
SY9338GHGLS
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 39,000~ 70,000 FOB
Payment Terms :
T/T, L/C, Western Union, Paypal, MoneyGram,
Supply Ability :
1000 units/per year
Delivery Time :
35~45 days after we get the deposit
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Tank capacity :
38000 Liters = 38 m3
Tank material :
Stainless Steel
Chemical tank shape :
Cylinder shape
Working pressure :
0.9 bar
Working temperature :
-20° to +70°
Whole trailer dimension :
10620 * 2490 * 3850 mm
Chemical tank trailer :
3 axle BPW 12 ton
Suspension :
Mechanical suspension
Description

38000 L Chemical Tank Trailer , Butyl Acetate Semi Trailer truck


Description & Applications:

SUNY Automobile Manufacture chemical liquid transport truck and chemical tanker semi trailer, horizontal chemical liquid tank, chemical liquid tanker container. In accordance with the media different, we will recommend correct material fabricate storage tankers. Chemical liquid transport vehicle widely used in loading and unloading acid, alkali, salt and other corrosive, dangerous media.

1, Tanker material can be chosen according to the need to use carbon steel, carbon steel lined with polyurethane epoxy, anti-corrosion, stainless steel, plastic, aluminum, etc.

2, Tanker shape: ellipse shape, trapezoid shape, cylinder shape.

3, Chemical pump: selection of domestic well-known enterprises of high quality chemical liquid pump.
4, Function: independent or warehouse, packing, liquid food with different chemicals.
5, inside is provided with a plurality of plastic breakwater partition. Fully through the high-pressure air tightness test, the tank strength is high, the center of gravity, vehicle safety and smooth.

Competitive Advantage:

We can be completely customized all different truck and trailer according to customer needs; with advanced design concept; the production process and the first class process, as well as services; competitive prices.

Specifications:

38 m3 butyl acetate chemical liquid tanker semi trailer

Model : SY9338GHGYSDZ ( 38 m3 butyl acetate chemical liquid tanker semi trailer )
DIMENSIONS & WEIGHT
Overall Dimensions ( L * W * H ) 10620 * 2490 * 3850 mm
Volume 38 m3 = 38000 Liters
MAX. GVW 40000 kg
Kerb weight 9900 kg
Pay load 30100 kg
Tanker
Tank Material Stainless Steel 304, inner is polyurethane epoxy, anti-corrosion. Middle is rock wool insulation, and outer is opting MS or SS cover plate.
shape Cylinder or Trapezoid shape
Thickness of shell SS 4 mm
Thickness of dish SS 5 mm
Working temperature - 20 °C to + 70 °C
Compartments The tank is divided in 1 room. Opting more

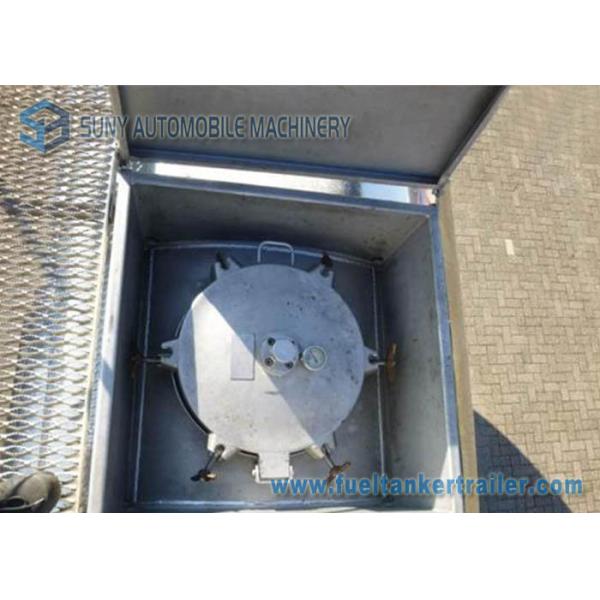

Manhole 1 set of DN500 mm / SS304, with breathe valve
Unloading valve 2 sets of DN80 fixed at bottom of tank
Pipeline at bottom of tank 4” seamless steel tube Q235
Labeling system Oil type indication
Anti-static electricity Pulling, wire carrier, sheet copper (6 sheet standard layout)
Running Gear
Axle BPW 3-pcs * 12 T axles, double wheel.
Tire & Rim

12-pcs * 11.00R22.5 tyres (opting different brand tire)

12-pcs * 8.25R22.5 rim (opting steel rim or aluminum alloy rim )
Suspension Mechanical suspension (opting air suspension)
King pin JOST C200 2.0" 50 # kingpin (50#) opting, 3.5” ( 90 # )
Landing legs 1 pair . JOST
Air tank 2 set
Spring brake chamber 2-pcs T3030, 2-pc T30
Air connector 1 set stander air connector
Valve 1 pc WABCO ABS
Electrical system

Complete electrical system with 7 socked . 24 V.

One set of LED standard lambs; One set of standard cable.
Painting

One primer +final painting

All steel parts are sand blasted before painting. Anti-corrosion.

Primeer, finished urethane paint.

All painting are according to customer’s requirement.
Accessories
Mudguards PVC Mudguards
Side protection √
Spare tire carrier √
Ladder √
Guard on top of tank √
Side guard √
Rear bottom guard √
Work tank deck √
Fire extinguisher box 2 unit at the back of each side
Hand rail √
Hose and Carrier 1-pc. hose carrier on left and right each side
Tool box 1 set tool box

38000 L Chemical Oil Tank Trailer , Butyl Acetate Semi Trailer truck

38000 L Chemical Oil Tank Trailer , Butyl Acetate Semi Trailer truck

38000 L Chemical Oil Tank Trailer , Butyl Acetate Semi Trailer truck
