Specifications
Brand Name :
SUNY
Model Number :
SUNYFB0 - 10
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 10000 - 45000 / Set
Supply Ability :
50 sets per month
Delivery Time :
25 days after receiving deposits
Packaging Details :
bulk, ro - ro . container
WHEEL LIFT Rating at Full Extension :
2722 kg
WHEEL LIFT Tow Rating :
3175 kg
Deck length :
5944 mm
Deck rating :
9072 kg
Winch Type :
Worm Gear
Winch :
8 , 000 lbs ( 3629 kg ) worm gear including free wheel
Cable length :
10 mm x 30 m ( 3 / 8 " x 100 ' )
Loading Angle :
0 degree ( actual approximately 1 degree )
Description

FB 0 - 10 Isuzu Full Landing 0 Degree 9 Ton Flatbed Wrecker Towing Truck

Specifications

0 Degree Flat Bed Tow Truck with Wheel lift, under mounted tool boxes and light pylon.

Our innovative ten ton 0 degree carrier with a 19 ' 6 " deck. This carrier enables the operator to safely load and unload exotic vehicles, motorcycles, ATVs and other cargo not easily winched up. It is medium duty deck can handle everything from a wide Lamborghini to a dually box truck and everything in between - safely, securely and without risk to the cargo. It will simplify your life in ways you could never expect.

Not only can you easily transport severely damaged vehicles, exotics and motorcycles, but you also have the capacity to grab another car on the ride to your lot using the six ton independent wheel lift with swivel scoop pans. Many customers buy this carrier so they can handle the luxury cars that other operators will not risk touching. To help you keep organized, we include a single 36 " under mount tool box, but optionally we offer many types of storage up to dual 72 " tool boxes.

As with all our Tow Trucks, customization is the order of the day and we will build your carrier the way you want it. Do not hesitate to inquire, standard and customized carriers are surprisingly inexpensive.


STANDARD FEATURES INCLUDE:

  • Independent headache rack
  • 0 degree flat bed
  • Single 36 " under mount tool box
  • Steel checkered plate deck
  • 6 , 000 lbs independent under lift with swivel scoop pans
  • Side or center mounted single 8 , 000 lbs worm gear winch
  • 50 feet of 3 / 8 " wire rope
  • Manual free spool
  • Dual manual controls
  • Two sets of Frame forks
  • Frame fork adapters
  • Multiple tie off points
  • Wheel pan holders
  • Weather stripping on tool box doors


OPTIONS AVAILABLE:

  • Headache rack integrated tool boxes
  • Custom tool box configurations
  • Aluminum or stainless dress up kit
  • 102 " wide deck
  • Removable rails
  • Frame forks
  • Custom deck configurations
  • Custom rail configurations
  • Complete wireless controls
  • Side mount winches
  • Custom deck lengths
  • Full installation services
  • Additional frame forks
  • Custom attachments
  • Extended warranty


BED SPECIFICATIONS

Deck Length 19 ' 6 " ( 5944 mm ) , optionally any custom length
Overall Width 96 " ( 2438 mm ) , optional 102 " ( 2590 mm )
Load Rating 20 , 000 lbs ( 9072 kg )
Loading Angle 0 degree ( actual approximately 1 degree )
Cross Members 2 1 / 2 " x 2 " cross beams with bridging between centers
Controls Monobloc five spool dual side controls
Winch 8 , 000 lbs ( 3629 kg ) worm gear including free wheel


WHEEL LIFT SPECIFICATIONS

Lift Rating at Full Extension 6 , 000 lbs ( 2722 kg )
Tow Rating 7 , 000 lbs ( 3175 kg )
Cross Bar Size 4 " x 3 ¼ "


VEHICLE RECOMMENDATIONS

Minimum GVW 15 , 000 lbs ( 6804 kg )
Maximum GVW 28 , 000 lbs ( 12700 kg )
Recommend Tire Size 16 " to 19 . 5 " ( 406 mm to 495 mm )
Recommend Cab to Center of Rear Axle 127 " to 156 " ( 3226 mm to 3962 mm )
based on deck size

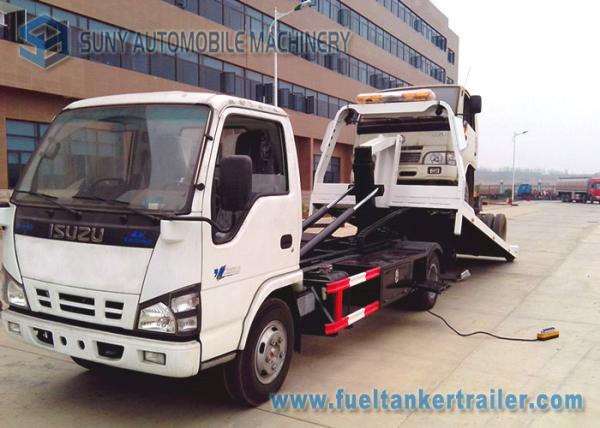

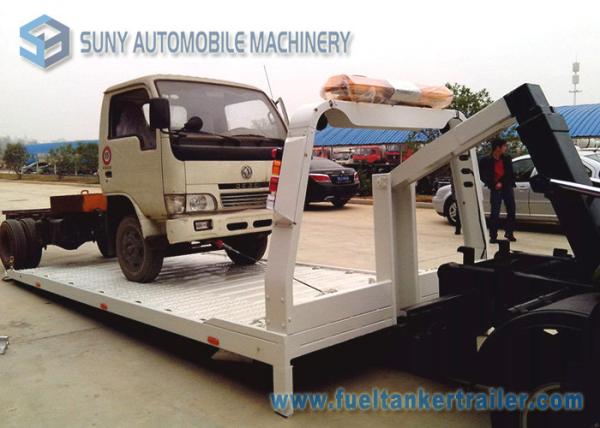

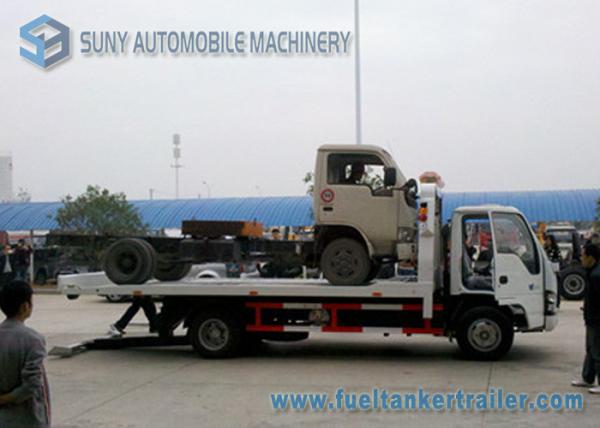

More photos:
