FB 15 Wrecker Tow Truck Tow Truck Upper Body 9 Ton Flatbed 5 Ton Underlift
FB 15 Wrecker Tow Truck Tow Truck Upper Body 9 Ton Flatbed 5 Ton Underlift
FB 15 Wrecker Tow Truck Tow Truck Upper Body 9 Ton Flatbed 5 Ton Underlift
FB 15 Wrecker Tow Truck Tow Truck Upper Body 9 Ton Flatbed 5 Ton Underlift
FB 15 Wrecker Tow Truck Tow Truck Upper Body 9 Ton Flatbed 5 Ton Underlift
FB 15 Wrecker Tow Truck Tow Truck Upper Body 9 Ton Flatbed 5 Ton Underlift
FB 15 Wrecker Tow Truck Tow Truck Upper Body 9 Ton Flatbed 5 Ton Underlift
FB 15 Wrecker Tow Truck Tow Truck Upper Body 9 Ton Flatbed 5 Ton Underlift
FB 15 Wrecker Tow Truck Tow Truck Upper Body 9 Ton Flatbed 5 Ton Underlift
FB 15 Wrecker Tow Truck Tow Truck Upper Body 9 Ton Flatbed 5 Ton Underlift
FB 15 Wrecker Tow Truck Tow Truck Upper Body 9 Ton Flatbed 5 Ton Underlift
FB 15 Wrecker Tow Truck Tow Truck Upper Body 9 Ton Flatbed 5 Ton Underlift
FB 15 Wrecker Tow Truck Tow Truck Upper Body 9 Ton Flatbed 5 Ton Underlift
FB 15 Wrecker Tow Truck Tow Truck Upper Body 9 Ton Flatbed 5 Ton Underlift
Specifications
Brand Name :
SUNY
Model Number :
SUNYFB15
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 5000-25000 / Set
Supply Ability :
50 sets per month
Delivery Time :
25 days after receiving deposits
Packaging Details :
bulk,ro-ro.container
UNDERLIFT Retracted capacity :
5 ton
UNDERLIFT Extended Capacity :
2 . 5 ton
Deck length :
5486 mm ( 18 ' ) to 6705 mm ( 22 ' )
Deck rating :
9 ton
Winch Type :
Worm Gear
Winch Pulling force :
10 ton
Cable length :
10 mm x 30 m ( 3 / 8 " x 100 ' )
Tilt angles :
- 6 °
Description

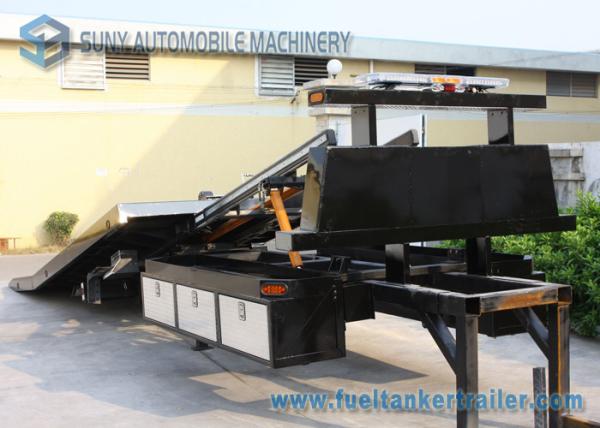

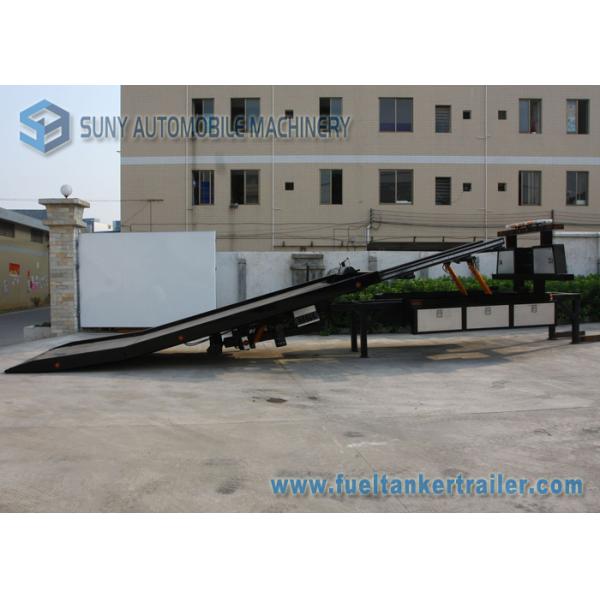

FB 15 Flatbed Tow Truck Upper Body With 9 Ton Flatbed And 5 Ton Underlift

Getting Serious

As with all our Tow Trucks, customization is the order of the day and we will build your carrier the way you want it. Do not hesitate to inquire, standard and customized carriers are surprisingly inexpensive.

Our FB 15 is over built to ensure durability and long life; this will protect your investment and keep you on the road longer and hauling more vehicles faster. Owners and fleet operators alike will quickly discover that this light duty carrier is the best value that is available on the market today.

With a 9 ton rating, the FB 15 is a serious worker. There is no need to refuse calls for heavier trucks anymore, you should be able to pick it up with the FB 15.

Some optional equipment may be shown.

All ratings are based on structural and design factors only. Vehicle chassis capacity and capabilities can vary significantly, affecting the overall performance and rating of the unit. All chassis specifications are minimums, heavier specifications may be required depending on chassis and equipment weights. Please contact your nearest distributor for additional information.

Our Tow Trucks reserves the right to change, improve or modify products, which may change the specifications, models and features availability at any time without notice and without obligation. Please contact your nearest distributor for additional information.

Standard Features

  • Standard width of 2463 mm ( 97 " )
  • One 914 mm ( 36 " ) side toolbox
  • Independent light pylon
  • Chrome door handle
  • Driver and passenger side manual controls
  • Safety chains

Options:

  • Wireless remote control
  • 1828 mm ( 72 " ) side box
  • 2590 mm ( 102 " ) Wide bed
  • Frame forks
  • Wheel lift receivers for single / double tires
  • Removable rails
  • Full recovery tool package
  • Custom storage system
  • Front push bumper
  • XP, X - shape side puller
  • In cab controls
  • Full size LED light bar
  • LED - working lights, strobe lights, lights inside toolbox
  • Custom painting
  • Installation services and extended warranty
  • Tow operators education & training

UNDERLIFT SPECIFICATIONS
Tow Rating 5 ton
Extended Capacity 2 . 5 ton
Tilt angles - 6 °

DECK SPECIFICATIONS
Deck length 5486 mm ( 18 ' ) to 6705 mm ( 22 ' )
Deck rating 9 ton

WINCH SPECIFICATIONS
Pulling force 10 ton
Winch Type Worm gear
Cable length 10 mm x 30 m ( 3 / 8 " x 100 ' )

CHASSIS REQUIREMENTS
FA axle weight (min) 3 . 6 ton ( 8 , 000 lbs ) to 8 . 6 ton ( 19 , 000 lbs )
RA axle weight (min) 6 . 1 ton ( 13 , 500 lbs ) to 8 . 6 ton ( 19 , 000 lbs )

REFERENCE TABLE
Deck Length Minimum Cab – to - Axle
6248 mm ( 20 . 5 ' ) 3352 mm ( 132 " )
6400 mm ( 21 ' ) 3505 mm ( 138 " )
6553 mm ( 21 . 5 ' ) 3657 mm ( 144 " )
6705 mm ( 22 ' ) 3810 mm ( 150 " )
7010 mm ( 23 ' ) 3962 mm ( 156 " )
7315 mm ( 24 ' ) 4216 mm ( 166 " )
7620 mm ( 25 ' ) 4318 mm ( 170 " )
7924 mm ( 26 ' ) 4622 mm ( 182 " )
