Specifications
Brand Name :
SUNY
Model Number :
SYCMT5DF
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 25, 000 ~ 40, 000 per Unit
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units per year
Delivery Time :
10 ~ 15 working days
Packaging Details :
Nude with waxing. Whole truck by ro - ro ship, bulk ship and flat rack. Upper body by 40HQ container.
Color :
White with green rings. Optional
Engine :
Cummins 185 hp
Reducer :
1 : 45 Gear Ratio, 30000 N . m Torque
Hydraulic Pump :
63 L / Min Flow Rate, 20 Mpa Rated Pressure
Hydraulic Motor :
60 L / Min Flow Rate, 20 Mpa Rated Pressure
Water Tank Volume :
350 Litres
Residual Rate :
< 1 %
Filling Rate :
66 %
Description

Dongfeng 6 X 6 All Wheel Drive 5 M3 Off Road Cement Mixer Truck

Specification:

Dongfeng EQ5160G 6 X 6 off road cement mixer truck 5 cbm

brand

Dongfeng

Name

EQ5160G 6 x 6 off road mixer truck

model

DFD5160G

G . V . W ( Kg )

16050

Stirring volume

5 cbm

Load weight ( Kg )

7900

Overall dimension ( mm )

7825 × 2500 × 2925

Curb weight ( Kg )

7955

Cargo box size ( mm )

4850 × 2300 × 800

Cab passenger

3

Approach / departure angle

38 / 30

Suspension front / rear ( mm )

1450 / 1625

Axle number

3

Wheelbase ( mm )

3500 + 1250

Axle load weight ( Kg )

4020 / 6015 / 6015

Top speed ( Km / h )

95

The others

1. Net engine power corresponding to: YC6J180 42 to 128kW, ISDe185 40 is 130kW;

2. Side protection: Material Q235, connections after bolting under protection: Material Q235, bolted connection, section size 120 × 60mm, ground clearance 450mm;

3. Optional cab styling with form;

4. Installation with a satellite positioning function of tachograph.

5. ABS models: 3631010 - C2000, manufacturer: Dongfeng electronic Technology Co . , Ltd. brake systems: option

Chassis parameters

chassis

EQ5160GLJ

Chassis

Special truck chassis

Brand

Dongfeng

manufacturer

Dongfeng Motors

Chassis overall dimension ( mm )

7565 × 2470 × 2850

Tire number

6

Approach / departure

angle

35 / 36, 38 / 36

Tire specification

12 . 5R20

Leaf spring

10 / 12

Front wheel tread ( mm )

1916

Fuel fort

diesel

Rear wheel tread ( mm )

1876 / 1876

Emission standard

Euro III or IV

Engine model

Engine manufacturer

Displace ( ml )

Power ( Kw )

YC6J180 42

ISDe185 40

Yuchai diesel engine

Dongfeng Cummins diesel

6494

6700

132

136

Air conditioner

With A / C

Vehicle color

Can be chosen

Our Services

1. Factory Supply:

A. the biggest and famous vehicle manufacturer in china,

B. more than 300 kinds of special truck for your selecting.

2. OEM Ability: can be made according to your requirements, the material, the size, the color and the logo can be optional.

3. Good Quality:

A. has solid technology, advanced equipment; reliable quality and flexible modes of operation also have strict quality control system,

B. ISO9001 - 2008 standard and the 3C ( China Compulsory Certification ),

C. China top brand with good reputation at home and abroad.

4. Good Service: 24 - hour hotline and email. Offer quickly no more than 5 minutes.

5. Fast Delivery: 10 - 35 days after payment, safe and quick delivery depends on your order quantity.

FAQ

1. Price term: FOB Shanghai in China. CIF for destination port.

2. Payment: T / T 30 % deposit after order confirmation, 70 % balance cash before delivery.

3. Delivery time: 10 - 35 working days after payment is received.

4. Standard Steering: Left - hand drive, if you need Right - hand drive type, please inform us in advance, we can make the special order for you.

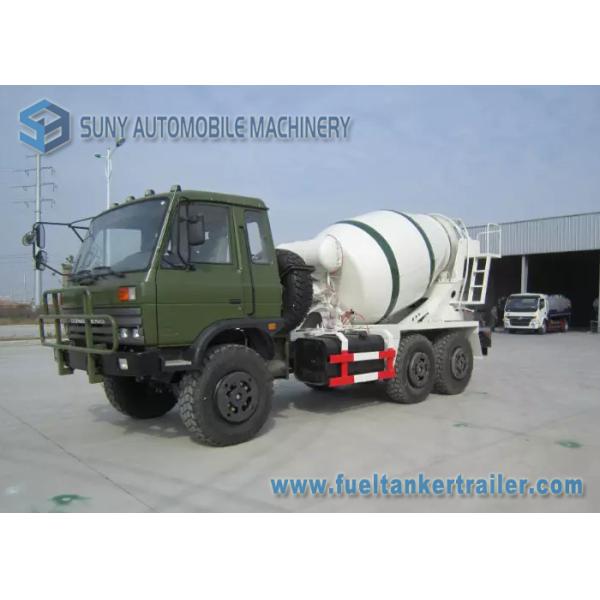

More photo:
