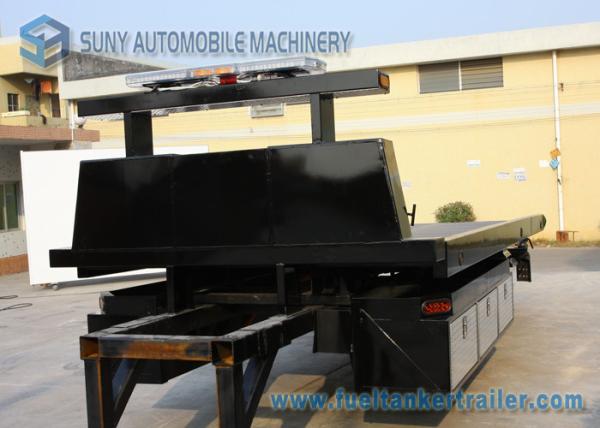

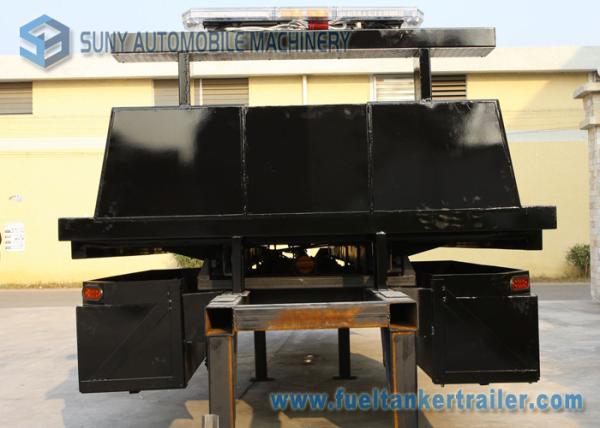

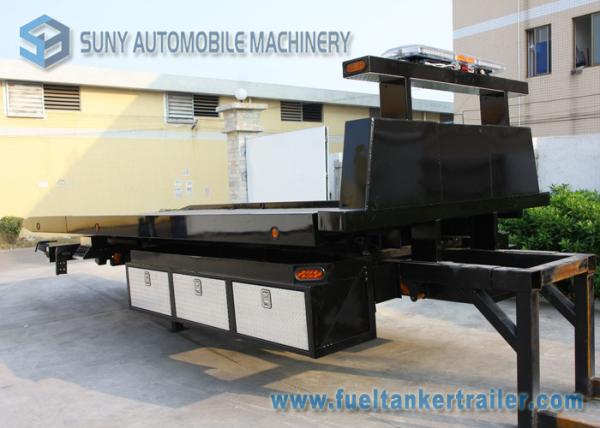

FB 5 Flatbed Tow Truck Upper Body With 4 Ton Flatbed And 2 Ton Underlift
More than a Start
Our FB 5 is our entry level unit but it is much more than that. With a strong 3 . 6 ton deck, you can carry a lot more than the usual 2 ton trucks. It is a great way to add units to your fleet at a low price. It will allow you to carry light duty trucks with ease.
Our FB 5 is over - built to ensure durability and long - life; this will protect your investment and keep you on the road longer and hauling more vehicles faster. Owners and fleet operators alike will quickly discover that this light duty carrier is the best value that is available on the market today.
As with all our Tow Trucks, customization is the order of the day and we will build your carrier the way you want it. Do not hesitate to inquire, standard and customized carriers are surprisingly inexpensive.
Standard Features
Options:
Some optional equipment may be shown.
All ratings are based on structural and design factors only. Vehicle chassis capacity and capabilities can vary significantly, affecting the overall performance and rating of the unit. All chassis specifications are minimums, heavier specifications may be required depending on chassis and equipment weights. Please contact your nearest distributor for additional information.
Our Tow Trucks reserves the right to change, improve or modify products, which may change the specifications, models and features availability at any time without notice and without obligation. Please contact your nearest distributor for additional information.

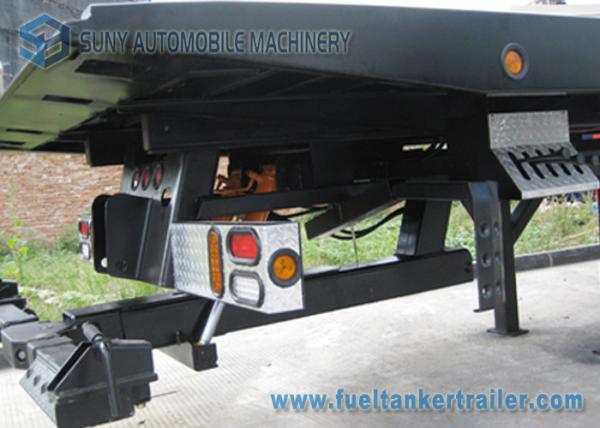

UNDERLIFT SPECIFICATIONS | |
Retracted capacity | 1 . 8 ton ( 4 , 000 lbs ) |
Extended Capacity | 0 . 9 ton ( 2 , 000 lbs ) |
Negative tilt angle | - 6 ° |
DECK SPECIFICATIONS | |
Deck length | 5943 mm ( 19 . 5 ' ) |
Deck rating | 3 . 6 ton ( 8 , 000 lbs ) |

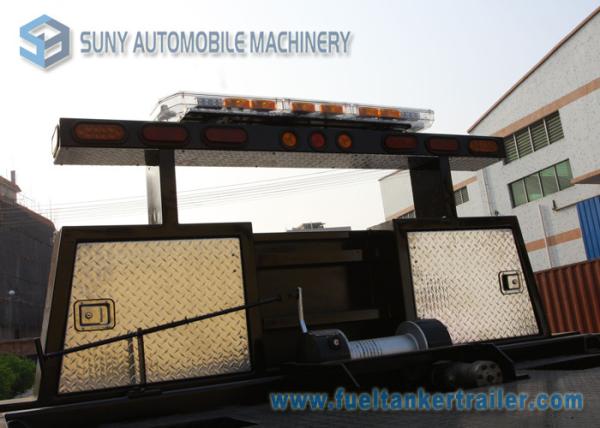

WINCH SPECIFICATIONS | |
Quantity | 1 winch |
Pulling force ( on 1st layer ) | 3 . 6 ton ( 8 , 000 lbs ) |
Winch Type | Worm Gear |
Cable length | 10 mm x 30 m ( 3 / 8 " x 100 ' ) |
CHASSIS REQUIREMENTS | |
FA axle weight ( min ) | 3 . 2 ton ( 7 , 000 lbs ) |
RA axle weight ( min ) | 6 . 1 ton ( 13 , 500 lbs ) |
Clear CA | ( see table below ) |
REFERENCE TABLE | |
Deck Length | Minimum Cab – to - Axle |
6248 mm ( 20 . 5 ' ) | 3352 mm ( 132 " ) |
6400 mm ( 21 ' ) | 3505 mm ( 138 " ) |
6553 mm ( 21 . 5 ' ) | 3657 mm ( 144 " ) |
6705 mm ( 22 ' ) | 3810 mm ( 150 " ) |
7010 mm ( 23 ' ) | 3962 mm ( 156 " ) |
7315 mm ( 24 ' ) | 4216 mm ( 166 " ) |
7620 mm ( 25 ' ) | 4318 mm ( 170 " ) |
7924 mm ( 26 ' ) | 4622 mm ( 182 " ) |
More photo:
