Right Hand Drive Forland 4 M3 cement mixer lorry 130 Hp Euro 3 Engine
Right Hand Drive Forland 4 M3 cement mixer lorry 130 Hp Euro 3 Engine
Right Hand Drive Forland 4 M3 cement mixer lorry 130 Hp Euro 3 Engine
Right Hand Drive Forland 4 M3 cement mixer lorry 130 Hp Euro 3 Engine
Right Hand Drive Forland 4 M3 cement mixer lorry 130 Hp Euro 3 Engine
Right Hand Drive Forland 4 M3 cement mixer lorry 130 Hp Euro 3 Engine
Right Hand Drive Forland 4 M3 cement mixer lorry 130 Hp Euro 3 Engine
Right Hand Drive Forland 4 M3 cement mixer lorry 130 Hp Euro 3 Engine
Right Hand Drive Forland 4 M3 cement mixer lorry 130 Hp Euro 3 Engine
Right Hand Drive Forland 4 M3 cement mixer lorry 130 Hp Euro 3 Engine
Right Hand Drive Forland 4 M3 cement mixer lorry 130 Hp Euro 3 Engine
Right Hand Drive Forland 4 M3 cement mixer lorry 130 Hp Euro 3 Engine
Specifications
Brand Name :
SUNY
Model Number :
SYCMT4FL
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 11, 000 ~ 23, 000 per Unit
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600 Units per year
Delivery Time :
10 ~ 15 working days
Packaging Details :
Nude with waxing. Whole truck by ro - ro ship, bulk ship and flat rack. Upper body by 40HQ container.
Color :
White, Optional.
Engine :
YC4D130 - 33 , 130 hp / 4214 ml
Reducer :
Germany brand, ZF
Hydraulic Pump :
Italy brand, PMP
Hydraulic Motor :
Italy brand, PMP
Water Tank Volume :
300 Litres
Residual Rate :
< 0 . 42 %
Filling Rate :
67 %
Description

Right Hand Drive Forland 4 M3 cement mixer lorry 130 Hp Euro 3 Engine

Specifications

1 ) low cost
2 ) English operation and logo
3 ) original spare parts

Electrics

operating voltage : 24V , negative grounded ,

starter : 24V , 5 . 4 kw

Alternator : 28V , 1500 kw ;

Batteries : 2 x 12 , 165 Ah

Cigar - lighter , horn , headlamp , fog light , reverse lamp

Product Description

Right Hand Drive Forland 4 M3 Concrete Mixer Truck 130 Hp Euro 3 Engine

Products Technical Specification
Brand - Series FORLAND
Product Name 4 x 2 Concrete mixer truck
Chassis Model BJ5142
Emission Standard Euro 3
Fuel type Diesel
Cabin Half row
Whole vehicle
main dimensions ( mm )		 Overall dimensions ( L × W × H ) 6825 * 2480 * 2450
Tank dimensions 6 cbm
Wheel base 3600
Front overhang 1245
Rear overhang 1980
Min. ground clearance 425
Weight data ( kg ) G . V . W 13560
Curb weight ( chassis ) 5860
Max payload 10000
Whole vehicle
main performance		 Max . speed ( km / h ) 80
Max . slope of climb ( % ) 30
Engine Model YC4D130 - 33
Maximum power 96kw / 130hp
Number of cylinders 4
Displacement ( L ) 4 . 214
Engine Manufacturer Guangxi Yuchai Machinery Co . , Ltd
Transmission Model 5
Number of gears 5 forward gears & 1 reverse
Axle Rear Load capacity ( ton ) 8T
Suspension Leaf spring 9 / 11 + 9
Steering Wheel left / right hand drive RHD
Brake system Service brake Dual - circuit air brake
Electric device Rated voltage 24V
Tyres & Quantity 8 . 25 - 20 & 6 + 1
Mixing Tank Description
Material and Thickness Q345 , Cylinder wall thickness 5mm , head thickness 6mm
Mixing capacity 4 cbm
Mixing tube angle 12 . 5 °
Feed rate 3 m3 / min
The feed speed ≥ 1 . 5 m3 / min
Fill Rate 63 %
Residual Discharge rate < 0 . 2 %
Slump range 40 ~ 210 mm

We are a set design , production into one professional manufacturer of multifunction water trucks in China , we can provide our customers various configurations trucks with different prices and best quality .

1 . At present Our Truck with Euro 2 and Euro 3 Emission Standard ; Drive model : 4 * 2 , 6 * 4 , 8 * 4 ;

Chassis Brand : Dongfeng , FAW , Auman , Shacman , Sinotruck , North Benz ( Bei Ben ) , etc .

2 . Cab : Flat - head with one sleeper ( optional ) , comfortable design , rated passengers : 3 , with air condition ;

Steering control : Left hand drive / Right hand drive optional ;

3 . Engine model : Dongfeng Chaochai ( 95HP - 120HP ) , Yuchai ( 140HP - 240HP ) , Cummins ( 140HP - 260HP ) , Weichai ( 266HP - 336HP ) .

4 . Loading weight ( tank capacity ) : 5T ( CBM ) , 8T ( CBM ) , 10T ( CBM ) , 12T ( CBM ) , 15T ( CBM ) , 20T ( CBM ) , 25T ( CBM ) , 30T ( CBM ) .

Transportation medium : conerete

Tank body material : It adopts 16 manganese steel and has large intensity and wear - resisting character .

Function and structure : It adopts important parts , slchas hydraulic pump , hydraulic motor , gearbox and radiator ( Italy AKG and wrestile of german ) . It ' s to churn equality , fast discharge the goods and little residual material during transport .

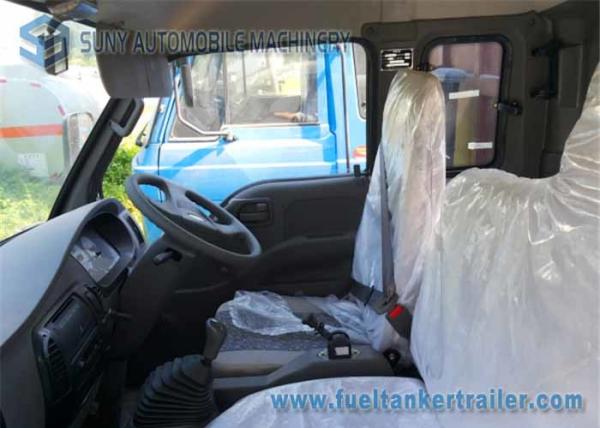

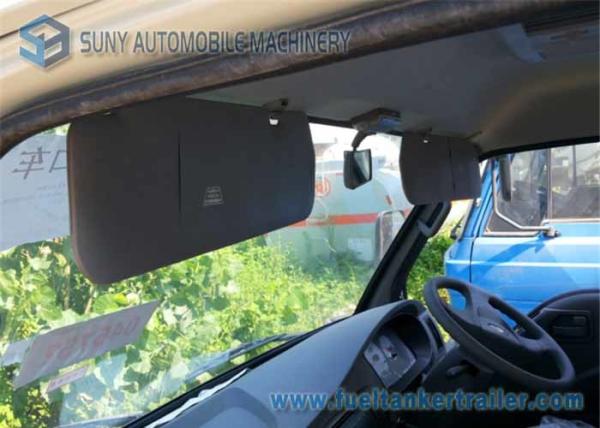

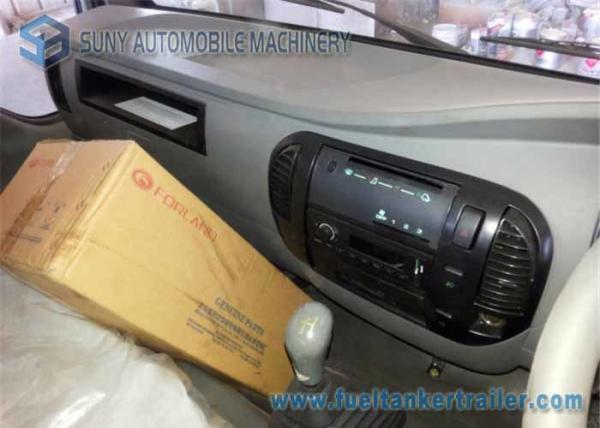

More photo:


Right Hand Drive Forland 4 M3 cement mixer lorry 130 Hp Euro 3 EngineRight Hand Drive Forland 4 M3 cement mixer lorry 130 Hp Euro 3 Engine
