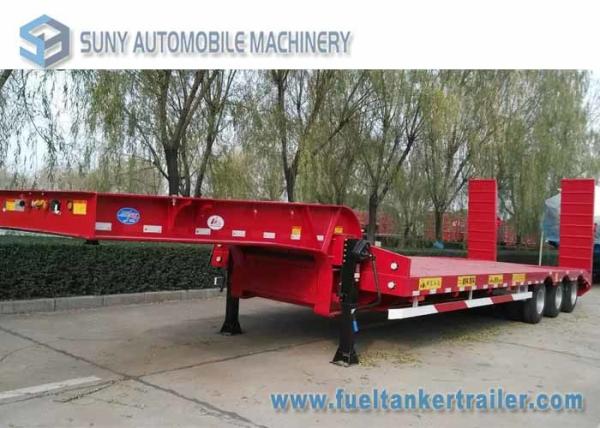

80 T Hydraulic Ladder 3 Axles Lowbed Semi Trailer , heavy duty flatbed trailer
80 T Hydraulic Ladder 3 Axles Lowbed Semi Trailer , heavy duty flatbed trailer
80 T Hydraulic Ladder 3 Axles Lowbed Semi Trailer , heavy duty flatbed trailer
80 T Hydraulic Ladder 3 Axles Lowbed Semi Trailer , heavy duty flatbed trailer
Specifications
Brand Name :
SUNY
Model Number :
SY9105
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 19,000 Unit
Supply Ability :
500 Unit / Month
Delivery Time :
10 - 20 Working Days
Packaging Details :
After Waxing by Container, RO-RO, Bulk Freighter
Trailer Size :
13000*2500*3900 mm
Alxe :
3 Axles , FUWA Brand
Support leg :
JOST brand C200T Optional FUWA 28 T
Ladder :
Heavy Hydraulic Ladder
Load Capacity :
80 T Optional 100 T 200 T 300 T
Suspension :
Heavy duty Mechanical Suspension
Tire :
12.00R20
Description

80 T Hydraulic Ladder 3 Axles Lowbed Semi Trailer , heavy duty flatbed trailer

Semi trailer is our company's main product . We configure Grid type semi trailer , low bed semi trailer , container semi trailer , flat bed semi trailer , LPG tank semi trailer , fuel tank semi trailer , water tanker semi trailer , fecal suction semi trailer , sewage suction semi trailer , compactor garbage semi trailer , van semi trailer, box semi trailer , water tank semi trailer , bitumen semi trailer , bulk cement semi trailer , dump semi trailer , chemical tank semi trailer and etc . We produce tank semi trailer with plastic lining , aluminum tank , aluminum alloy tank , rotational molding , carbon steel , stainless steel , production according to the customer's requirement .

Tare Weight About 11 T
Dimension 13000 mm *2500 mm * 3900 mm (Remove the ladder height 1800 mm)
Loading Capacity (T) 80 T
Axle 16T, FUWA Brand
Rim 8.5-20 (Special for export market)
Tire 12.00R20 * 13 units (with one spare tire) Triangle brand
Suspension Heavy duty Mechanical suspension (Special for export market)
Spring leaf 90(W) mm * 16(Thickness) mm * 10 Layer (Special for export market)
King pin JOST brand 2.0 or 3.5inch Welding type
Support leg JOST brand C200T
Main beam

Height: 520 mm, upper plate is 25 mm, middle plate is 12 mm,

25 mm ; Material is Q345B Steel .
Side beam 20 mm channel steel ( Material is Q235steel ).
Bottom Platform 5 mm thickness diamond steel plate
Ladder Manual type
Gooseneck For choose
Brake chamber WABCO RE 6 relay valve; T30 / 30 + T30 Spring brake chamber; one piece of 45 L air tanks
ABS Without
Twist Locks Twelve pieces (Lifting type)
Valve WABCO valve
Light LED light (Special for export market)
Voltage 24 V
Receptacle 7 ways (7 wire harness)
Tool box One piece, 1 m×0.5 m×0.5 m (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

80 T Hydraulic Ladder 3 Axles Lowbed Semi Trailer , heavy duty flatbed trailer
