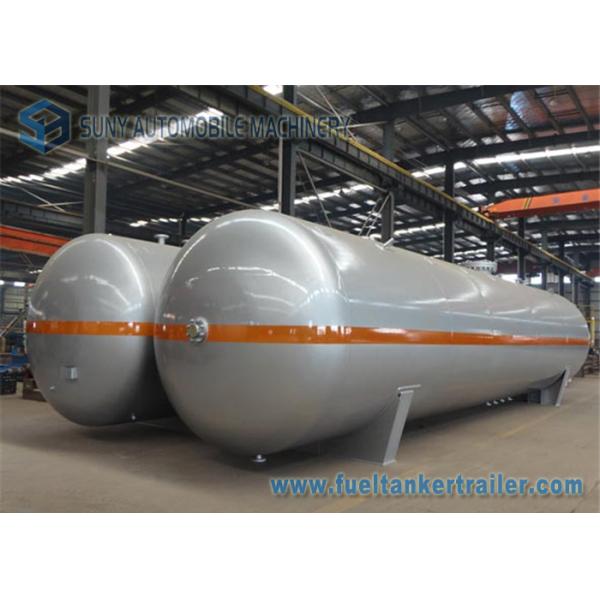

Customization 20CBM LPG Storage Tank For LPG Filling Station
Customization 20CBM LPG Storage Tank For LPG Filling Station
Customization 20CBM LPG Storage Tank For LPG Filling Station
Customization 20CBM LPG Storage Tank For LPG Filling Station
Customization 20CBM LPG Storage Tank For LPG Filling Station
Customization 20CBM LPG Storage Tank For LPG Filling Station
Customization 20CBM LPG Storage Tank For LPG Filling Station
Customization 20CBM LPG Storage Tank For LPG Filling Station
Specifications
Brand Name :
SUNY
Model Number :
SY20G
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 20000 ~ 28000 per unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 units per month
Delivery Time :
20-30 days
Packaging Details :
Bulk, RO-RO, Container, Naked, Waxed before on board
tank volume :
20M3 , 20cbm , 20000L , 20000liters
tank material :
Q345R
type :
LPG storage tanks
tank design pressure :
1.77Mpa , 17.7Bar
function :
storage LPG
loading LPG :
10T , 10000kg
color :
gray
Description

LPG tank trailer Customization 30CBM Best Quality LPG Storage Tank Use For LPG Filling Station​

LPG tank trailer Customization 20CBM LPG Storage Tank For LPG Filling Station

LPG Tank Series Advantage

1. Original Price: FOB, CNF/CFR, CIF,DAF

2. Certificates: CCC, ISO, BV, GJB, CQC ,SGS , ASME

3. Promptly Delivery: 20 days

4. Excellent After-sale Service and Customization Service

5. One-stop shop, thousand kinds of products with military quality for you to choose

6. Most competitive and reasonable price, ready to develop together with customer

7. Reliable and effective performance, time=money

8. Great after-sales service system, back you up all the time

Quick description of LPG Bullet Tank


(1). LPG propane storage tank volume : 20cbm = 20 M3 =20000 liters =20000L


(2). LPG storage tank design standard : ASME ,GB150


(3). LPG storage tank design pressure:1.77Mpa = 17.7Bar


(4). LPG storage tank useful time: about 20 years

LPG storage tank Specifications:

LPG storage tanks
tank diameter 1800mm 2000mm 2100mm 2200mm
tank type III III III III
working Medium LPG (propane) LPG(propane) LPG(propane) LPG(propane)
Design Specific Gravity 0.42 Kg/M3 0.42 Kg/M3 0.42 Kg/M3 0.42 Kg/M3
media characteristics Flammable and explosive flammable and
explosive		 flammable and
explosive		 flammable and
explosive
capacity 20M3 20M3 20M3 20M3
External Dimensions (length*width*height) 8174*1820*2410mm 6724*2024*2614mm 6154*2124*2714mm 5608*2224*28514mm
tank weight (nominal) 4820kg 5150kg 5050kg 5080kg
max payload weight 7980kg 7980kg 7980kg 7980kg
tank material Q345R Q345R Q345R Q345R
Barrel design thickness 10mm 12mm 12mm 12mm
Head design thickness 12mm 12mm 12mm 14mm
welded joint coefficient 1.0 1.0 1.0 1.0
design temperature 50ºC 50ºC 50ºC 50ºC
working temperature -20~50 ºC -20~50 ºC -20~50 ºC -20~50 ºC
Corrosion allowance 1.0 mm 1.0 mm 1.0 mm 1.0 mm
design pressure 1.77 MPa 1.77 MPa 1.77 MPa 1.77 MPa
Hydraulic test pressure 2.22 MPa 2.22 MPa 2.22 MPa 2.22 MPa
leak test pressure 1.77 MPa 1.77 MPa 1.77 MPa 1.77 MPa
Heat treatment type Wholly get rid of tress Wholly get rid of tress Wholly get rid of tress Wholly get rid of tress
Paint paint white color, or paint the color you request. paint white color, or paint the color you request. paint white color, or paint the color you request. paint white color, or paint the color you request.
The first install Accessories Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter

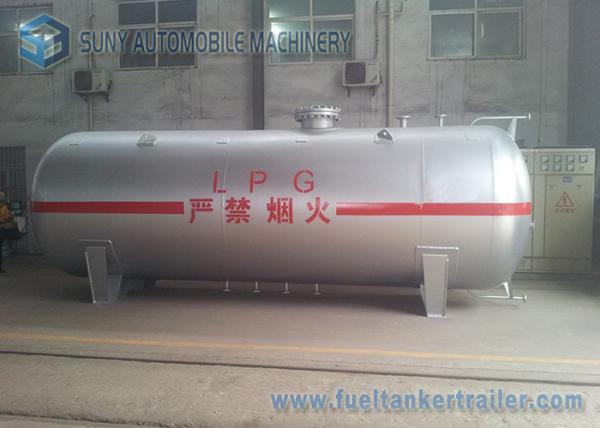

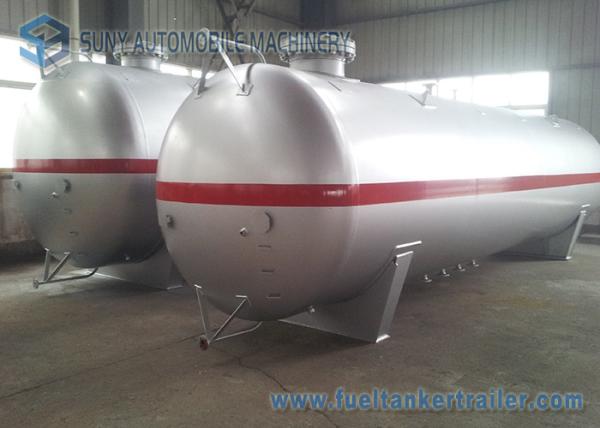

LPG storage tank more details show


Customization 20CBM LPG Storage Tank For LPG Filling Station

Customization 20CBM LPG Storage Tank For LPG Filling Station
