Specifications
Brand Name :
SUNY
Model Number :
SY-SK5
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 41000 ~ 63000 per unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 units per month
Delivery Time :
20 ~ 30 days
Packaging Details :
Bulk, RO-RO, Container, Naked, Waxed before on board
tank volume :
25000 liters , 25cbm , 25000L , 25KL
tank material :
Q345R
tank design pressure :
1.77Mpa
loading weight :
10500kg
tank diameter :
2000mm , 2100mm , 2200mm
type :
25000 liters LPG gas skid filling station
Description

Lpg Tank Trailer Truck lpg assembled skid stations ASME lpg skid station hot sale gas cylinder filling station

Brief of LPG skid station

LPG skid station , LPG propane gas skid station , also called protable lpg gas station , mobile mobile gas station, gas filling station,lpg gas station, lpg filling station, lpg cycle filling station , lpg gas filling station and so on .

LPG skid plant mainly used to storage and dispense LPG, cooking gas or gas. we can provide 3000L , 5000L , 8000L , 10000L , 12000L, 15000L , 20000L , 30000L, 40000L , 50000L etc.

Which is consisted of bracket, lpg gas tank, gas dispenser, pump, flow meter, pipeline system. It can be transport to anywhere to filling for other equipment. The portable lpg gas station we produce is with easy operation, low cost, long service time,etc.

Quick description of LPG tank plant


(1). LPG tank truck volume : 3-50M3 = 3000~50000 liters


(2). LPG tanker truck design standard : ASME ,China GB150


(3). LPG truck design pressure:1.77Mpa


(4). Mobile LPG tank with LPG dispener useful time: 10-20 years

LPG Tank Series Advantage

Original Price: FOB, CNF/CFR, CIF,DAF

Certificates: CCC, ISO, BV, GJB, CQC ,SGS , ASME

Promptly Delivery: 15-30 days

Excellent After-sale Service and Customization Service

One-stop shop, thousand kinds of products with military quality for you to choose

Most competitive and reasonable price, ready to develop together with customer

Reliable and effective performance, time=money

Great after-sales service system, back you up all the time

LPG tank production advantage

1. Designing pressure:0.7~2.16Mpa Designing temperature:500C

2. The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity.light weight and high efficiency.

3. We inspect the quality of product strictly,ensure that A and Btype of welding seam pass the examination of level two radiographic test,C and D type of welding seam pass the examination of level one radiographic test.

4. There are domestic or imported safety accessories with high quality ,its matching is complete.The anticorrosion coating of LPG tanker adopt the following process, sandblast, spray painting ,purging and so on

LPG tank skid filling station specification

Information for LPG tank skid station
General Item Name Portable LPG Gas Station
loading Weight (kg) 12000
Tank volume (liters) 25000
working Medium LPG (propane) ,0.42 Kg/M3
Gas Dispenser Rate of flow (m³/min) 1.5
Speed (R/m³) 730
Motor power(KW) 22
Equipment gas dispenser, gas gun,flow meter, pressure gauge, thermometer,discharge valve,etc

LPG storage tanks
tank diameter 2000mm 2100mm 2200mm
tank type III III III
working Medium LPG (propane) LPG(propane) LPG(propane)
Design Specific Gravity 0.42 Kg/M3 0.42 Kg/M3 0.42 Kg/M3
media characteristics Flammable and explosive flammable and
explosive		 flammable and
explosive
capacity 25M3 25M3 25M3
External Dimensions (length*width*height) 8304*2024*2614mm 7594*2124*2714mm 7008*2224*2814mm
tank weight (nominal) 6120kg 5970kg 6020kg
max payload weight 9975kg 9975kg 9975kg
tank material Q345R Q345R Q345R
Barrel design thickness 12mm 12mm 12mm
Head design thickness 12mm 12mm 14mm
welded joint coefficient 1.0 1.0 1.0
design temperature 50ºC 50ºC 50ºC
working temperature -20~50 ºC -20~50 ºC -20~50 ºC
Corrosion allowance 1.0 mm 1.0 mm 1.0 mm
design pressure 1.77 MPa 1.77 MPa 1.77 MPa
Hydraulic test pressure 2.22 MPa 2.22 MPa 2.22 MPa
leak test pressure 1.77 MPa 1.77 MPa 1.77 MPa
Heat treatment type Wholly get rid of tress Wholly get rid of tress Wholly get rid of tress
Paint paint white color, or paint the color you request. paint white color, or paint the color you request. paint white color, or paint the color you request.
The first install Accessories Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter

Filling accessories for MOBILE SKID LPG STATION
Item Specification Quantity
Hydrocarbon pump YQB15-5 1
Anti-static motor MM2JA160MBB 1
alarm QJ-D-99F 2
Liquid meter L=1800mm DN20 1
Safety valve A42F-25 DN50 1
Safety reflux valve AH42F-25 DN25 1
Check valve H42N-40 DN50 2
Stop valve J41N-40 DN50 25
J41N-40 DN32 1
J41N-40 DN25 4
J41N-40 DN20 2
J41N-40 DN20 10
Pipe safety valve A21F-25 DN15 1
Discharge pipe L=4M DN50/DN25 1
Shock tube L=500MM DN50 2
Filling gun with pipe L=2M 3
Elbow DN65 2
DN50 10
Flange 2.5mpa DN65 1
2.5mpa DN50 50
2.5mpa DN32 1
2.5mpa DN25 8
2.5mpa DN15 20

Electric filling

scale

 BSC-150 1
Metal pads DN65 5
DN50 80
DN32 2
DN25 10
DN20 2
DN15 30
bolt 16*70 300
16*55 100

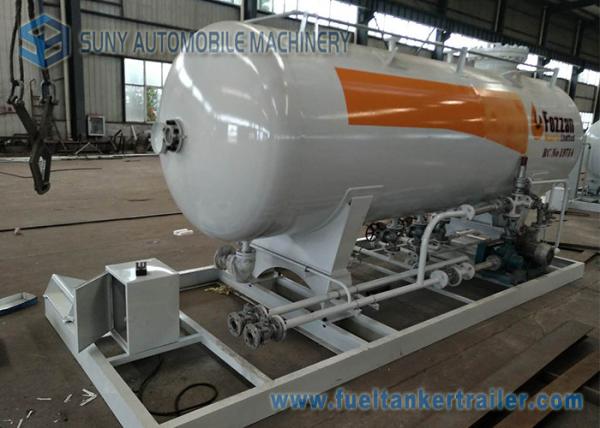

Detailed Images of mobile mobile gas station

Lpg Tank Trailer Truck lpg assembled skid stations ASME lpg skid station
