5000l LPG Tank Trailer ASME 5M3 5000 liters Lpg Iso Containers
5000l LPG Tank Trailer ASME 5M3 5000 liters Lpg Iso Containers
5000l LPG Tank Trailer ASME 5M3 5000 liters Lpg Iso Containers
5000l LPG Tank Trailer ASME 5M3 5000 liters Lpg Iso Containers
5000l LPG Tank Trailer ASME 5M3 5000 liters Lpg Iso Containers
5000l LPG Tank Trailer ASME 5M3 5000 liters Lpg Iso Containers
5000l LPG Tank Trailer ASME 5M3 5000 liters Lpg Iso Containers
5000l LPG Tank Trailer ASME 5M3 5000 liters Lpg Iso Containers
Specifications
Brand Name :
SUNY
Model Number :
SY-SK12
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 7000 ~ 11000 per unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 units per month
Delivery Time :
20-30 days
Packaging Details :
Bulk, RO-RO, Container, Naked, Waxed before on board
tank volume :
5M3 , 5cbm , 5000L , 5000liters
tank material :
Q345R
type :
LPG skid filling station
tank design pressure :
1.77Mpa , 17.7Mpa
function :
storage LPG
tank material thickness :
10mm
loading weight :
2030kg
Description

LPG Tank Trailer ASME 5000l Lpg Storage Tank 5M3 5000liters Lpg Iso Containers

LPG Tank Series Advantage

1. Original Price: FOB, CNF/CFR, CIF,DAF

2. Certificates: CCC, ISO, BV , SGS

3. Produce standard : GB150 , ASME

4. Gas tank is usually used to store and transport gas. According to the different ability of bearing pressure, it has high pressure gas tank, low pressure gas tank and normal pressure gas tank; According to the different materials, it has stainless steel gas tank, stainless carton steel gas tank and stainless alloy gas tank.

5.5000L LPG storage tank ASME, LPG gas storage tanks for sale, ASME LPG gas tank 5000L LPG bulk tank 5000 liters LPG gas storage tanks for sale

Quick description of LPG Bullet Tank


(1). LPG propane storage tank volume : 5000 liters , 5000L , 5cbm , 5M3


(2). LPG storage tank design standard:ASME ,China GB150


(3). LPG storage tank design pressure:1.77Mpa ,17.7Bar


(4). LPG storage tank useful time: 10-20 years

(5). ASME ISO LPG tank loading weight : 2030kg

LPG storage tank Specifications:

tank diameter 1600mm
tank type III
working Medium LPG (propane)
Design Specific Gravity 0.42 Kg/M3
media characteristics Flammable and explosive
capacity 5M3
External Dimensions (length*width*height) 3070*1620*2210mm
tank weight (nominal) 2030kg
max payload weight 1995kg
tank material Q345R
Barrel design thickness 10mm
Head design thickness 10mm
welded joint coefficient 1.0
design temperature 50ºC
working temperature -20~50 ºC
Corrosion allowance 1.0 mm
design pressure 1.77 MPa
Hydraulic test pressure 2.22 MPa
leak test pressure 1.77 MPa
Heat treatment type Wholly get rid of tress
Paint paint white color, or paint the color you request.
The first install Accessories Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter
Standard design and manufacture

1.JB/T4731-2005 < Steel horizontal vessels on saddle supports>

2.GB150-1998<steel pressure vessels>

3.TSG R0004-2009<Supervision regulation on safety technology for stationary pressure vessel>

4.HG20584-1998<technical requirements for fabrication of steel chemical vessels>

5.NB/T47015-2010<welding specification for steel pressure vessels>

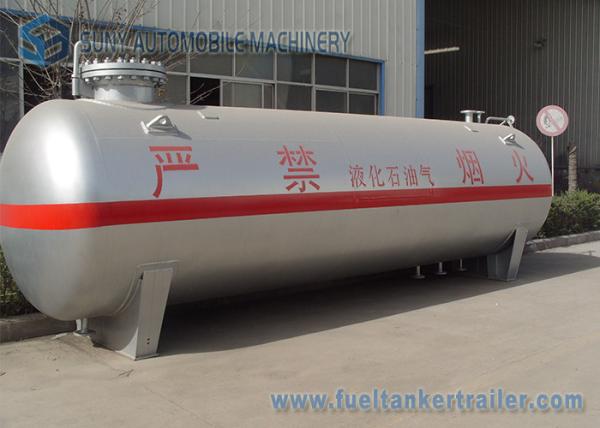

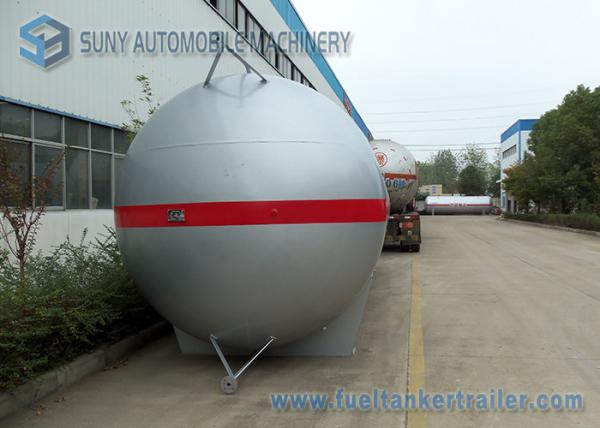

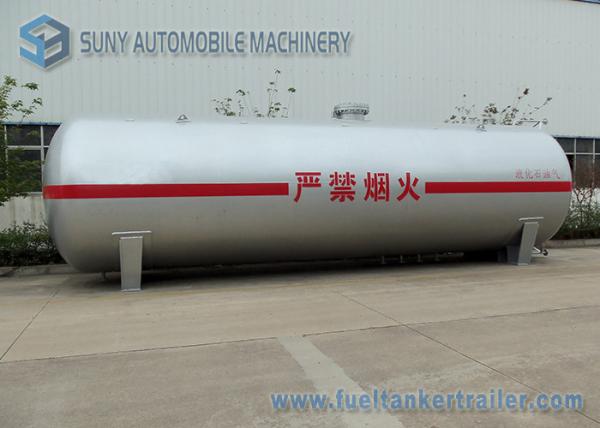

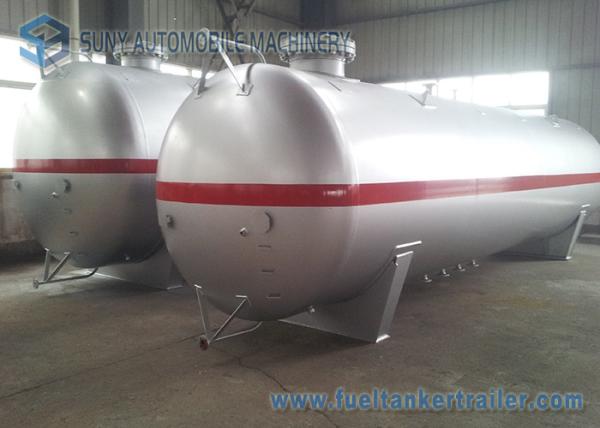

LPG storage tank more details show


5000l LPG Tank Trailer ASME 5M3 5000 liters Lpg Iso Containers

5000l LPG Tank Trailer ASME 5M3 5000 liters Lpg Iso Containers

5000l LPG Tank Trailer ASME 5M3 5000 liters Lpg Iso Containers
