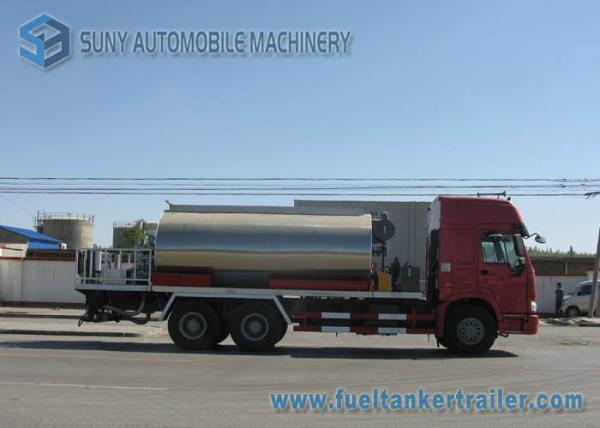

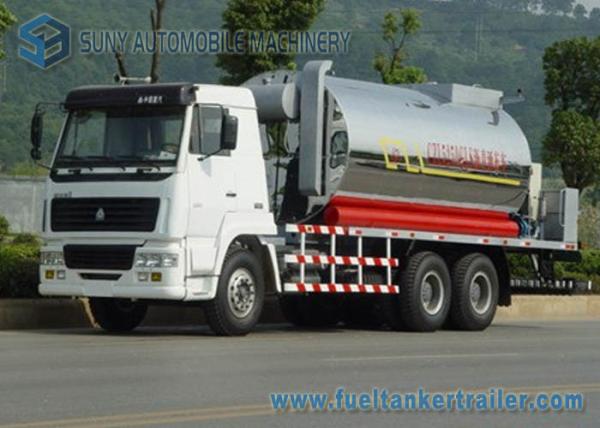

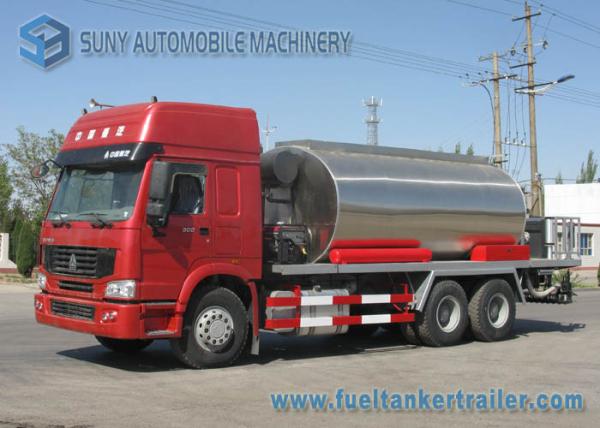

Sinotruck Howo series 6X4 Asphalt Tanker Trailer 10000 L -11000 L 3 Axles 300Hp
Sinotruck Howo series 6X4 Asphalt Tanker Trailer 10000 L -11000 L 3 Axles 300Hp
Sinotruck Howo series 6X4 Asphalt Tanker Trailer 10000 L -11000 L 3 Axles 300Hp
Sinotruck Howo series 6X4 Asphalt Tanker Trailer 10000 L -11000 L 3 Axles 300Hp
Sinotruck Howo series 6X4 Asphalt Tanker Trailer 10000 L -11000 L 3 Axles 300Hp
Sinotruck Howo series 6X4 Asphalt Tanker Trailer 10000 L -11000 L 3 Axles 300Hp
Sinotruck Howo series 6X4 Asphalt Tanker Trailer 10000 L -11000 L 3 Axles 300Hp
Sinotruck Howo series 6X4 Asphalt Tanker Trailer 10000 L -11000 L 3 Axles 300Hp
Specifications
Brand Name :
SUNY
Model Number :
SY5111LQ
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD60000 /set- USD100000/set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
200 set per month
Delivery Time :
15-25 working days
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Chassis brand/ model :
HOWO
Tank capacity :
10000 L - 11000 L
Wheel base :
4600+1350,4575+1400 mm
Engine :
WD615.97E
G.V. W :
25000 kgs
Tank material :
Q235
Axles No. :
3
Drive :
6X4
Dimension :
10100×2500×3563,3420 mm
Horspower :
300 hp
Function :
Asphalt distritution
Chassis no. :
ZZ1257M4647C
Description

Dongfeng 4 x 2 8000 L -10000 L Asphalt Distributor Truck Tianjin Cab

Description & application:

1-It is for asphalt distribution for the road construction program.

2-The performance of the truck can achieve to top level of the world. It can work in worse condition.

3-It is very easily to operate with reasonable desgin. And steady and reliable quality ensure the average distribution of the Asphalt.


Competitive Advantage:


1- strong R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different customers’ demand.
2- competitive price ----- based on same product, our price is most competitive

3- strict quality control ---- stable quality for each truck
4- best service ----- we cherish each customer and opportunity.

Dongfeng 4 x 2 8000 L -10000 L Asphalt Distributor Truck Tianjin Cab

【TECHNICAL SPECIFICATION】
G.V.W(Kg) 25000 TANK CAPACITY(m3) 10.5
RATED LOAD(Kg) 9000 OVERALL DEMENSIONS(mm) 10100×2500×3563,3420
CURB WEIGHT(Kg) 15870 ALLOWABLE PASSERGERS IN CAB 2
APPROACH/DEPARTURE ANGLE(°) 16/10 FRONT/REAR OVERHANG(mm) 1500/2650,1500/2625
NO. OF AXLES 3 WHEEL BASE(mm) 4600+1350,4575+1400
AXLES CAPACITY(Kg) 7000/18000 MAX. SPEED(Km/h) 90
HYDRANLIC PUMP CBQ563-L
PROPORTIONAL VALVE EFBG-03-160-HF(TAIWAN) ASPHALT PUMP QGB950
BURNER RIELLO HEAT TRANSFTER OIL PUMP 40-25-160
GENERATOR 5.5KW
OTHERS

1-Transport medium is liquid asphalt with density 900KGS/M3.

2-Elliptical tank dimensions(length/major axis/minor axis)(mm)::4500/2100/1600

3-Thickness of tank thermal insulation: 100mm

4-The cab can be chosen by different chassis.

5-Protective material: carbon steel Q235A.

6-Connection way: welding connection.
【CHASSIS SPECIFICATION】
CHASSIS MODEL ZZ1257M4647C CHASSIS TYPE For truck(class 2)
BRAND HOWO MANUFACTURER Sinotruk group jinan truck co., LTD
DEMENSIONS(mm) 9895×2496×2958,3563 NO. OF TYRES 10
APPROACH/DEPARTURE ANGLE(°) 16/18 TYRE SPECIFICATIONS 11.00-20,12.00-20 16PR11.00R20 16PR,12.00R20 14PR
NO. OF SPRING PLATE 10/12,4/12,10/- FRONT TRACK BASE(mm) 2022,2041
FUEL TYPE Diesel REAR TRACK BASE(mm) 1830/1830
EMISSION STANDARD GB17691-2005 GB Ⅲ,GB3847-2005
ENGINE TYPE ENGINE MANUFACTURER DISPLACEMENT(ml) POWER(Kw)
WD615.97E Sinotruk group co., LTD 9726 221
Sinotruck Howo series 6X4 Asphalt Tanker Trailer 10000 L -11000 L 3 Axles 300Hp
