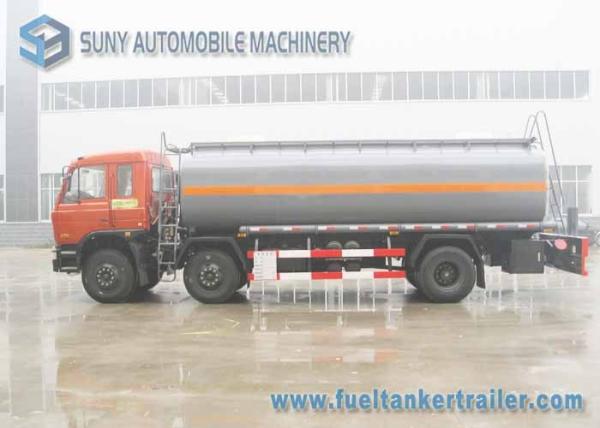

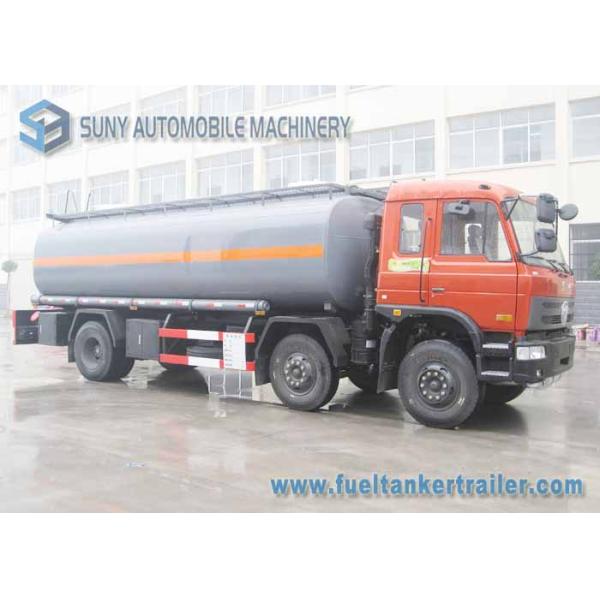

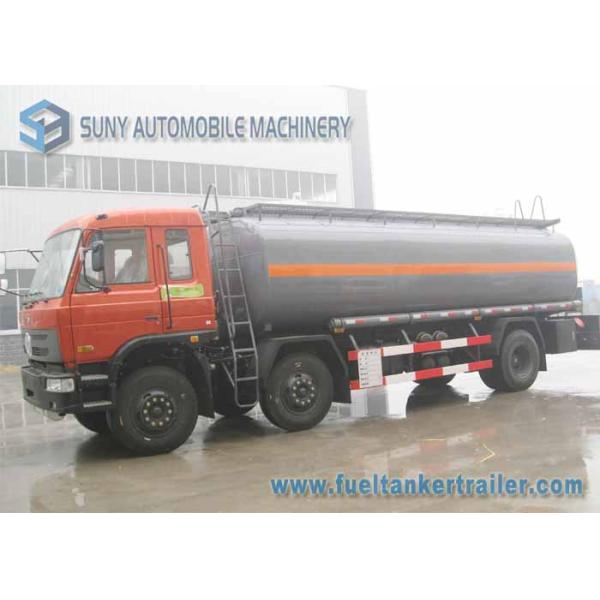

Dongfeng 6x2 Liquid Chemical Tanker Truck 25000 L Pentane Tank Truck
Dongfeng 6x2 Liquid Chemical Tanker Truck 25000 L Pentane Tank Truck
Dongfeng 6x2 Liquid Chemical Tanker Truck 25000 L Pentane Tank Truck
Dongfeng 6x2 Liquid Chemical Tanker Truck 25000 L Pentane Tank Truck
Dongfeng 6x2 Liquid Chemical Tanker Truck 25000 L Pentane Tank Truck
Dongfeng 6x2 Liquid Chemical Tanker Truck 25000 L Pentane Tank Truck
Dongfeng 6x2 Liquid Chemical Tanker Truck 25000 L Pentane Tank Truck
Dongfeng 6x2 Liquid Chemical Tanker Truck 25000 L Pentane Tank Truck
Specifications
Brand Name :
SUNY
Model Number :
SY5250GHG
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 45,800~ 80,000 FOB Shanghai
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 units/per year
Delivery Time :
25~35 days after we get the deposit
Packaging Details :
Ro-ro shipping / Bulk cargo shipping / Container shipping / SKD / CKD / etc.
Tank capacity :
250000 L = 25 m³
Tank material :
carbon steel
Tank thickness :
5 mm
Whole trailer dimension :
10800×2490×3500mm
Wheelbase :
1950+4550 mm
Transport medium :
Pentane
Description

Dongfeng 6x2 Chemical Liquid Tanker Truck 25000 L Pentane Tank Truck

Description:

1. Chemical tTank thickness: 2mm at least (according to the design or your required)

2. Design work pressure (MPa): - 0.1 ~ 9.9 MPa (According to the China national standard, breakthroughs in the foregoing measurements are allowed in special cases)

3. chemical liquid tank material: Stainless steel, SUS304, 316L etc. with insulating material or not.

4. General accessories (If required): Manhole, CIP, respirator, sight glass, mixing (Top side or bottom)

The scientific long axis and short axis design for tank body meets the hydrokinetics requirements and ensures the safety of vehicles. And we can design the tank according your trailer (truck) size.

5. Design work temperature: - 70~ + 350 ℃

Competitive Advantage:

Our chemical liquid tank series with a complete set of service from quota, design, manufacture and installation, according to your requirements we can design by your plan, or manufacture by your drawing, guarantees inner quality and safety, good looking appearance and function by introducing international advanced large-sized equipment of pulse plasma arc welder and auto polishing machinery and cooperating with international famous finished equipment making company. More detailed information will available on your requirement.

Dongfeng 6x2 Chemical Liquid Tanker Truck 25000 L Pentane Tank Truck

Model: SY5250GHG

Vehicle Description
Vehicle type Pentane tank truck
Drive form 6*2
Brand Dong Feng
Overall dimension (mm) 10800×2490×3500mm
G.V.W (kg) 24900
Curb weight (kg) 10905
Design Load capacity (kg) 13800
Chassis Description
Chassis model EQ5253GFJ3
Axle load (kg) 6600/6800/11500
F/R overhang (mm) 1205/2345
Approach/Departure angle (°) 32/15
Front tread (mm) 1940/1940
Rear tread (mm) 1860
Spring plate 10/10/12+9
Wheelbase (mm) 1950+4550
Tyre size & quantity 10.00-20 nylon tire, 8+1 pcs
Cab One and half row, optional AC
Gear box 8 speed
Engine Description
Engine model B190 33
Displacement(ml) 5900
Max power(kw) 140
Horsepower(hp) 190
Emission standard Euro 3
Type of fuel Diesel
ABS system Optional
Tank Description
Tank outer dimension (mm)

8100*2400*1650 mm

(Final accordance with factory design)
Tank thickness (mm) 6
Topping of the tank With guardrail, and anti rollover bar.
Valves

1-pc DN100 stainless steel air bottom valve with pneumatic switch.

Through bottom valve, left and right, each side with 1-pc DN80 plastic ball valve outlet.

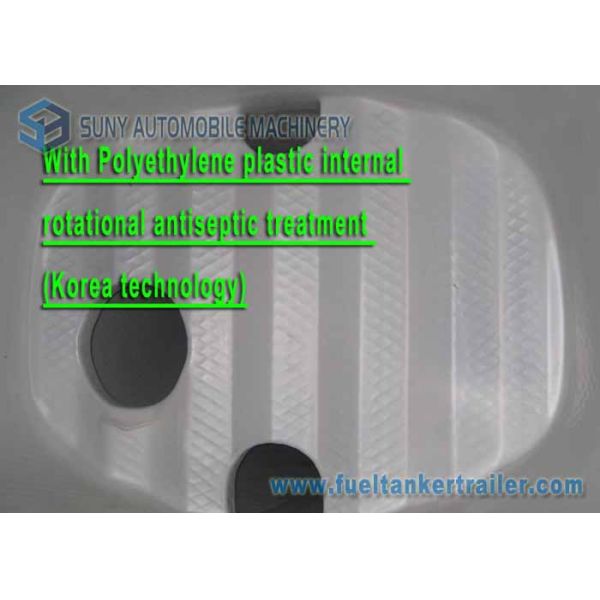

Inner of the tanker With Polyethylene plastic internal rotational antiseptic treatment (Korea technology)
Outer painting With gray color anti corrosive paint.

Dongfeng 6x2 Liquid Chemical Tanker Truck 25000 L Pentane Tank Truck

Dongfeng 6x2 Liquid Chemical Tanker Truck 25000 L Pentane Tank Truck

Dongfeng 6x2 Liquid Chemical Tanker Truck 25000 L Pentane Tank Truck
