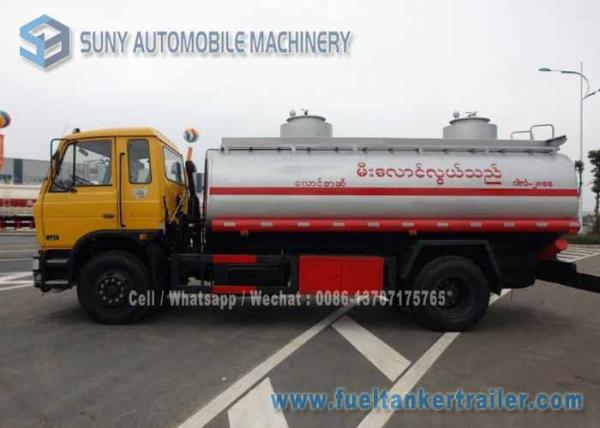

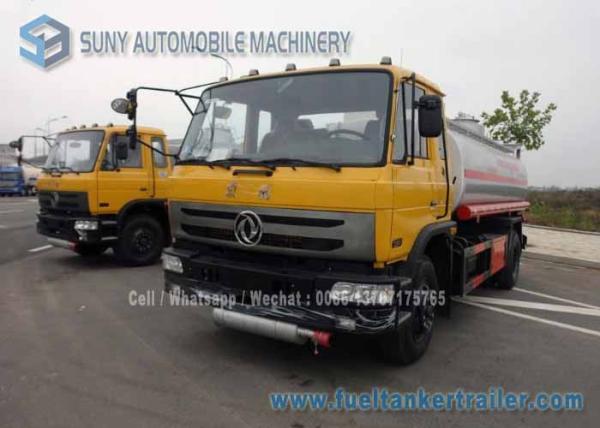

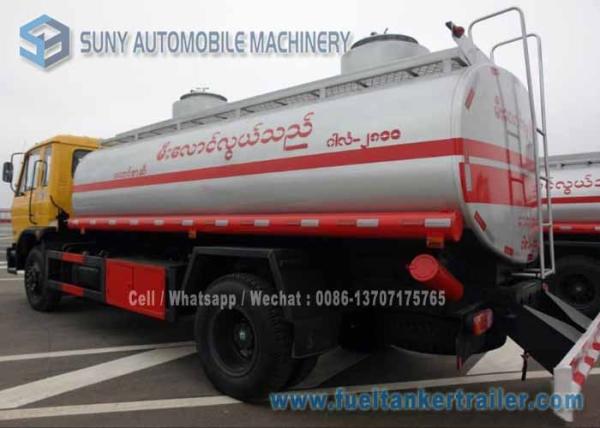

15000 L 4X2 Refuel Tanker Truck Oil Tank Trailer Mild Steel 190 hp Diesel
15000 L 4X2 Refuel Tanker Truck Oil Tank Trailer Mild Steel 190 hp Diesel
15000 L 4X2 Refuel Tanker Truck Oil Tank Trailer Mild Steel 190 hp Diesel
15000 L 4X2 Refuel Tanker Truck Oil Tank Trailer Mild Steel 190 hp Diesel
15000 L 4X2 Refuel Tanker Truck Oil Tank Trailer Mild Steel 190 hp Diesel
15000 L 4X2 Refuel Tanker Truck Oil Tank Trailer Mild Steel 190 hp Diesel
Specifications
Brand Name :
SUNY
Model Number :
SY5153GYY
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 31,500~ 45,000 FOB Shanghai
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 units/per year
Delivery Time :
25~35 days after we get the deposit
Packaging Details :
Ro-ro shipping / Bulk cargo shipping / Container shipping / SKD / CKD / etc.
Vehicle type :
Fuel Tanker Truck
Engine model :
ISB190 40 (EURO 4 emissioin)
Chassis model :
EQ1141KJ
Tank material :
carbon steel
truck wheel base :
4500 mm
Tyre :
10.00-20, 6+1 pieces
Oil tank volume :
15000 L = 15 m3
Type of fuel :
Diesel / Gasoline
Description

15000 L 4X2 Fuel Tanker Truck Mild Steel 190 hp Diesel Refuel Tanker Truck​

Description:


Oil Tank truck or trailer could opting Aluminum, Stainless stee, Carbon steel.


We fabricate all differernt tank series products, eg: fuel tank container, only fuel tanker, oil tank truck, chemical tanker truck. bitumen tank, vacuum tanker, LPG tanker, water tanker, milk tanker, and all different kindly tank truck trailer.

Competitive Advantage:


Speciality: tank body can be divided into several compartments with wave resistant board inside to reduce liquid shock and increase tank body strength and stability.

Gear pump, self-suction fuel pump, chemical agent pump, numeral control refueler, the funtion for loading and discharge through are not throught gauge are available. Rear tank has 2-3 discharge vent.
Divided by gross weight: Mini fuel tank truck, light fuel tank truck, middle sizes fuel tank truck, heavy duty fuel tank truck.


Divided by wheel:single axle fuel tank truck, double axles fuel tank truck, 4X4 fuel tank truck, 8X4 fuel tank truck, fuel tank semi-trailer.

Fuel Tank series:

-----Fuel tanker truck (all different traction model, 4X2,4X4, 6X2, 6X4, 8X4, 8X8, 10X4)

-----Refuel tanker

-----Edible oil tank truck

-----Insulation oil tanker truck

-----Crude transport tank truck

-----Fuel tanker full trailer

-----Fuel tanker semi trailer

-----Mild steel oil tanker

-----Stainless steel oil tank

-----Aluminum fuel tanker

-----Fuel tanker container

-----Mobile fuel tanker refueling station

-----Horizontal storage fuel tank

-----RHD fuel tank truck

15000 L 4X2 Fuel Tanker Truck Mild Steel 190 hp Diesel Refuel Tanker Truck

TRUCK SPECIFICATION
Product Model SY5153GYY DFAC 4*2 fuel tank truck
Overall dimensions (L*W*H) 7900*2495*3050 mm
G.V.W Approx 14900 kg
Net weight Approx 7500 kg
load Approx 10500 kg
Approach/Departure angle 20/12 °
F/R suspension 1205/2195 mm
Axle load 5000/9900 kg
Max speed 90 km/h
Allowable passengers 2+1
Cab type Flat top. one row and a half. Turning cab.
Cab inner Optional air condition and warm air
CHASSIS SPECIFICATION
Chassis model EQ1141KJ
No. of axle 2
Wheel base 4500 mm
No. of tire & specification 10.00-20.(optional 10.00R20)
No. of leaf spring pieces 8/10+8
F/R tread 1940/1860 mm
Tractions 4*2
Braking system Air braking.
Operation control system Power steering
Electric system 24 V
ENGINE SPECIFICATION
Engine model (emission standard) B190 40 (EURO 4)
Manufacturer Cummins Engine
Fuel type Diesel
No. of cylinder 6
Cylinder arrangement form In-line engine
House power 190 hp / 140 kw
Exhaust 5900 ml
Max torque 640 N.m
Max torque speed 1500 r/min
Rated power speed 2500 RPM
Engine type In line 6-cylinder with electric preheating devices and high power 6.6 kw starter, a radical improvement in the engine cold start.
Intake Forms Turbocharged
TRANSMISSION
Transmission model DFAC 6 Transmission type Manual
No. of reverse gear 1 No. of forward gears stalls 6
FUEL TANK TRUCK EQUIPMENTS AND FUNCTIONS
Tank capacity 12000L ~ 15000L (12 m3 ~ 15 m³)
Tank dimensions (L*W*H) 5300*2200*1250 mm
Tank material Q235A (optional: stainless steel / aluminum / plastic lining / rotational modeling)
Tank shape Square round / Cylinder / Ellipse
Manhole DN500 (optional few manhole, by the branch warehouse, EURO standard)
Pump Equipped with the specific pump to suck and discharge the oil automatically.
Optional equipments

Computer control injector / Fuel hose / Fuel gun / Flow meter.

 Tank can be separated to several unattached small tanks to fill different oil.

This fuel truck is one sample, If it can not you’re your requirement, Please contact S-K-Y-P-E Zengertruck
