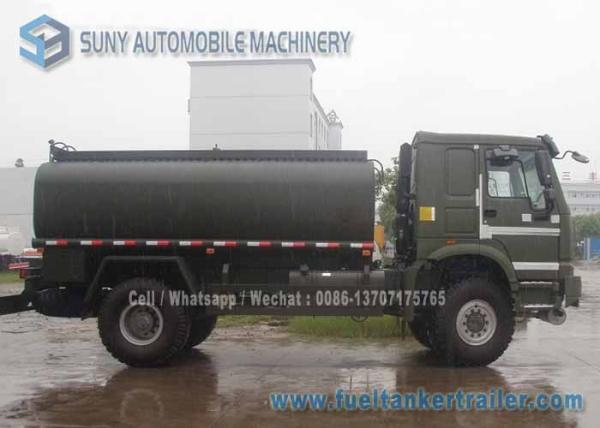

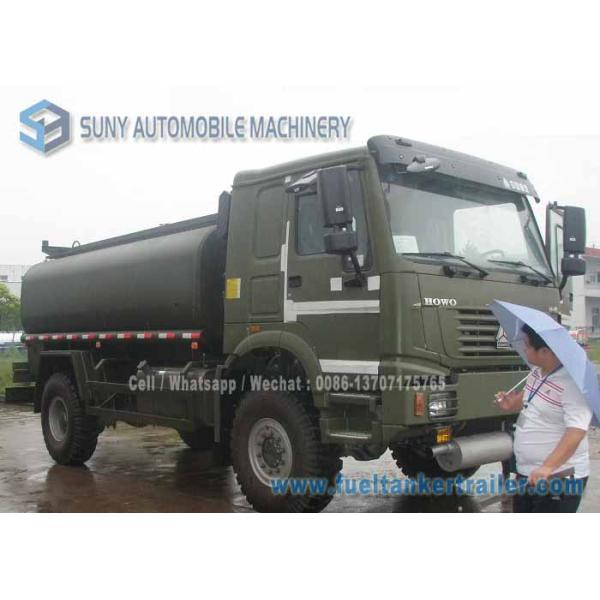

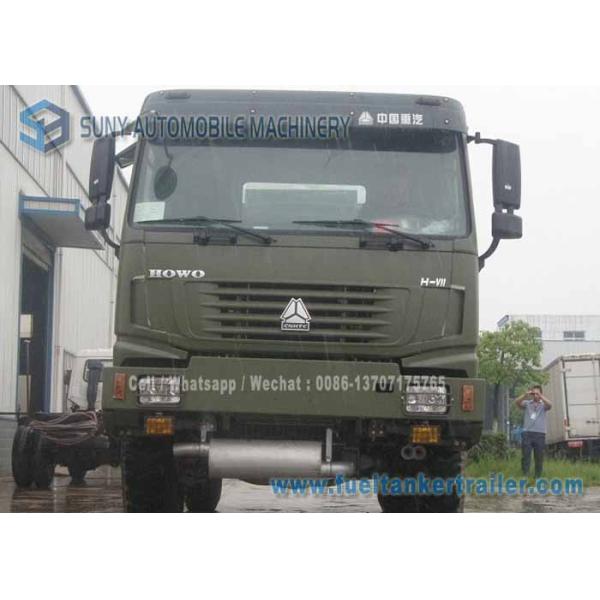

SINOTRUK HOWO 4X4 Chemical Tanker Truck 12000 L Oil Tanker All Wheel Drive
SINOTRUK HOWO 4X4 Chemical Tanker Truck 12000 L Oil Tanker All Wheel Drive
SINOTRUK HOWO 4X4 Chemical Tanker Truck 12000 L Oil Tanker All Wheel Drive
SINOTRUK HOWO 4X4 Chemical Tanker Truck 12000 L Oil Tanker All Wheel Drive
SINOTRUK HOWO 4X4 Chemical Tanker Truck 12000 L Oil Tanker All Wheel Drive
SINOTRUK HOWO 4X4 Chemical Tanker Truck 12000 L Oil Tanker All Wheel Drive
Specifications
Brand Name :
SUNY
Model Number :
SY5167GYY
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 39,500~ 60,000 FOB Shanghai
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 units/per year
Delivery Time :
25~35 days after we get the deposit
Packaging Details :
Ro-ro shipping / Bulk cargo shipping / Container shipping / SKD / CKD / etc.
Vehicle type :
Fuel Tanker Truck
Engine model :
WD615.62 (EURO 2 emissioin)
Chassis model :
ZZ2167M
Tank material :
carbon steel
truck wheel base :
4200 mm
Tyre :
11.00-20, 6+1 pieces
Oil tank volume :
12000 L = 12 m3
Type of fuel :
Diesel / Gasoline
Description

All Wheel Drive SINOTRUK HOWO 4X4 Fuel Tank Truck 12000 L Oil Tanker

Description:


The SUNY 4X4 oil tank truck, Tank and frame opting mild steel, SS304, AA5083/5454 aluminum, material.
Our factories are main fuel tanker turck manufacturer, specialized in making customized fuel tank transporter, oil tank truck, chemical tanker truck.

Divided by chassis brand: Howo serials fuel tank truck, Benz serials fuel tank truck, Sinotruck serials fuel tank truck, ISUZU serials fuel tank truck, JAC serials fuel tank truck, CAMC serials fuel tank truck, Changan fuel tank truck, Wuling fuel tank truck, Dongfeng serials fuel tank truck, Jiefang serials fuel tank truck, Auman serials fuel tank truck, Shaanxi auto serials fuel tank truck, Steyr serials fuel tank truck.

Competitive Advantage:

Gauge: self-suction pump, gear pump, chemical agent pump, numeral control refueler, the funtion for loading and discharge through are not throught gauge are available. Rear tank has 2-3 discharge vent.
Divided by gross weight: Mini fuel tank truck, light fuel tank truck, middle sizes fuel tank truck, heavy duty fuel tank truc


Speciality: tank body can be divided into several compartments with wave resistant board inside to reduce liquid shock and increase tank body strength and stability.

k.
Divided by wheel:single axle fuel tank truck, double axles fuel tank truck, 4X4 fuel tank truck, 8X4 fuel tank truck, fuel tank semi-trailer.

All Wheel Drive SINOTRUK HOWO 4X4 Fuel Tank Truck 12000 L Oil Tanker

Fuel Tank Truck Model SY5167GYY SINOTRUCK HOWO 4x4 fuel tanker truck
Cabin / Passenger Capacity

One and half row Seat,HW76 cab, tiltable, without air conditioner (opting),

2+1 passenger. Opting narrow cabin HW70
Chassis Model ZZ2167M4327
Overall dimensions 8500*2496*3340 mm
G.V.W 16000 kg
Net weight 8120 kg
Design load 15000 kg
Drive type 4X4
Suspension F/R 1085/2125 mm
Wheelbase 4300 mm
Number of axles 2
Axle-load 6000/10000 kg (one rear drive axle )
Approach/Departure Angle 31/15°
Number of Spring leafs 9/12
TrackF/R 2041/1830 mm

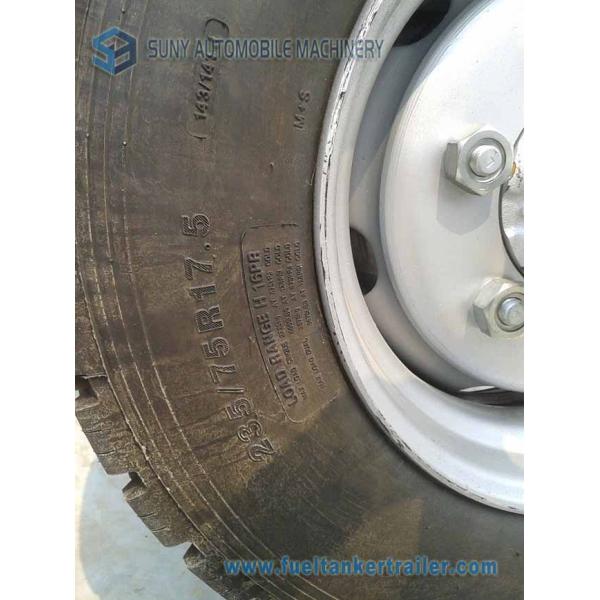

Tire ( No. & specification) 11.00-20, 6pcs+1pc (opting vacuum tire or radial tire, off road tire)
Max speed (Km/h) ≥ 100 km/h
Brake system Pneumatic braking
Steering ZF8098 Steering
Transmission HW15710, Mechanical 10 forward + 2 reverse
Engine Engine model WD615.62 (EURO 2 emission) optional EGR or EURO 3
Type of fuel diesel
Power 196kw ( 266 hp ) optional 290 hp
Exhaust 9726 ml
Fuel Tank Tank capacity 12000 Liters = 12 m3
Tank shape Oval shape.
Fuel tanker size 4900*2300*1400mm (12 m3)
Tank material Mild steel / stainless steel / Aluminum alloy
Standard equipment

With oil pump, oil loading and discharging system. Equipment opting China standard or EURO or US standard..The tank could be separated several compartment.

Also could modify in refuel or transport fuel tank truck.


SINOTRUK HOWO 4X4 Chemical Tanker Truck 12000 L Oil Tanker All Wheel Drive

SINOTRUK HOWO 4X4 Chemical Tanker Truck 12000 L Oil Tanker All Wheel Drive

SINOTRUK HOWO 4X4 Chemical Tanker Truck 12000 L Oil Tanker All Wheel Drive
