Specifications
Brand Name :
SUNY
Model Number :
SY5106LQ
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD40000 /set- USD80000/set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
200 set per month
Delivery Time :
15-25 working days
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Chassis brand/ model :
Dongfeng/ EQ1160GKJ1
Tank capacity :
6000 L - 8000 L
Horse Power :
190 hp
Wheel base :
3950 mm
Engine :
ISB190 40
G.V. W :
16000 kgs
Tank material :
Q235
Axles No. :
2
Drive :
4x2
Function :
Asphalt distritution
Dimension :
7760X 2500X 2880
Description

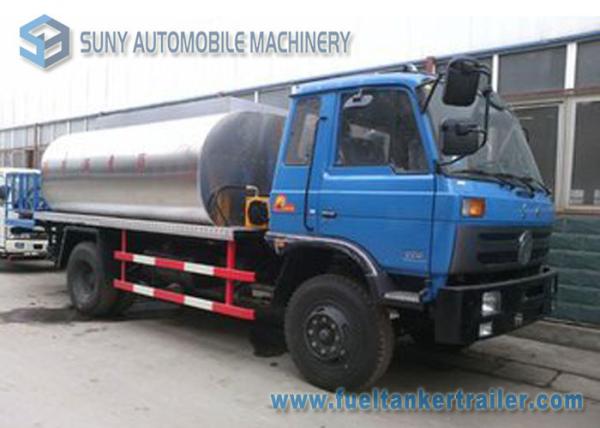

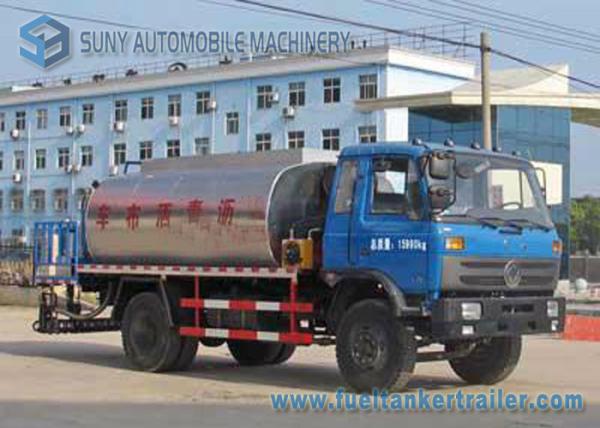

Dongfeng 2 Axles 7000 L -8000 L Asphalt Distributor Truck 190hp

Description & application:

1-It is easy to operate by our reasonable desgin. In addition, steady and reliable quality ensure the average distribution of the Asphalt.

2-It is for asphalt distribution in the road construction.

3-The performance of the truck can achieve to top level of the world. It can work under bad condition.


Competitive Advantage:

1- strict quality control ---- stable quality for each truck
2- powful R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different countries’ demand.
3- competitive price ----- based on the same product, we believe our price is most competitive
4- best service ----- we cherish each customer and opportunity so we provide best service.

Dongfeng 2 Axles 7000 L -8000 L Asphalt Distributor Truck 190hp

Vehicle Description
Vehicle model Asphalt Distributor Overall dimensions (mm) 7760X2500X2880
GVW (kg) Appro×16000 Fact loading capacity (L) 8000
Mass in working order (kg) Appro×8495 Max. Speed (km/h) 95
Chassis Description
Chassis Model EQ1160GKJ1
Cab Standard cabin with Left hand drive
Color Optional
Allowable person in cab 3
Wheel base (mm) 3950
Front/Rear track base (mm) 1810/1810
Front/Rear overhang (mm) 1250/1900
Number of axles 2
Axle Front axle 5995
Rear axle 10000
Traction system 4x2
Operation control system Power steering
Braking system Full air
Electric system 24V
Transmission Mechanical gear box 5 speeds + one rear
Spring plate 9/10+8
Tire specification 10.00-20,
Tire quantity 6+1
Engine Description
Engine manufacture Dongfeng Cummins
Engine model ISB190 40
Emission standard Euro 4
Exhaust/output 5900
Horse power 190
Up-parts Description
Asphalt tank Outline Dimension (mm) 3750X2350X1550
Asphalt tank Inner Dimension(mm) 3650X2250X1450
Insulating layer thickness (mm) 50
Asphalt tank Total Volume(L) 8000-9000L
Hydraulic pump CBQ550-L
Proportional valve Taiwan EFBG-03-160-HF
Asphalt pump QGB680
Hydraulic motor for asphalt pump 05-110-BD31
Heating System Italian burner Riello
Heat-transfer oil pump 25-25-160
Control System SIEMENS
Generator 5.5KW gasoline engine generator
Number of nozzle 30-39
Spray medium Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt
Spray width(m) 4.5-6
Spray amount(L/m2) 0.2-2
Working Condition: 1,Altitude: 0-4500m
2,Temperature: -350C~+450C
3,Relative humidity: 80%
4,Wind force: ≤8 degree
Dongfeng Asphalt Tanker Trailer 7000 L -8000 L 190hp 3950 mm ISB190 40
