Specifications
Brand Name :
SUNY
Model Number :
SY-SK50
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 35000 ~ 50000 per unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 units per month
Delivery Time :
30 days
Packaging Details :
Bulk, RO-RO, Container, Naked, Waxed before on board
tank design pressure :
1.77Mpa
tank volume :
50000 liters
function :
filling LPG to LPG cylinder
tank material :
Q345R
type :
LPG skid filling station
Description

vwhite Q345R 50M3 LPG skid tation with 5 LPG scale for Africa and Bangladesh

Brief of LPG skid station

LPG skid station , LPG propane gas skid station , also called protable lpg gas station , mobile mobile gas station, gas filling station,lpg gas station, lpg filling station, lpg cycle filling station , lpg gas filling station and so on .

Which is consisted of bracket, lpg gas tank, gas dispenser, pump, flow meter, pipeline system. It can be transport to anywhere to filling for other equipment. The portable lpg gas station we produce is with easy operation, low cost, long service time,etc.

LPG skid plant mainly used to storage and dispense LPG, cooking gas or gas. we can provide 3000L , 5000L , 8000L , 10000L , 12000L, 15000L , 20000L , 30000L, 40000L , 50000L etc.

Quick description of LPG tank plant
(1). LPG tank plant volume : 50000L , 50000liter, 50M3 , 50cbm
(2). LPG skid station design standard : ASME ,China GB150
(3). LPG refilling station design pressure:1.77Mpa
(4). LPG skid refilling plant useful time: 10-20 years

(5). LPG cylinder skid station loading weight : 4.2 T

LPG Refilling plant Series Advantage

Original Price: FOB, CNF/CFR, CIF,DAF

Certificates: CCC, ISO, BV, GJB, CQC ,SGS , ASME

Promptly Delivery: 15-30 days

Excellent After-sale Service and Customization Service

LPG tank skid station specification

Information for LPG tank skid station
GeneralItem NamePortable LPG Gas Station
loading Weight (kg)19950
Tank volume (liters)50000
working MediumLPG (propane) ,0.42 Kg/M3
Gas ScaleRate of flow (m³/min)1.5
Speed (R/m³)730
Motor power(KW)22
Equipmentgas dispenser, gas gun,flow meter, pressure gauge, thermometer,discharge valve,etc

Tank type

III

Working Medium

LPG (propane)

Design Specific Gravity

0.42 Kg/L

Media characteristics

Flammable and explosive

Capacity

50000L

Tank dimension (length*diameter)

L9182*2700mm

Tank weight (nominal)

10640kg

Max payload weight

19950kg

Tank material

Q345R

Barrel design thickness

13.7mm

Head design thickness

13.67mm

Welded joint coefficient

1.0

Design temperature

50 0C

Working temperature

-20~50 0C

Corrosion allowance

1.0 mm

Design pressure

1.77 Mpa

Hydraulic test pressure

2.22 Mpa

Leak test pressure

1.77 Mpa

Heat treatment type

Wholly get rid of tress

Paint

White color, or due to your request

Product standard

China Standard ISO

Standard design and manufacture

1.JB/T4731-2005 < Steel horizontal vessels on saddle supports>
2.GB150-1998<steel pressure vessels>
3.TSG R0004-2009<Supervision regulation on safety technology for stationary pressure vessel>
4.HG20584-1998<technical requirements for fabrication of steel chemical vessels>
5.NB/T47015-2010<welding specification for steel pressure vessels>

Filling accessories for MOBILE SKID LPG STATION
ItemSpecificationQuantity
Hydrocarbon pumpYQB15-51
Anti-static motorMM2JA160MBB1
alarmQJ-D-99F2
Liquid meterL=1800mm DN201
Safety valveA42F-25 DN501
Safety reflux valveAH42F-25 DN251
Check valveH42N-40 DN502
Stop valveJ41N-40 DN5025
J41N-40 DN321
J41N-40 DN254
J41N-40 DN202
J41N-40 DN2010
Pipe safety valveA21F-25 DN151
Discharge pipeL=4M DN50/DN251
Shock tubeL=500MM DN502
Filling gun with pipeL=2M3
ElbowDN652
DN5010
Flange2.5mpa DN651
2.5mpa DN5050
2.5mpa DN321
2.5mpa DN258
2.5mpa DN1520

Electric filling
scale

BSC-1501
Metal padsDN655
DN5080
DN322
DN2510
DN202
DN1530
bolt16*70300
16*55100

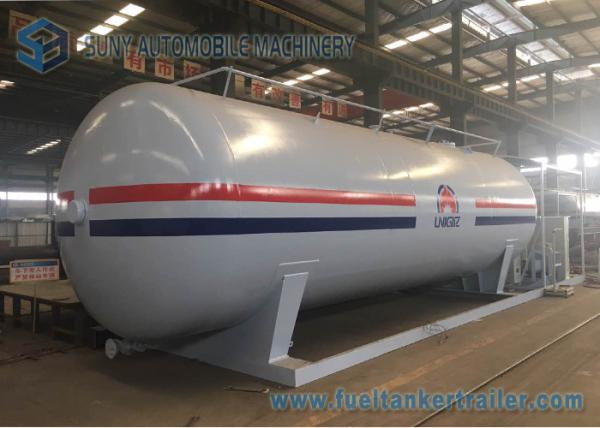

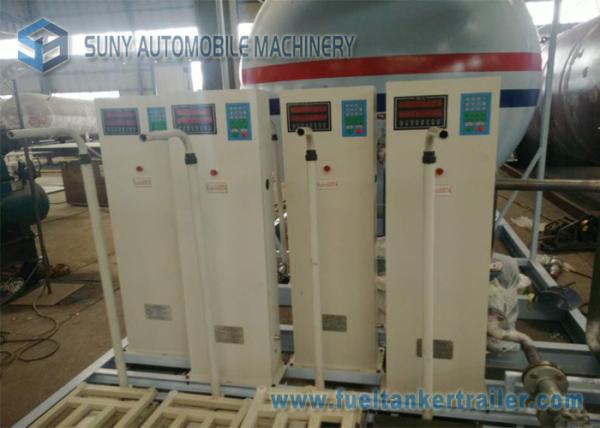

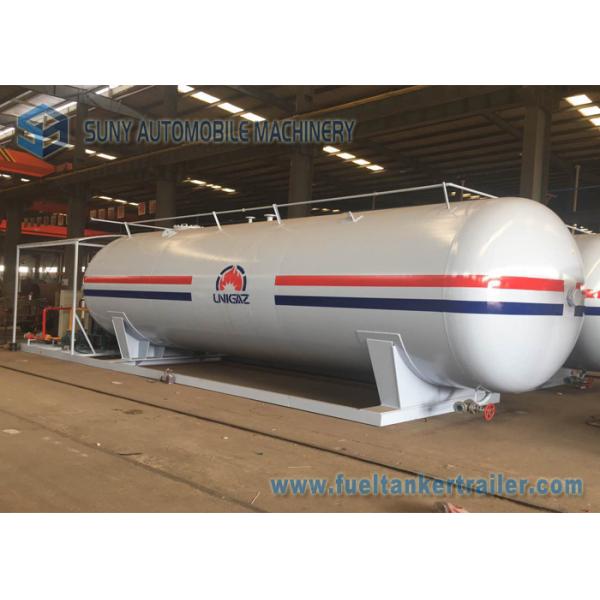

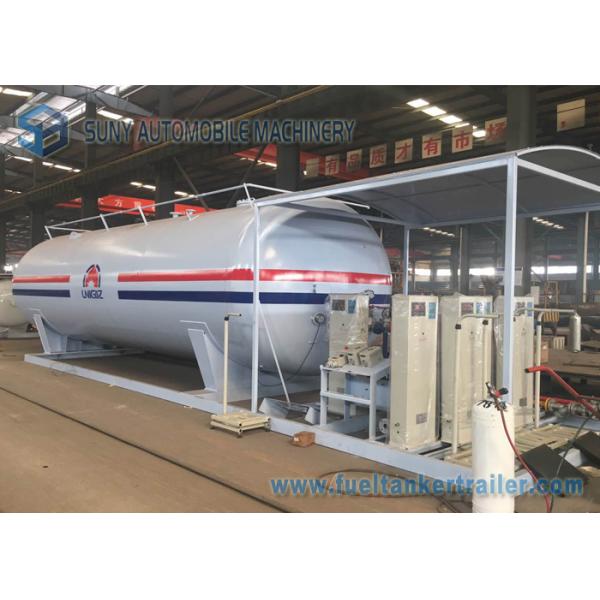

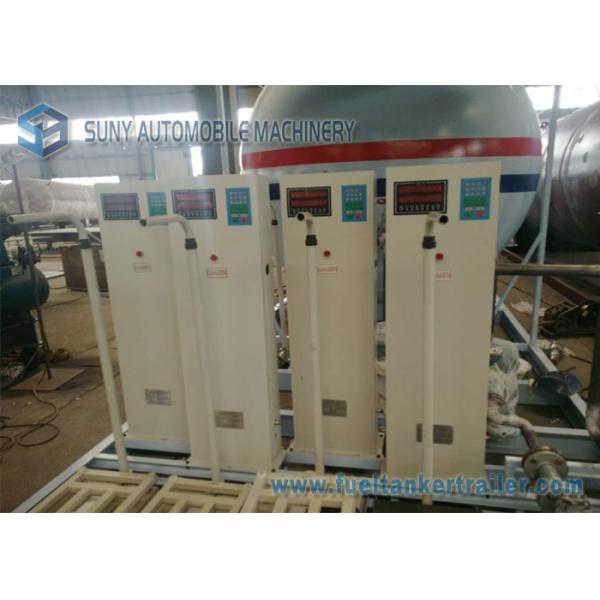

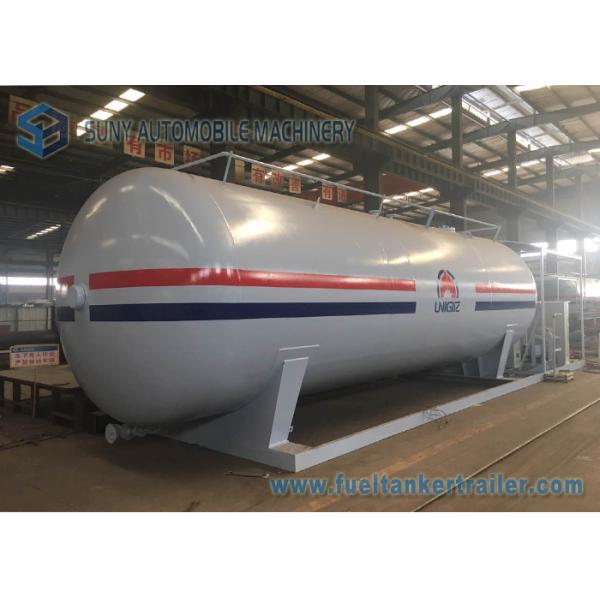

Detailed Images of mobile mobile gas station
